Commercial
Insulated
Pin Terminals

Filter
1151-11-08817
1151-11-08817
1151-11-08817
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1151-20-0313
1151-20-0313
1151-20-0313
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO

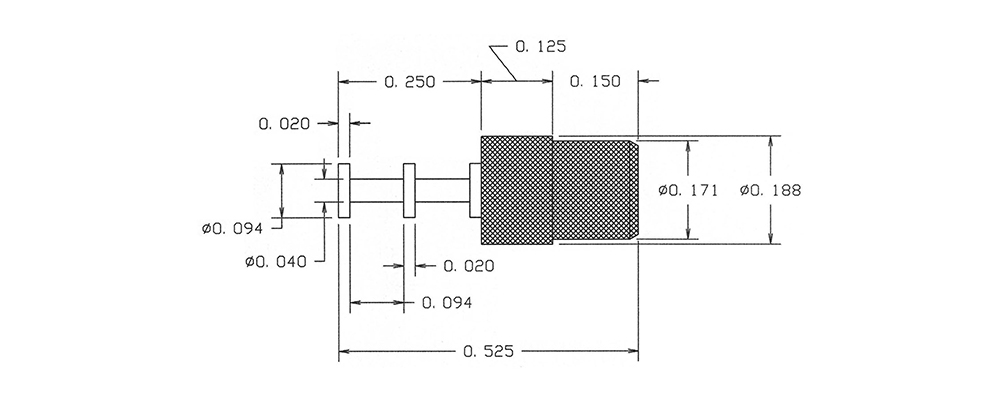

1151-39-0419
1151-39-0419
1151-39-0419
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE White YES
1151-51-0515
1151-51-0515
1151-51-0515
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Green NO
1151R-10-0111
1151R-10-0111
1151R-10-0111
0.415" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Brown NO

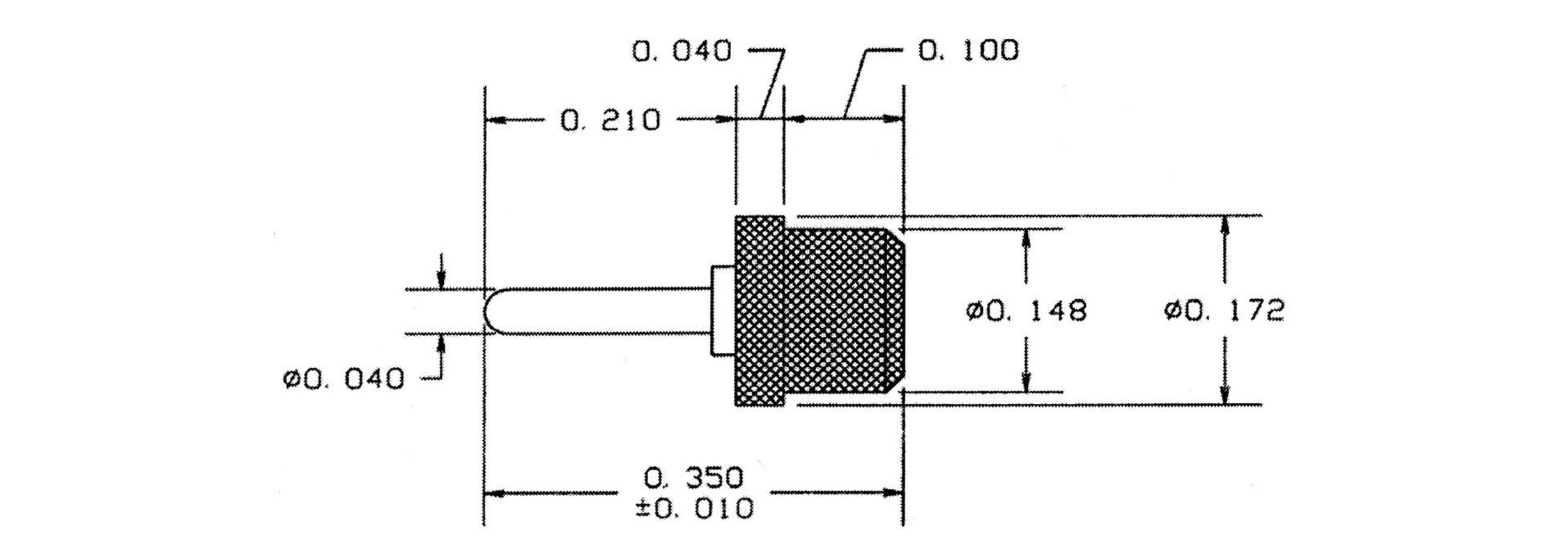

1152-01-0317
1152-01-0317
1152-01-0317
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES

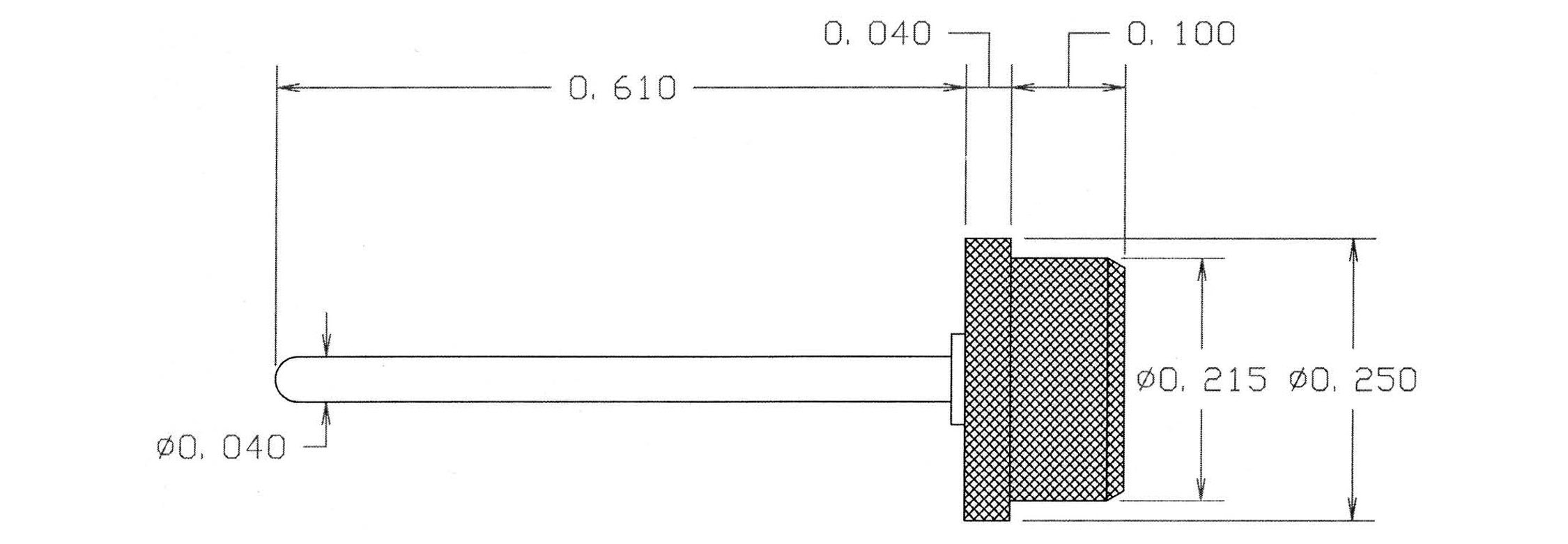

1152-31-04413
1152-31-04413
1152-31-04413
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Orange NO
1152R-17-0519
1152R-17-0519
1152R-17-0519
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE White NO

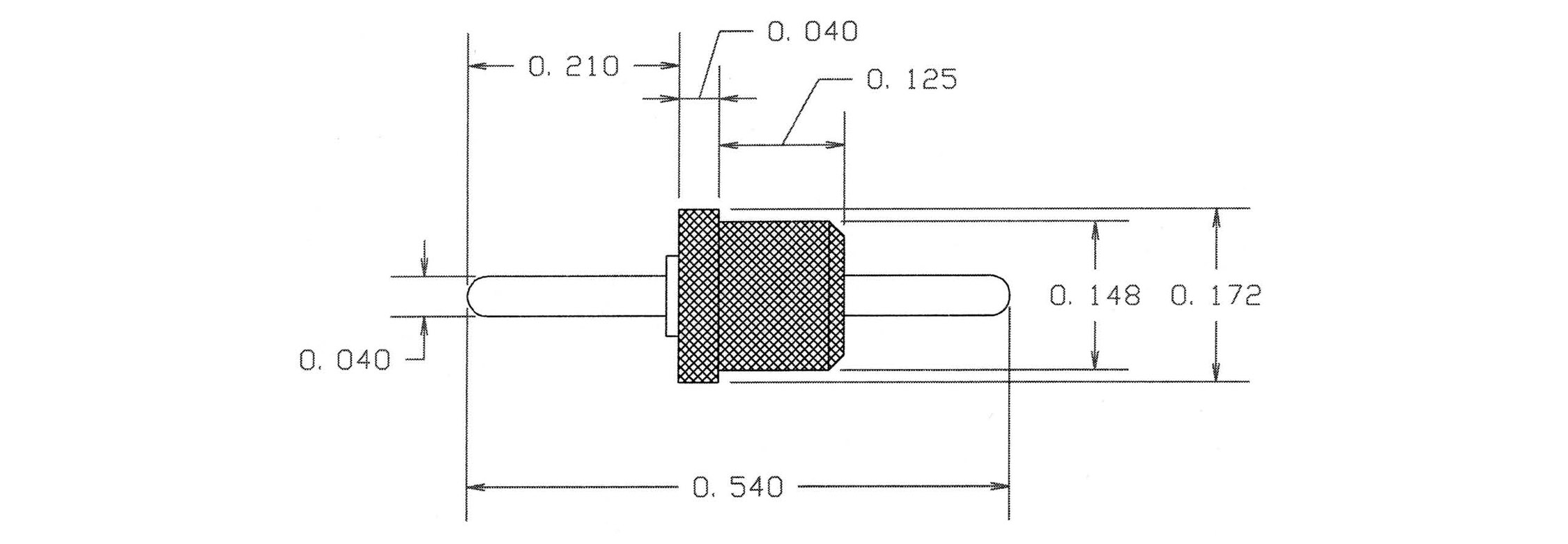

1153-07-0115
1153-07-0115
1153-07-0115
0.540" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES

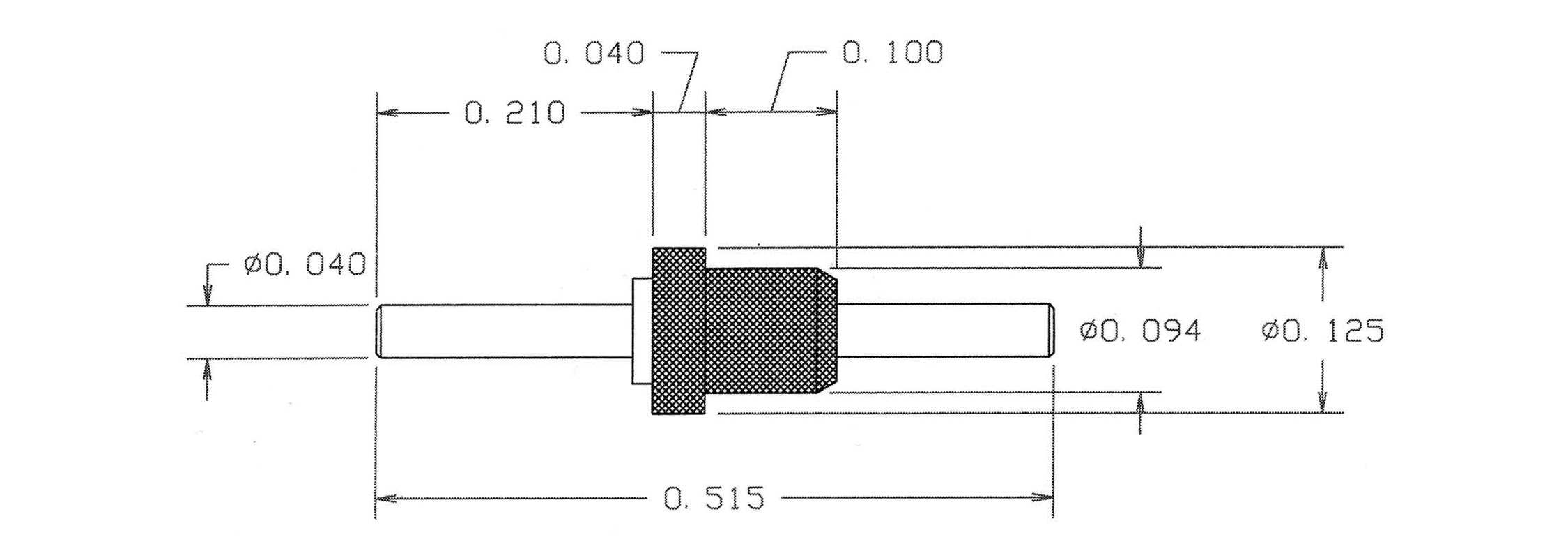

1153-32-0411
1153-32-0411
1153-32-0411
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Brown NO

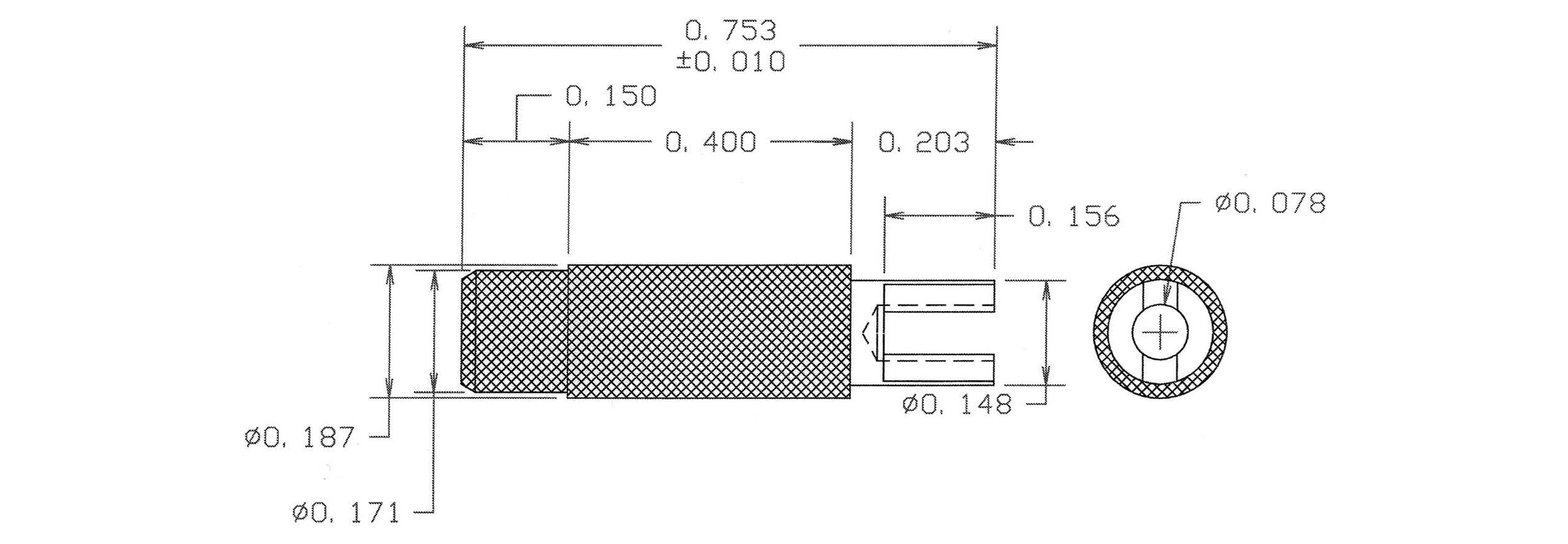

1154-10-04417
1154-10-04417
1154-10-04417
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Violet YES
1154-44-08813
1154-44-08813
1154-44-08813
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO

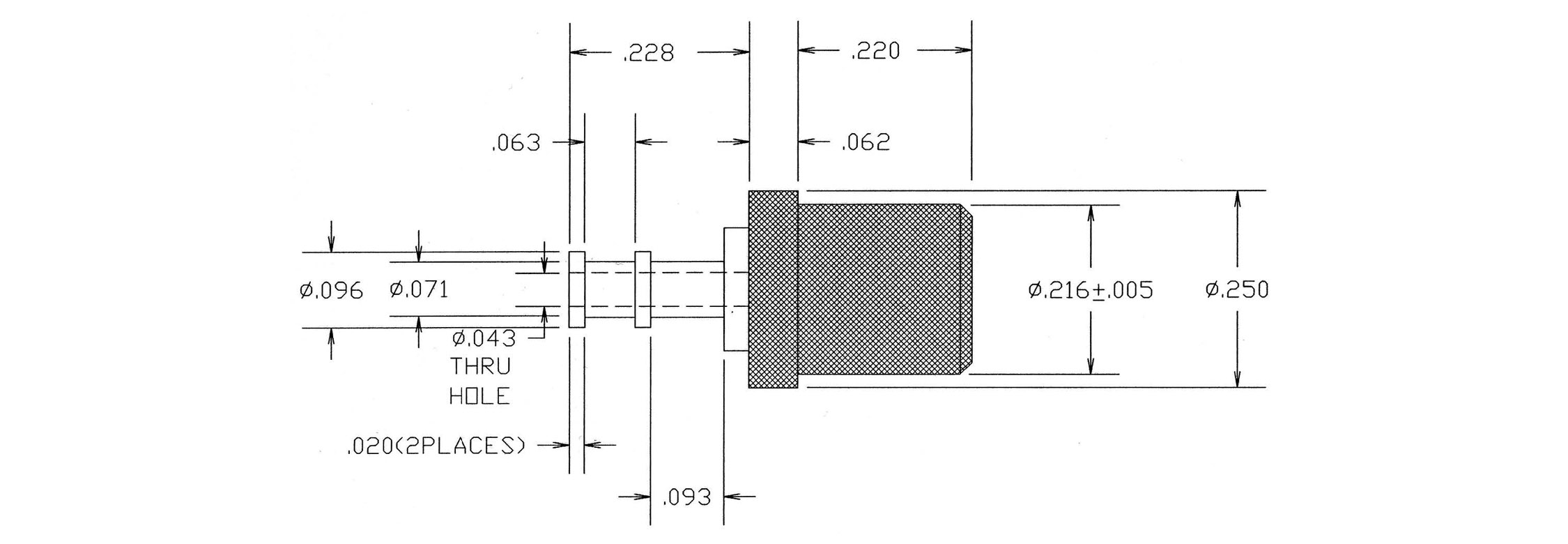

1155-02-0119
1155-02-0119
1155-02-0119
0.510" - - Press Fit Up to 3/16 0.204 Brass Silver - - PTFE White YES

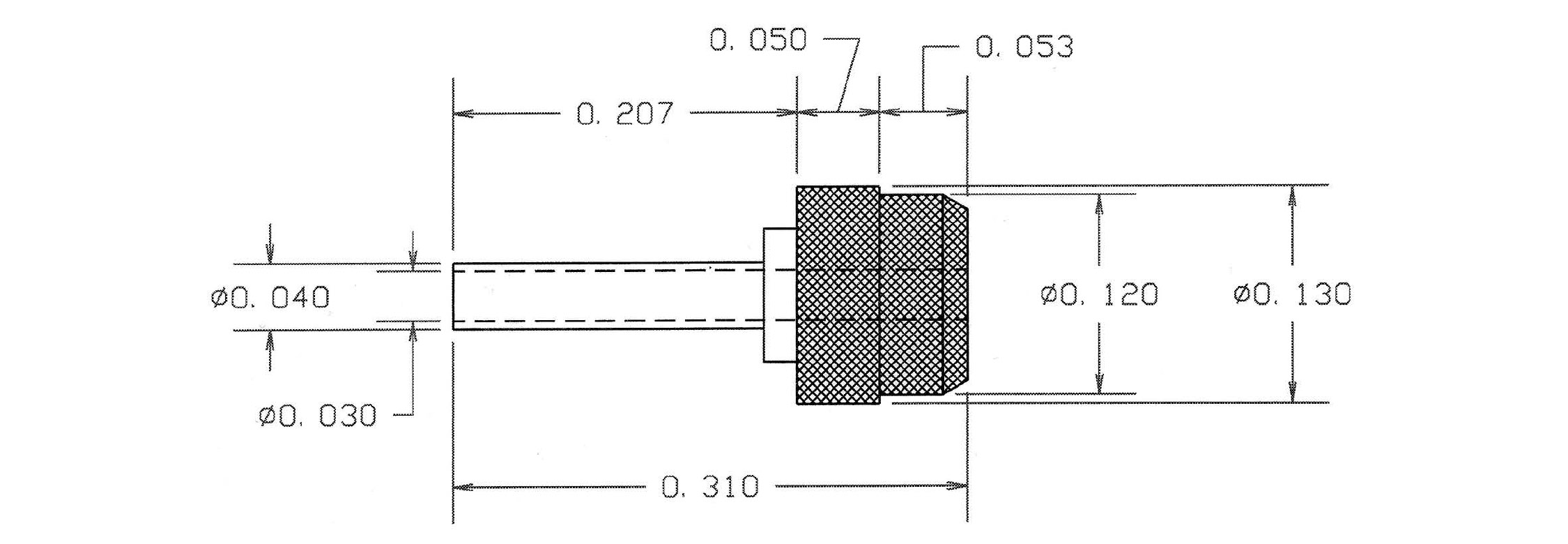

1155-13-0415
1155-13-0415
1155-13-0415
0.310" 0.040 - Press Fit 1/64 0.108 Brass Electro-Tin - - PTFE Green YES

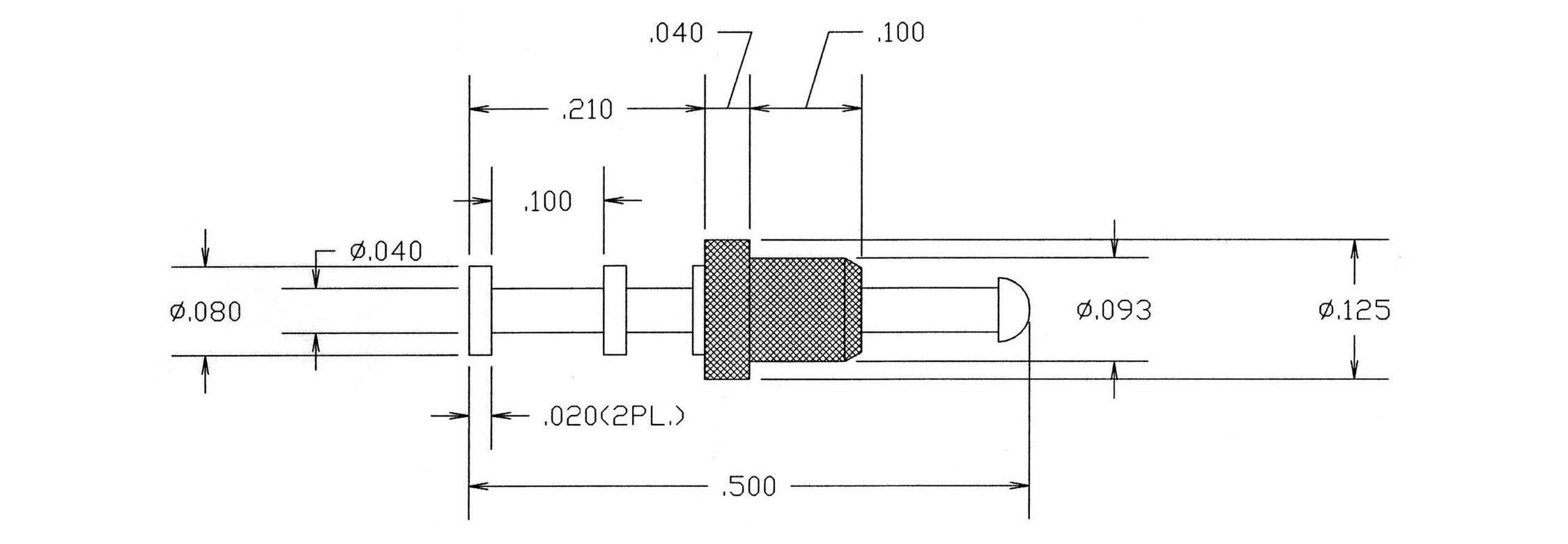

1156-02-0511
1156-02-0511
1156-02-0511
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Brown NO
1156-07-08817
1156-07-08817
1156-07-08817
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

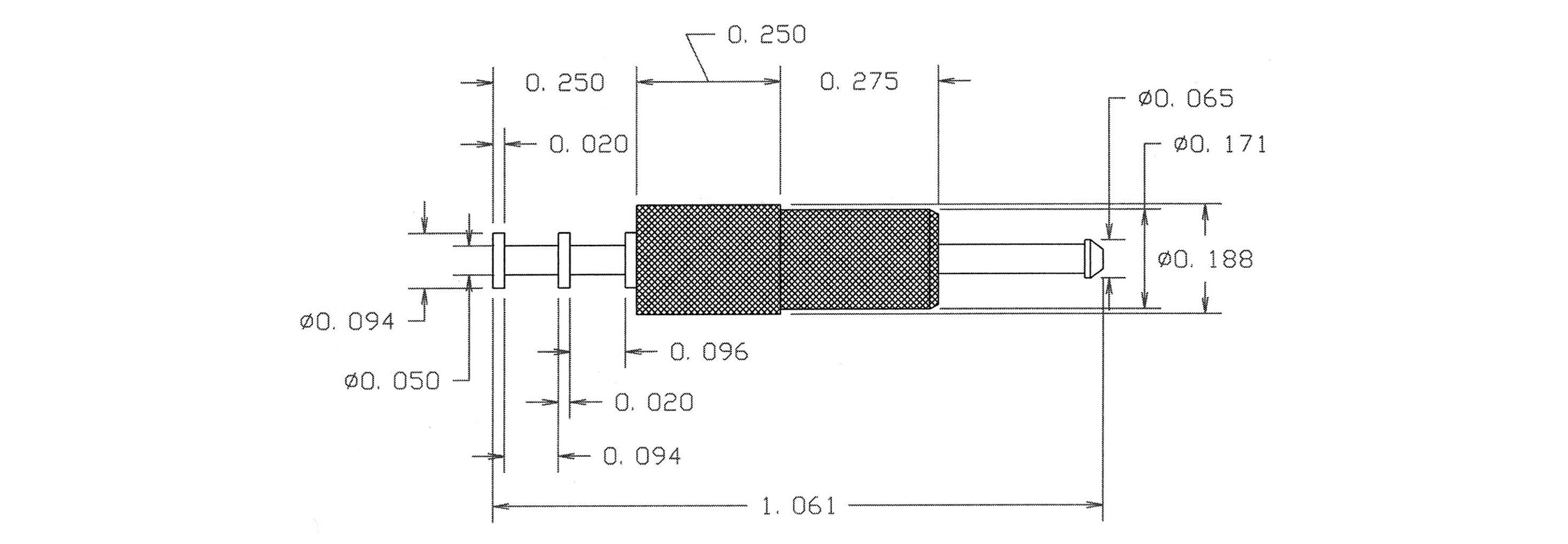

1156-15-0313
1156-15-0313
1156-15-0313
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Gold - - PTFE Orange NO

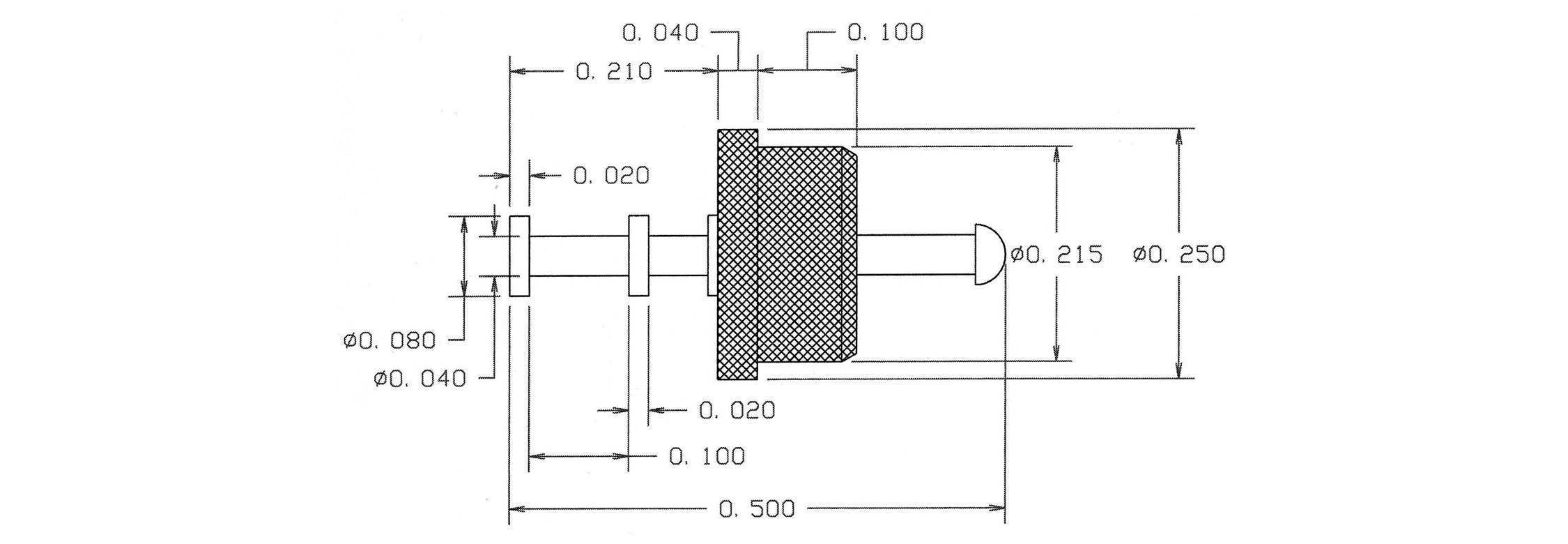

1156-19-0419
1156-19-0419
1156-19-0419
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE White YES
1156R-01-0515
1156R-01-0515
1156R-01-0515
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Green NO

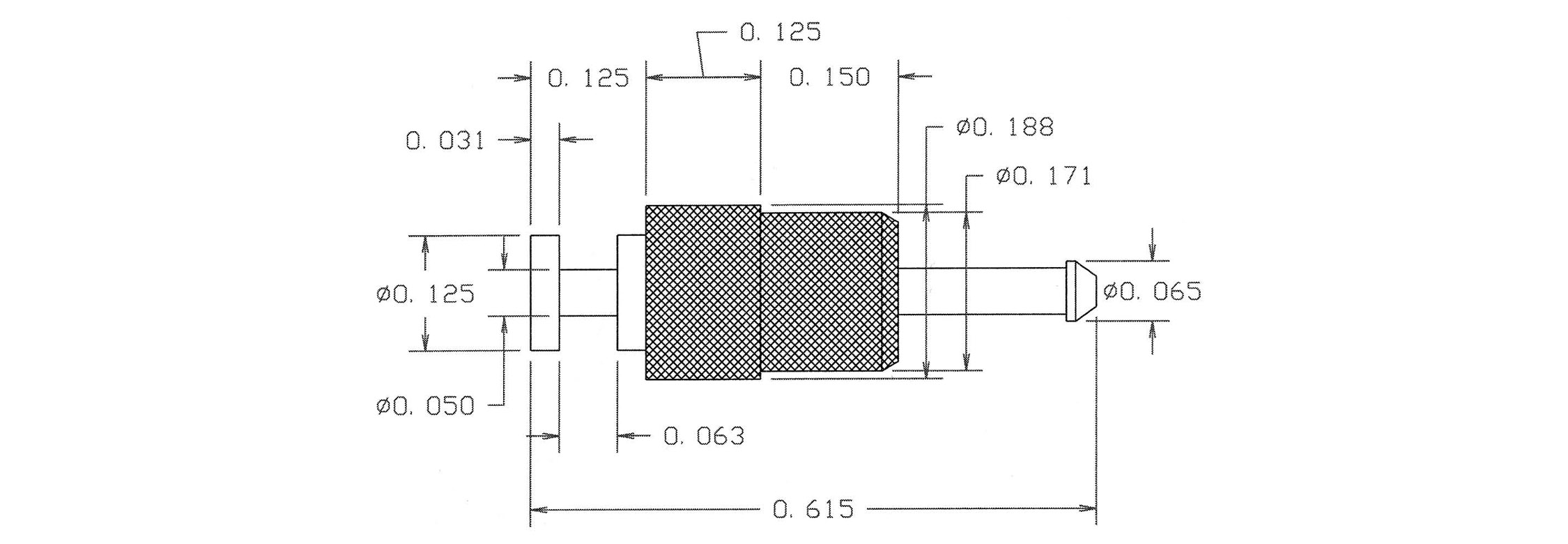

1157-03-0111
1157-03-0111
1157-03-0111
0.615" 0.050 TURRET/PIN Press Fit 1/8 0.158 Brass Silver - - PTFE Brown NO
