Non-Insulated
Banana Plugs

Part No	Mates With	Board Thickness	Mounting	Shank Length	Hole Size	Body Finish	Spring Finish
01-2255-3-03	Standard Jack	3/32	Swage Mount	0.125"	0.136	Gold	Gold
01-2255-2-02	Standard Jack	1/16	Swage Mount	0.094"	0.136	Nickel	Nickel
01-2255-2-01	Standard Jack	1/16	Swage Mount	0.094"	0.136	Silver	Silver
01-2254-3-044	Standard Jack	3/32	Swage Mount	0.125"	0.136	Bright Tin	Bright Tin
01-2254-3-03	Standard Jack	3/32	Swage Mount	0.125"	0.136	Gold	Gold
01-2254-3-02	Standard Jack	3/32	Swage Mount	0.125"	0.136	Nickel	Nickel
01-2254-3-01	Standard Jack	3/32	Swage Mount	0.125"	0.136	Silver	Silver
01-2255-2-03	Standard Jack	1/16	Swage Mount	0.094"	0.136	Gold	Gold
01-2310-1-03	Standard Jack	Up to 1/4	6-32 Nut	0.375"	0.154	Gold	Gold
01-2259-4-044	Mini Jack	1/8	Swage Mount	0.156"	0.096	Bright Tin	Bright Tin
01-2259-4-01	Mini Jack	1/8	Swage Mount	0.156"	0.096	Silver	Silver
01-2259-6-03	Mini Jack	3/16	Swage Mount	0.240"	0.096	Gold Flash	Gold
01-2259-6-02	Mini Jack	3/16	Swage Mount	0.240"	0.096	Nickel	Nickel
01-2259-2-03	Mini Jack	1/16	Swage Mount	0.094"	0.096	Gold	Gold

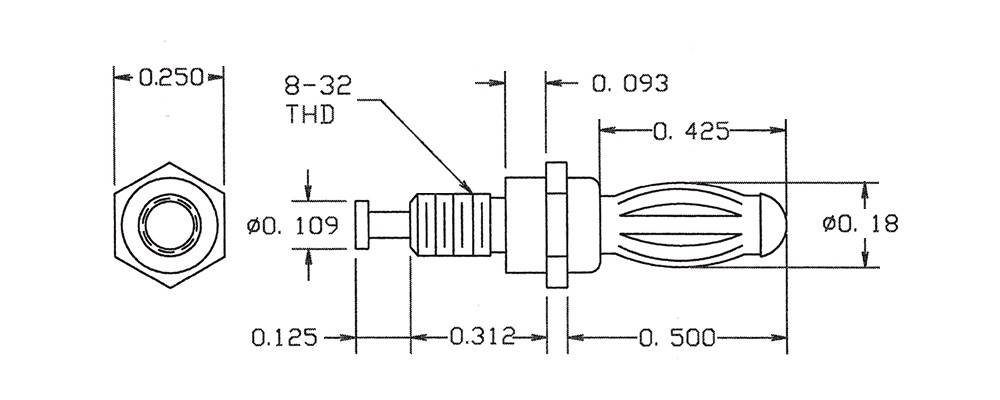

01-2379-1-02	Standard Jack	3/32	8-32	0.219"	8-32 THREAD	Nickel	Nickel
01-2379-1-01	Standard Jack	3/32	8-32	0.219"	8-32 THREAD	Silver	Silver
01-2259-2-02	Mini Jack	1/16	Swage Mount	0.094"	0.096	Nickel	Nickel
09-2122-1-01	Mini Jack	Up to 1/4	METRIC M2.5 x 0.45	0.276"	M2.5 x 0.45 METRIC THREAD	Silver	Silver
09-2122-1-03	Mini Jack	Up to 1/4	METRIC M2.5 x 0.45	0.276"	M2.5 x 0.45 METRIC THREAD	Gold	Gold
01-2262-4-03	Standard Jack	1/8	Swage Mount	0.156"	0.140	Gold	Gold
