Non-Insulated
Banana Plugs

Part No	Mates With	Board Thickness	Mounting	Shank Length	Hole Size	Body Finish	Spring Finish
01-2251-2-02	Mini Jack	1/16	Swage Mount	0.105"	0.161	Nickel	Nickel
01-2258-3-01	Mini Jack	3/32	Swage Mount	0.125"	0.096	Silver	Silver
01-2258-2-02	Mini Jack	1/16	Swage Mount	0.094"	0.096	Nickel	Nickel
01-2262-3-044	Standard Jack	3/32	Swage Mount	0.125"	0.140	Bright Tin	Bright Tin
01-2365-1-03	Standard Jack	5/8	8-32 Nut	0.750"	0.180	Gold	Gold

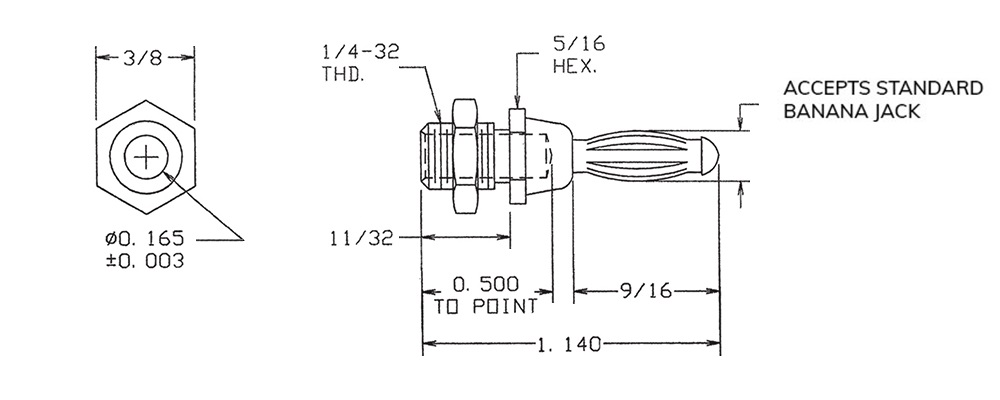

01-2356-1-02	Standard Jack	Up to 3/16	1/4-32 Nut	0.344"	0.266	Nickel	Nickel
01-2356-1-01	Standard Jack	Up to 3/16	1/4-32 Nut	0.344"	0.266	Silver	Silver
01-2333-1-01	Mini Jack	1/8	4-40 Nut	0.230"	0.125	Silver	Silver
01-2333-1-044	Mini Jack	1/8	4-40 Nut	0.230"	0.125	Bright Tin	Bright Tin
01-2334-1-044	Mini Jack	Up to 3/8	4-40 Nut	0.480"	0.125	Bright Tin	Bright Tin
01-2332-1-044	Mini Jack	Up to 3/16	2-56 Nut	0.266"	0.094	Bright Tin	Bright Tin
01-2378-1-01	Standard Jack	Up to 1/4	8-32	0.400"	8-32 THREAD	Silver	Silver
01-2378-1-1-044	Standard Jack	Up to 1/4	8-32	0.400"	8-32 THREAD	Bright Tin	Bright Tin
01-2337-1-02	Mini Jack	Up to 1/4	2-56	0.265"	2-56 THREAD	Nickel	Nickel
01-2337-1-03	Mini Jack	Up to 1/4	2-56	0.265"	2-56 THREAD	Gold	Gold

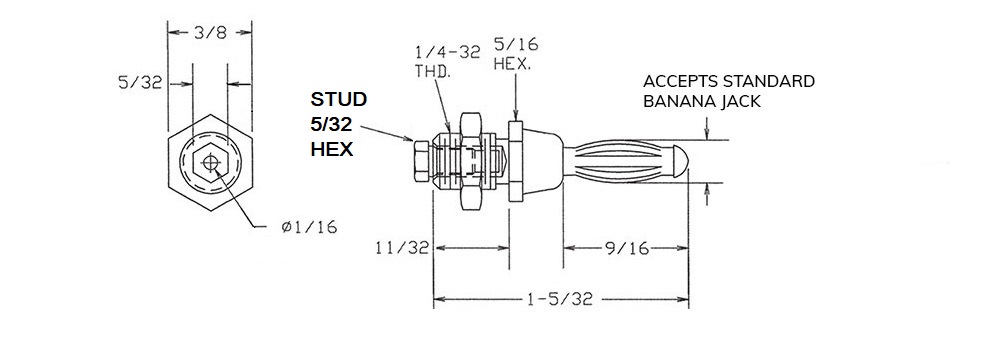

01-2347-1-044	Standard Jack	Up to 1/4	1/4-32 Nut	0.344"	0.266	Bright Tin	Bright Tin
01-2347-1-03	Standard Jack	Up to 1/4	1/4-32 Nut	0.344"	0.266	Gold	Gold
01-2344-1-01	Standard Jack	Up to 1/4	1/4-32	0.370"	1/4-32 THREAD	Silver	Silver
01-2262-2-02	Standard Jack	1/16	Swage Mount	0.094"	0.140	Nickel	Nickel
01-2262-3-03	Standard Jack	3/32	Swage Mount	0.125"	0.140	Gold	Gold

Non-InsulatedBanana Plugs
