Non-Insulated
Banana Plugs

Part No	Mates With	Board Thickness	Mounting	Shank Length	Hole Size	Body Finish	Spring Finish
01-2262-2-044	Standard Jack	1/16	Swage Mount	0.094"	0.140	Bright Tin	Bright Tin
01-2262-3-01	Standard Jack	3/32	Swage Mount	0.125"	0.140	Silver	Silver
01-2262-3-02	Standard Jack	3/32	Swage Mount	0.125"	0.140	Nickel	Nickel
01-2377-1-044	Standard Jack	Up to 1/4	10-32	0.250"	10-32 THREAD	Bright Tin	Bright Tin
01-2377-1-03	Standard Jack	Up to 1/4	10-32	0.250"	10-32 THREAD	Gold	Gold
01-2531-1-03	Standard Jack	-	6-32 Screw	-	CLEARANCE FOR Screw #6	Gold	Gold
01-2347-1-02	Standard Jack	Up to 1/4	1/4-32 Nut	0.344"	0.266	Nickel	Nickel
01-2347-1-01	Standard Jack	Up to 1/4	1/4-32 Nut	0.344"	0.266	Silver	Silver
01-2344-1-03	Standard Jack	Up to 1/4	1/4-32	0.370"	1/4-32 THREAD	Gold	Gold
01-2344-1-044	Standard Jack	Up to 1/4	1/4-32	0.370"	1/4-32 THREAD	Bright Tin	Bright Tin
01-2320-1-01	Standard Jack	-	-	-	-	Silver	Silver
01-2363-1-02	Standard Jack	Up to 1/4	8-32 Nut	0.375"	0.180	Nickel	Nickel
01-2305-1-02	Standard Jack	5/8	8-32 Nut	0.750"	0.180	Nickel	Nickel
01-2252-2-044	Mini Jack	1/16	Swage Mount	0.105"	0.161	Bright Tin	Bright Tin
01-2337-1-044	Mini Jack	Up to 1/4	2-56	0.265"	2-56 THREAD	Bright Tin	Bright Tin
01-2342-1-02	Standard Jack	-	4-40 Screw	-	CLEARANCE FOR Screw #4	Nickel	Nickel
01-2265-3-01	Standard Jack	3/32	Swage Mount	0.135"	0.250	Silver	Silver
01-2265-2-03	Standard Jack	1/16	Swage Mount	0.105"	0.250	Gold	Gold

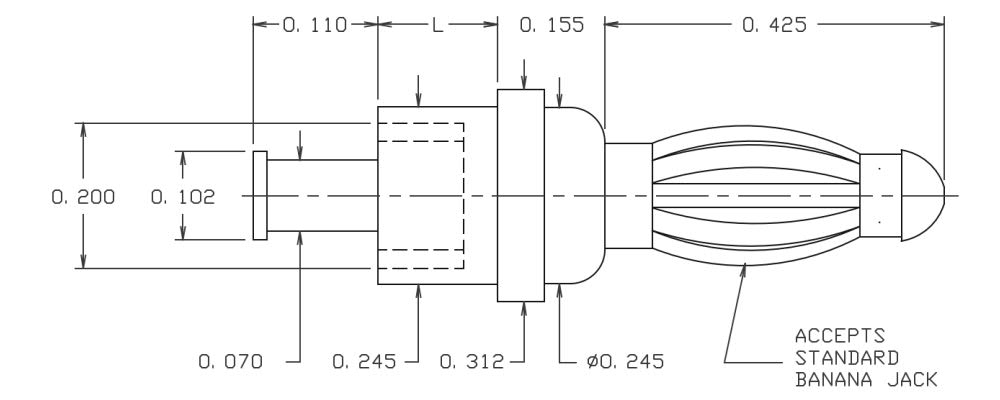

01-2260-2-02	Standard Jack	1/16	Swage Mount	0.105"	0.250	Nickel	Nickel
01-2320-1-03	Standard Jack	-	-	-	-	Gold	Gold

Non-InsulatedBanana Plugs
