Commercial
Non-Insulated
Terminals

Filter
10-928-1-04
10-928-1-04
10-928-1-04
0.531" - TURRET/PIN Press Fit/Solder 0.375" 9/64 TO 5/16 0.096 Brass Electro-Tin YES
10-972-1-04
10-972-1-04
10-972-1-04
0.831" 0.040 - Swage Mount 0.061" 1/32 0.043 Brass Electro-Tin YES
14-351-2-01
14-351-2-01
14-351-2-01
0.434" - - Swage Mount 0.109" 1/16 0.196 LEADED Red Brass Silver YES
09-0279-2-01
09-0279-2-01
09-0279-2-01
0.344" - - Swage Mount 0.105" 1/16 0.094 Brass Silver YES
10-413-8-044
10-413-8-044
10-413-8-044
0.426" - - Swage Mount 0.270" 1/4 0.052 Brass Bright Tin YES
10-448-3-03
10-448-3-03
10-448-3-03
0.427" - - Swage Mount 0.115" 3/32 0.063 Brass Gold YES
10-471-1-05
10-471-1-05
10-471-1-05
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Electro Solder NO
10-948-2-035
10-948-2-035
10-948-2-035
0.267" - - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES

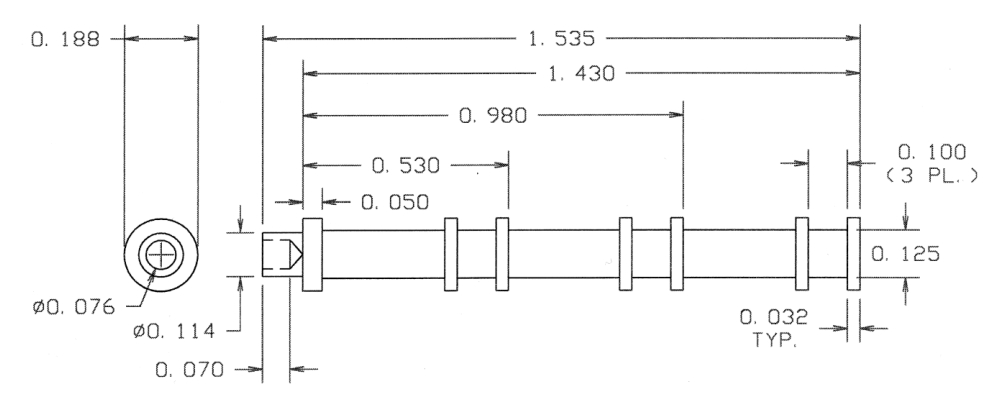

09-0047-2-035
09-0047-2-035
09-0047-2-035
1.535" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
09-0112-2-01
09-0112-2-01
09-0112-2-01
0.448" - TURRET/THREAD Swage Mount 0.094" 1/16 0.154 Brass Silver YES

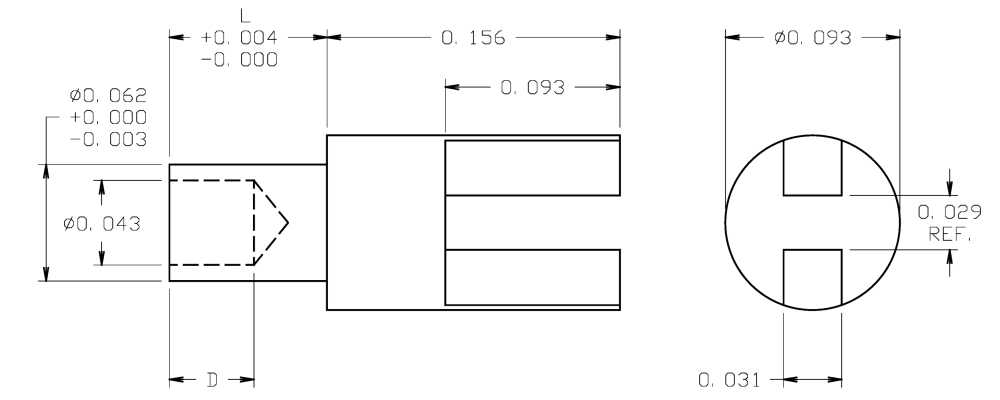

09-0175-11-044
09-0175-11-044
09-0175-11-044
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin YES
09-0212-2-044
09-0212-2-044
09-0212-2-044
0.270" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin YES
09-0258-1-01
09-0258-1-01
09-0258-1-01
0.346" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Silver YES
09-0303-5-05
09-0303-5-05
09-0303-5-05
0.334" - - Swage Mount 0.181" 5/32 0.063 Brass Electro Solder NO

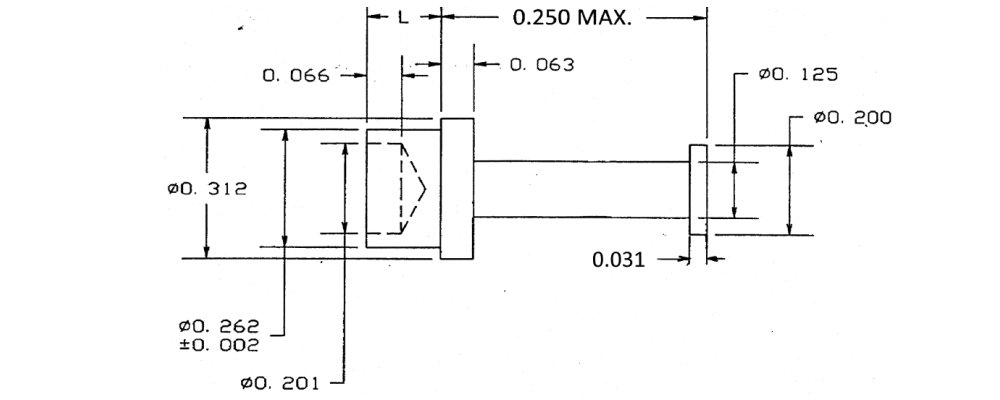

09-0368-4-03
09-0368-4-03
09-0368-4-03
0.422" - - Swage Mount 0.172" 1/8 0.266 Brass Gold YES

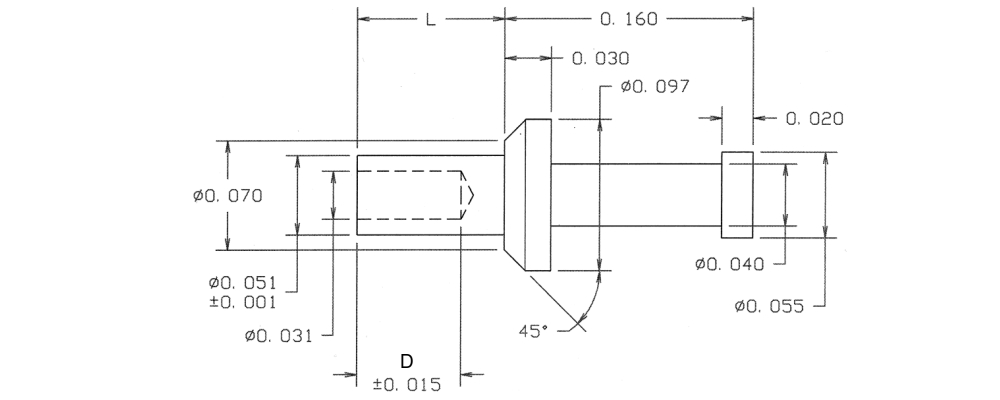

09-7016-4-088
09-7016-4-088
09-7016-4-088
0.310" - - Swage Mount 0.150" 1/8 0.055 Brass Bright Tin-Lead NO

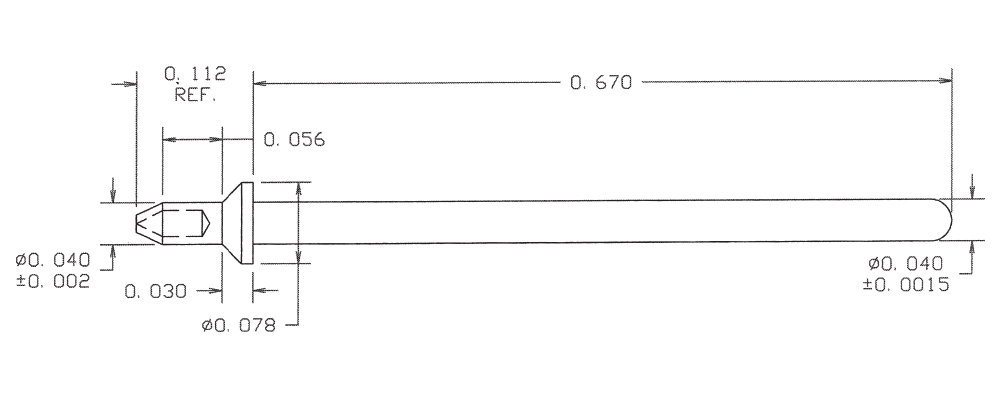

09-7128-1-05
09-7128-1-05
09-7128-1-05
0.782" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro Solder NO

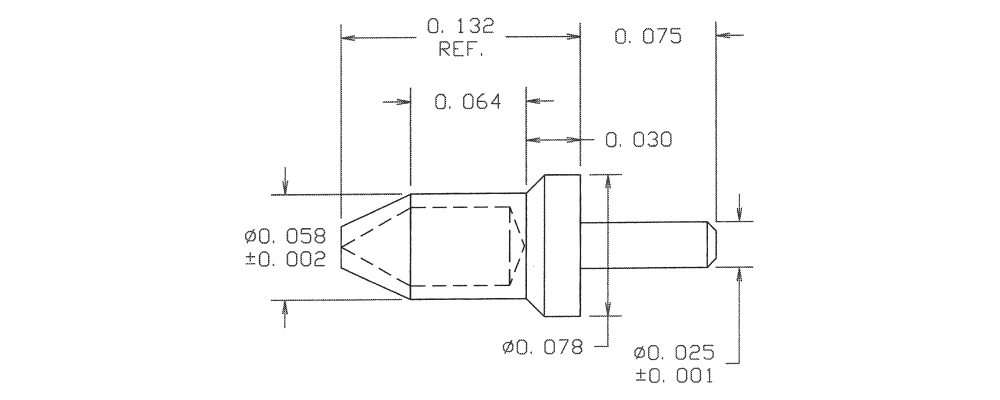

09-7158-1-035
09-7158-1-035
09-7158-1-035
0.207" 0.025 - RIVET MOUNT 0.064" 1/32 0.0625 Brass Gold YES

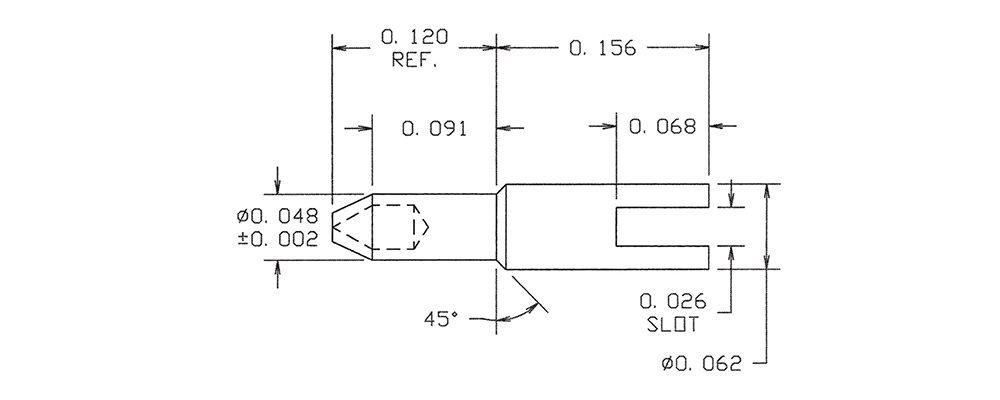

09-7188-2-088
09-7188-2-088
09-7188-2-088
0.276" - - RIVET MOUNT 0.091" 1/16 0.052 Brass Bright Tin-Lead NO

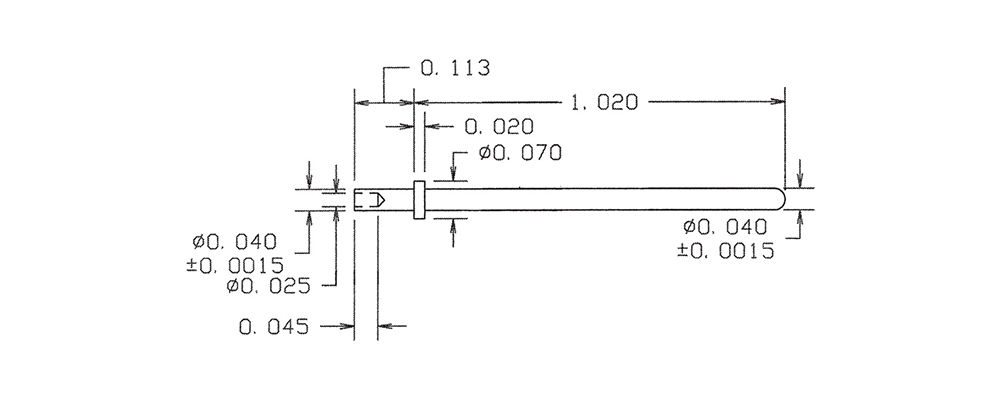

09-8039-3-04
09-8039-3-04
09-8039-3-04
1.133" 0.0405 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
