Commercial
Non-Insulated
Terminals

Filter
10-206-3-04
10-206-3-04
10-206-3-04
0.306" - - Swage Mount 0.115" 3/32 0.076 Brass Electro-Tin YES
10-215-1-04
10-215-1-04
10-215-1-04
0.207" - - Swage Mount 0.053" 1/32 0.063 Brass Electro-Tin YES
10-224-1-044
10-224-1-044
10-224-1-044
0.453" - - Press Fit/Solder 0.130" 3/32 0.195 Brass Bright Tin YES

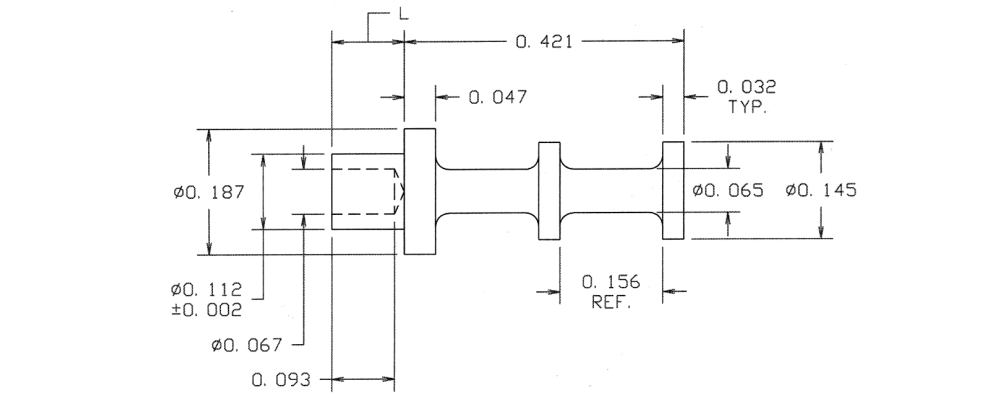

10-238-1-03
10-238-1-03
10-238-1-03
0.499" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES
10-266-1-035
10-266-1-035
10-266-1-035
0.209" - - Swage Mount 0.053" 1/32 0.206 Brass Gold YES
10-308-3-05
10-308-3-05
10-308-3-05
0.218" - - Swage Mount 0.125" 3/32 0.067 Brass Electro Solder NO
10-317-1-035
10-317-1-035
10-317-1-035
0.387" - - Swage Mount 0.075" 1/32 0.116 Brass Gold YES
10-331-4-088
10-331-4-088
10-331-4-088
0.500" - - Swage Mount 0.172" 1/8 0.086 Brass Bright Tin-Lead NO
10-405-8-04
10-405-8-04
10-405-8-04
0.614" - - Swage Mount 0.297" 1/4 0.116 Brass Electro-Tin YES

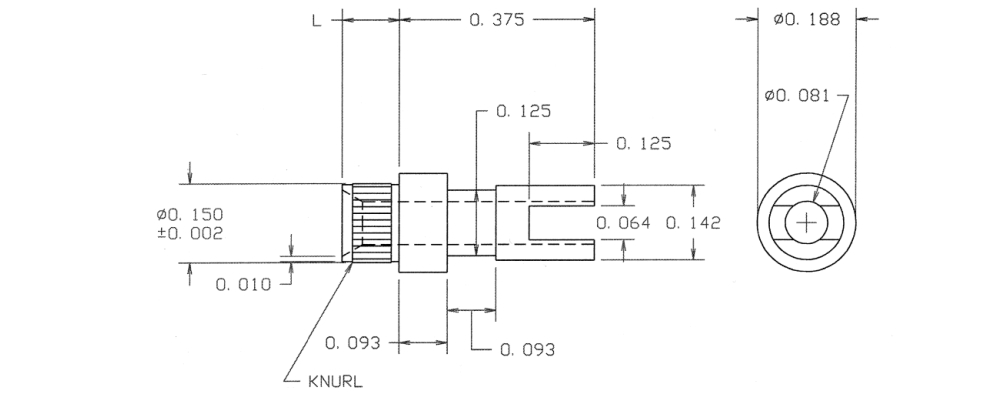

10-420-4-044
10-420-4-044
10-420-4-044
0.547" - - Swage Mount 0.172" 1/8 0.154 Brass Bright Tin YES

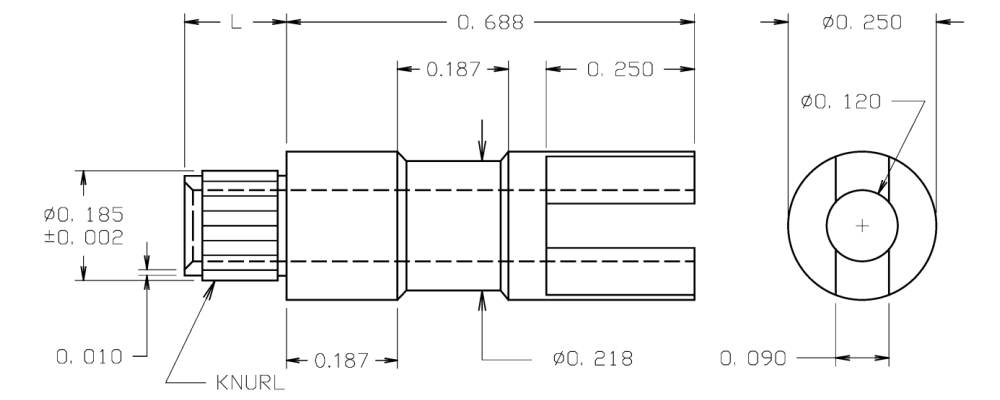

10-433-8-044
10-433-8-044
10-433-8-044
0.985" - - Swage Mount 0.297" 1/4 0.182 Brass Bright Tin YES
10-454-4-03
10-454-4-03
10-454-4-03
0.406" - - Swage Mount 0.156" 1/8 0.067 Brass Gold YES

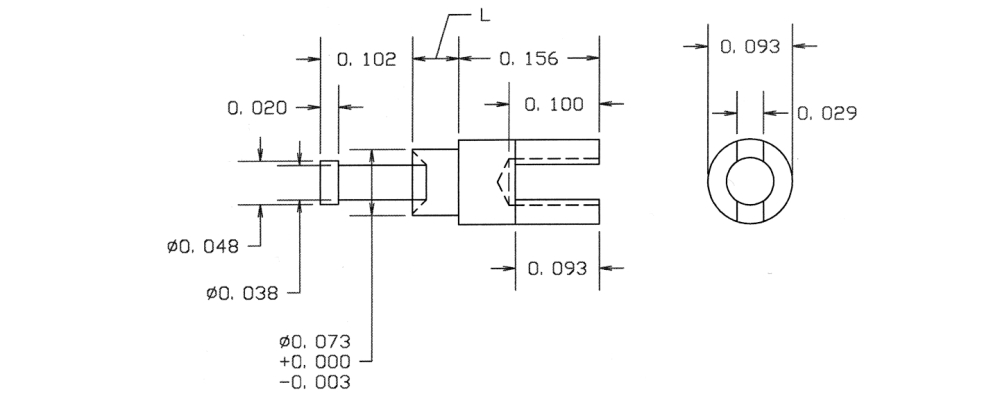

10-466-2-095
10-466-2-095
10-466-2-095
0.340" - TURRET/THREAD Swage Mount 0.082" 1/16 0.076 Brass Hot Solder Dip NO
10-492-2-04
10-492-2-04
10-492-2-04
0.386" - Slotted/Slotted Swage Mount 0.105" 1/16 0.120 Brass Electro-Tin YES
10-506-1-088
10-506-1-088
10-506-1-088
0.343" - Turret/Turret Swage Mount 0.062" 1/32 0.120 Brass Bright Tin-Lead NO

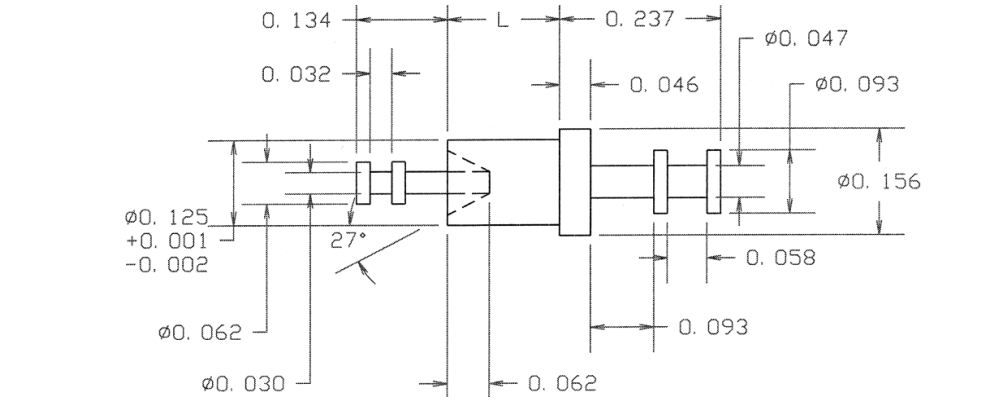

10-512-1-088
10-512-1-088
10-512-1-088
0.446" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.129 Brass Bright Tin-Lead NO

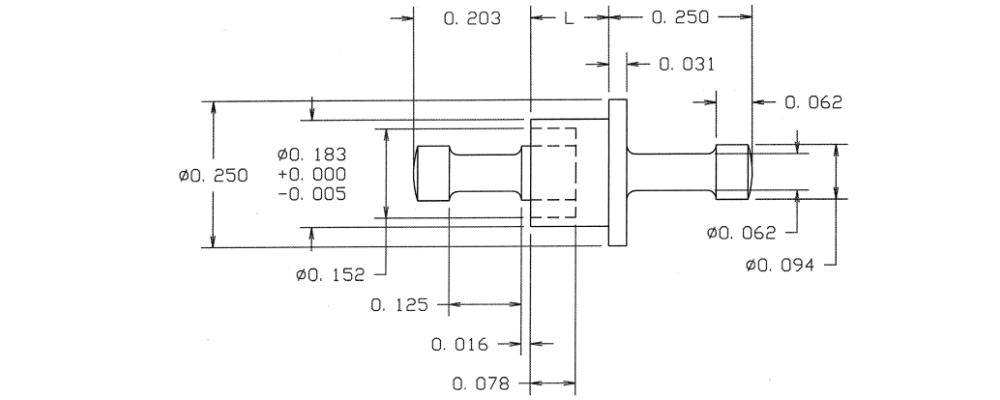

10-521-2-088
10-521-2-088
10-521-2-088
0.558" 0.094 Pin/Pin Swage Mount 0.105" 1/16 0.185 Brass Bright Tin-Lead NO

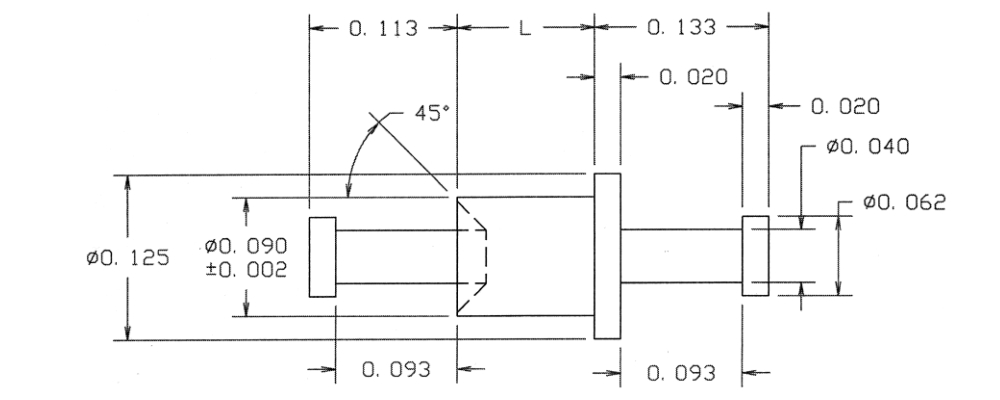

10-533-3-088
10-533-3-088
10-533-3-088
0.381" - Turret/Turret Swage Mount 0.135" 3/32 0.094 Brass Bright Tin-Lead NO
10-554-2-088
10-554-2-088
10-554-2-088
0.427" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Bright Tin-Lead NO
10-602-6-088
10-602-6-088
10-602-6-088
0.718" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin-Lead NO
