Commercial
Non-Insulated
Terminals

Filter
09-8064-5-01
09-8064-5-01
09-8064-5-01
0.190" 0.020 (+0.000/-0.001) - Swage Mount 0.051" 1/32 0.033 Brass Silver YES
09-8115-2-044
09-8115-2-044
09-8115-2-044
0.240" 0.040 - Swage Mount 0.090" 1/16 0.043 Brass Bright Tin YES

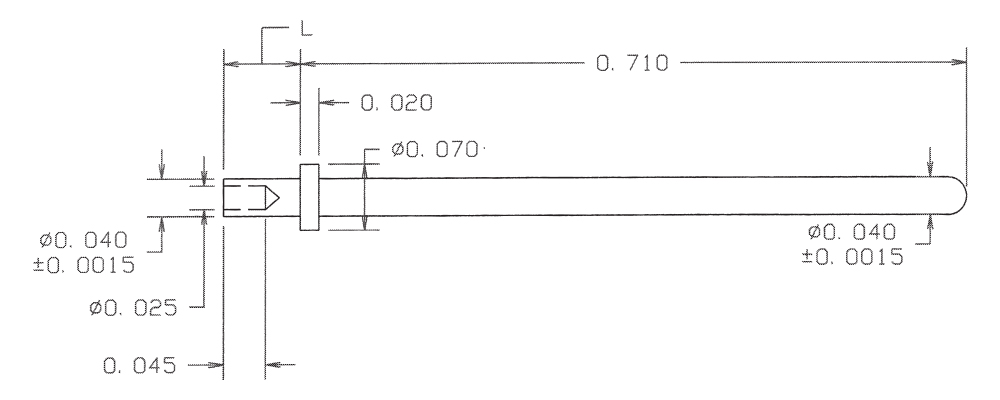

09-8160-1-03
09-8160-1-03
09-8160-1-03
0.761" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8188-1-05
09-8188-1-05
09-8188-1-05
0.137" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Electro Solder NO
09-8419-2-04
09-8419-2-04
09-8419-2-04
0.409" 0.062 - Swage Mount 0.084" 1/16 0.067 Brass Electro-Tin YES
09-8631-1-088
09-8631-1-088
09-8631-1-088
0.704" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Bright Tin-Lead NO
09-8737-3-04
09-8737-3-04
09-8737-3-04
0.250" 0.060 - Swage Mount 0.100" 1/16 0.043 Brass Electro-Tin YES
09-8835-1-035
09-8835-1-035
09-8835-1-035
0.725" 0.040 (+0.002/-0.001) - Solder 0.100" 1/16 0.043 Brass Gold YES
10-101-1-044
10-101-1-044
10-101-1-044
0.155" - - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES
10-107-2-01
10-107-2-01
10-107-2-01
0.187" - - Swage Mount 0.094" 1/16 0.067 Brass Silver YES
10-115-2-044
10-115-2-044
10-115-2-044
0.209" - - Swage Mount 0.084" 1/16 0.037 Brass Bright Tin YES
10-136-2-088
10-136-2-088
10-136-2-088
0.178" - - Swage Mount 0.084" 1/16 0.041 Brass Bright Tin-Lead NO
10-206-1-035
10-206-1-035
10-206-1-035
0.244" - - Swage Mount 0.053" 1/32 0.076 Brass Gold YES
10-214-5-035
10-214-5-035
10-214-5-035
0.334" - - Swage Mount 0.178" 5/32 0.067 Brass Gold YES
10-222-1-03
10-222-1-03
10-222-1-03
0.297" - - Press Fit/Solder 0.105" 3/32 0.128 Brass Gold YES
10-236-3A-05
10-236-3A-05
10-236-3A-05
0.556" - - Swage Mount 0.136" 3/32 0.116 Brass Electro Solder NO
10-259-6-03
10-259-6-03
10-259-6-03
0.438" - - Swage Mount 0.219" 3/16 0.094 Brass Gold YES

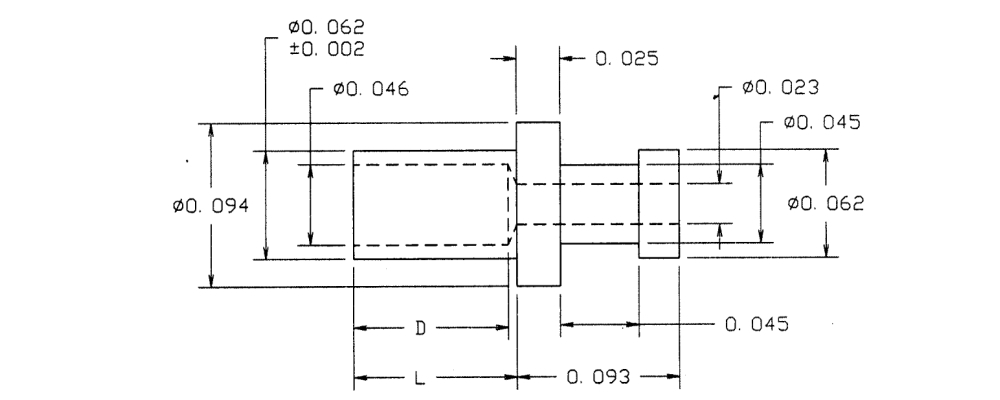

10-308-11-035
10-308-11-035
10-308-11-035
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Gold YES
10-316-2-088
10-316-2-088
10-316-2-088
0.569" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin-Lead NO
10-331-2-04
10-331-2-04
10-331-2-04
0.437" - - Swage Mount 0.109" 1/16 0.086 Brass Electro-Tin YES
