Commercial
Non-Insulated
Terminals

Filter
10-413-2-03
10-413-2-03
10-413-2-03
0.238" - - Swage Mount 0.082" 1/16 0.052 Brass Gold YES
10-447-3-05
10-447-3-05
10-447-3-05
0.396" - - Swage Mount 0.115" 3/32 0.063 Brass Electro Solder NO
10-464-11-035
10-464-11-035
10-464-11-035
0.107" - - Swage Mount 0.037" 1/64 0.035 Brass Gold YES
10-940-1-088
10-940-1-088
10-940-1-088
0.250" - - Swage Mount 0.062" 1/32 0.0635 Brass Bright Tin-Lead NO
09-0040-1-03
09-0040-1-03
09-0040-1-03
1.1875" 0.055 - - - - - Brass Gold YES
09-0107-2-044
09-0107-2-044
09-0107-2-044
0.235" - - Swage Mount 0.095" 1/16 0.067 LEADED Red Brass Bright Tin YES
09-0171-2-044
09-0171-2-044
09-0171-2-044
0.315" - - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin YES
09-0210-5-05
09-0210-5-05
09-0210-5-05
0.330" - - 2-56 - - 2-56 THREAD Brass Electro Solder NO
09-0252-2-088
09-0252-2-088
09-0252-2-088
0.186" - - Swage Mount 0.082" 1/16 0.081 Brass Bright Tin-Lead NO

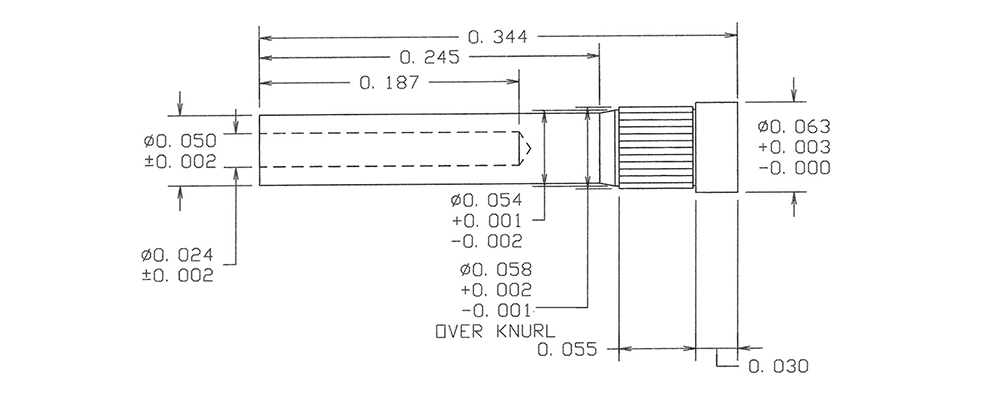

09-0298-1-05
09-0298-1-05
09-0298-1-05
0.344" 0.050 - Press Fit/Solder 0.055" 1/16 0.055 Brass Electro Solder NO

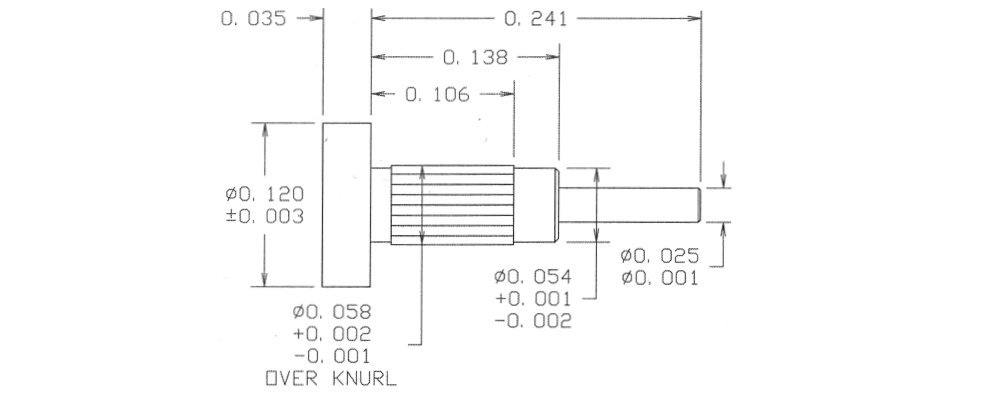

09-0360-1-05
09-0360-1-05
09-0360-1-05
0.276" - - Press Fit/Solder 0.138" 3/32 0.052 Brass Electro Solder NO
09-7013-4-095
09-7013-4-095
09-7013-4-095
0.310" - - Swage Mount 0.150" 1/8 0.067 LEADED Red Brass Hot Solder Dip NO
09-7124-1-035
09-7124-1-035
09-7124-1-035
0.266" 0.030 - RIVET MOUNT 0.052" 1/32 0.035 Brass Gold YES
09-7153-2-088
09-7153-2-088
09-7153-2-088
0.271" 0.040 - RIVET MOUNT 0.103" 1/16 0.076 Brass Bright Tin-Lead NO

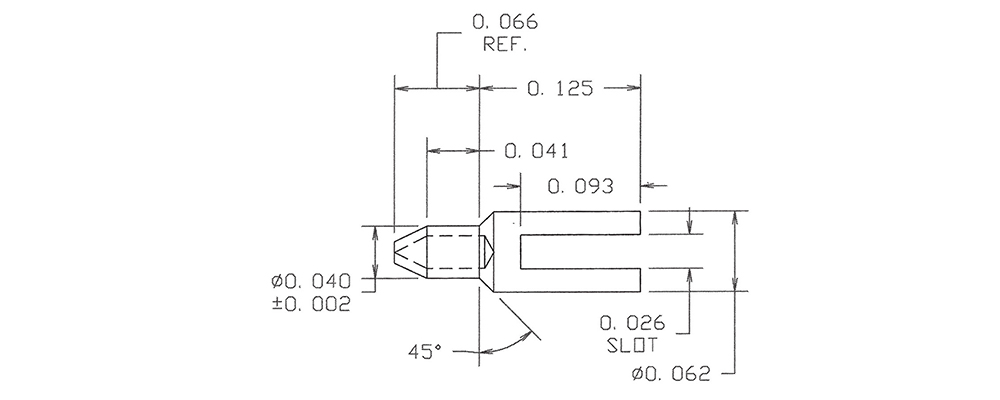

09-7186-1A-04
09-7186-1A-04
09-7186-1A-04
0.191" - - RIVET MOUNT 0.041" 1/64 0.044 Brass Electro-Tin YES
09-8031-1-01
09-8031-1-01
09-8031-1-01
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

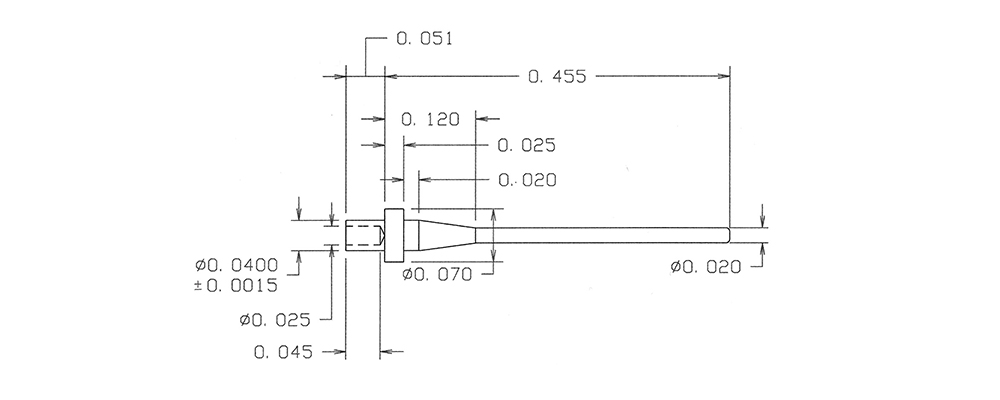

09-8063-1-04
09-8063-1-04
09-8063-1-04
0.506" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES
09-8114-2-01
09-8114-2-01
09-8114-2-01
0.410" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.086 Brass Silver YES
09-8158-2-044
09-8158-2-044
09-8158-2-044
0.757" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8187-2-03
09-8187-2-03
09-8187-2-03
0.645" 0.020 - Solder 0.100" 1/64 TO 1/16 0.024 Brass Gold YES
