Commercial
Non-Insulated
Terminals

Filter
09-0268-3-03
09-0268-3-03
09-0268-3-03
0.446" - - Swage Mount 0.156" 1/8 0.094 Brass Gold YES
09-0320-1-01
09-0320-1-01
09-0320-1-01
0.281" - - Press Fit/Solder 0.195" 3/16 TO 7/32 0.055 Brass Silver YES
09-6004-1-01
09-6004-1-01
09-6004-1-01
1.034" 0.045 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.094" 1/16 0.055 Brass Silver YES

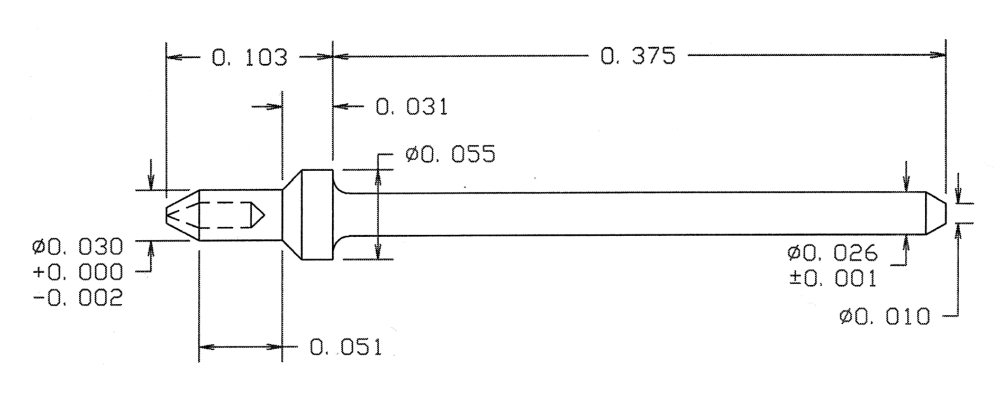

09-7026-1-04
09-7026-1-04
09-7026-1-04
0.478" 0.026 - RIVET MOUNT 0.051" 1/32 0.035 Brass Electro-Tin YES
09-7139-1-01
09-7139-1-01
09-7139-1-01
0.782" 0.019 - RIVET MOUNT 0.056" 1/32 0.044 Brass Silver YES
09-7165-3-044
09-7165-3-044
09-7165-3-044
0.625" 0.063 - RIVET MOUNT 0.129" 3/32 0.067 Brass Bright Tin YES
09-8002-1-03
09-8002-1-03
09-8002-1-03
1.053" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Gold YES
09-8044-3-05
09-8044-3-05
09-8044-3-05
0.433" 0.031 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO
09-8081-1-03
09-8081-1-03
09-8081-1-03
0.751" 0.025 - Swage Mount 0.051" 1/32 0.052 Brass Gold YES
09-8137-2-05
09-8137-2-05
09-8137-2-05
0.541" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.086 Brass Electro Solder NO
09-8171-2-035
09-8171-2-035
09-8171-2-035
0.924" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Gold YES
09-8298-2-035
09-8298-2-035
09-8298-2-035
0.278" 0.040 - Swage Mount 0.105" 1/16 0.076 Brass Gold YES
09-8480-2-05
09-8480-2-05
09-8480-2-05
0.232" 0.025 - Swage Mount 0.082" 1/16 0.0465 Brass Electro Solder NO
09-8656-2-044
09-8656-2-044
09-8656-2-044
0.441" - - Swage Mount 0.109" 1/16 0.094 Brass Bright Tin YES
09-8777-2-035
09-8777-2-035
09-8777-2-035
0.215" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Gold YES
09-8852-1-04
09-8852-1-04
09-8852-1-04
0.900" 0.062 ± 0.0005 - - - - - Brass Electro-Tin YES
10-103-3-01
10-103-3-01
10-103-3-01
0.375" - - Swage Mount 0.141" 3/32 0.116 Brass Silver YES
10-109-4-044
10-109-4-044
10-109-4-044
0.315" - - Swage Mount 0.156" 1/8 0.094 Brass Bright Tin YES
10-121-1-01
10-121-1-01
10-121-1-01
0.176" - - Swage Mount 0.051" 1/32 0.052 Brass Silver YES
10-201-3-044
10-201-3-044
10-201-3-044
0.299" - - Swage Mount 0.113" 3/32 0.076 Brass Bright Tin YES
