Commercial
Insulated
Pin Terminals

Filter
1151R-09-08813
1151R-09-08813
1151R-09-08813
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

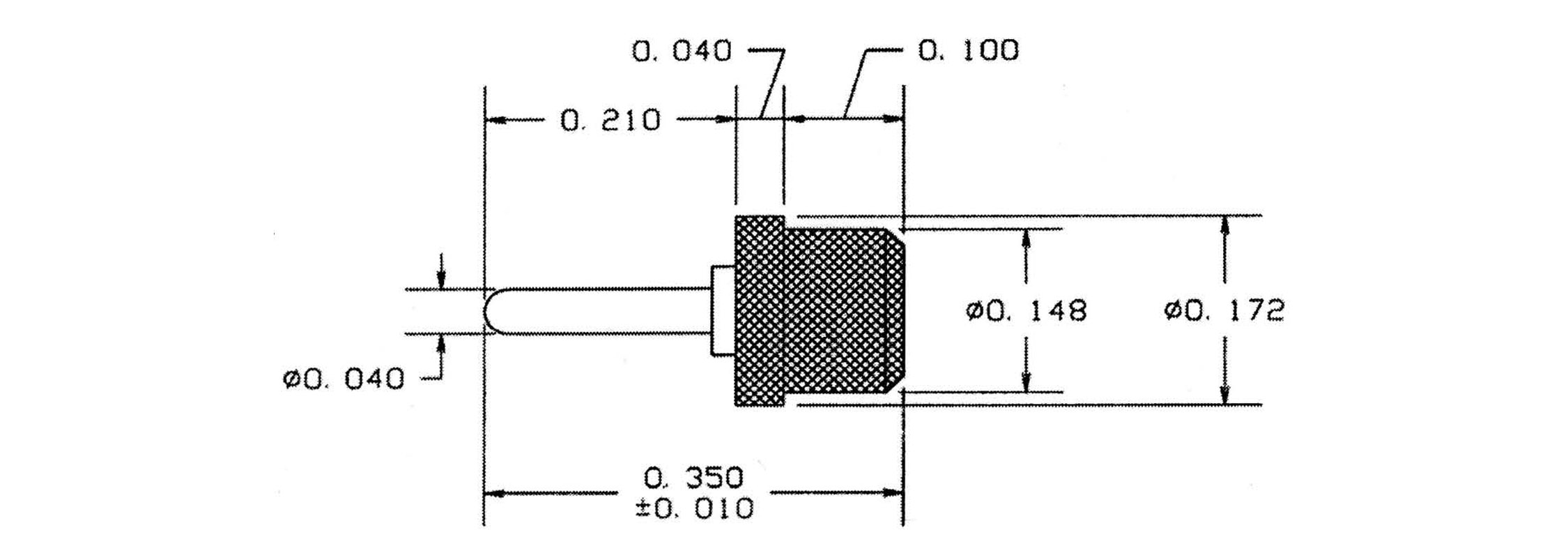

1152-01-0119
1152-01-0119
1152-01-0119
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1152-31-0415
1152-31-0415
1152-31-0415
0.750" 0.040 - Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Green YES
1152R-17-0511
1152R-17-0511
1152R-17-0511
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Brown NO
1153-06-08817
1153-06-08817
1153-06-08817
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1153-32-0313
1153-32-0313
1153-32-0313
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Orange NO

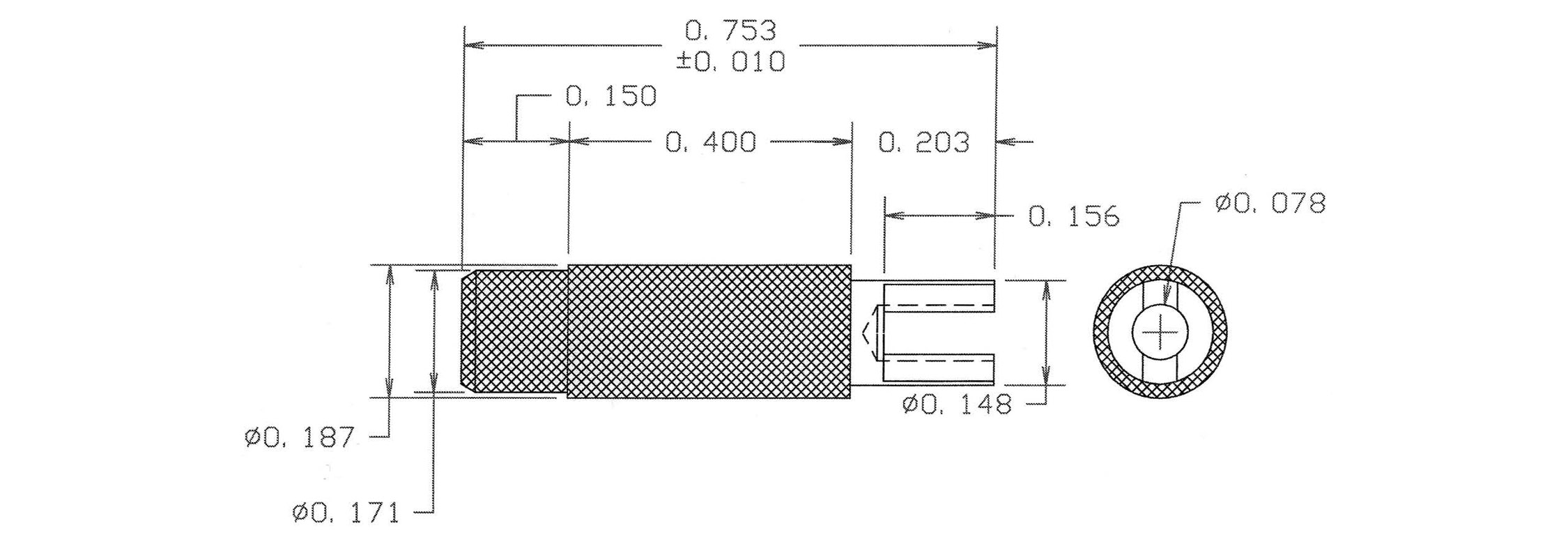

1154-10-0419
1154-10-0419
1154-10-0419
0.753" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE White YES
1154-44-0515
1154-44-0515
1154-44-0515
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Green NO

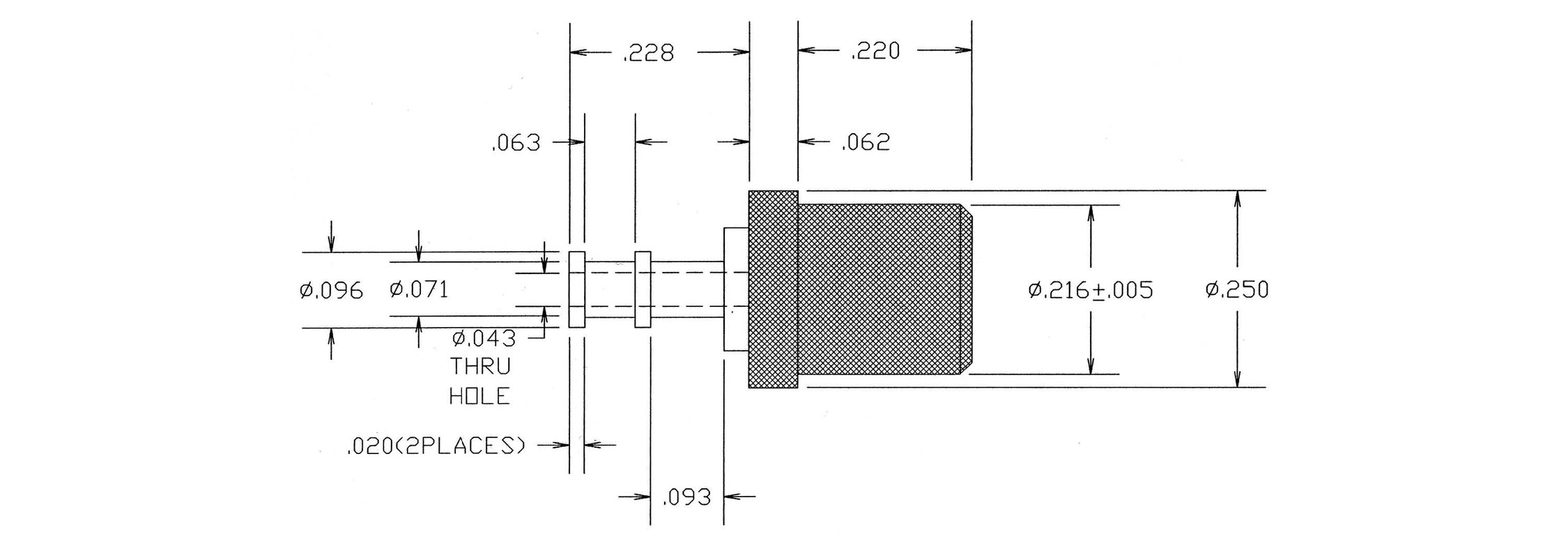

1155-02-0111
1155-02-0111
1155-02-0111
0.510" - - Press Fit Up to 3/16 0.204 Brass Silver - - PTFE Brown NO

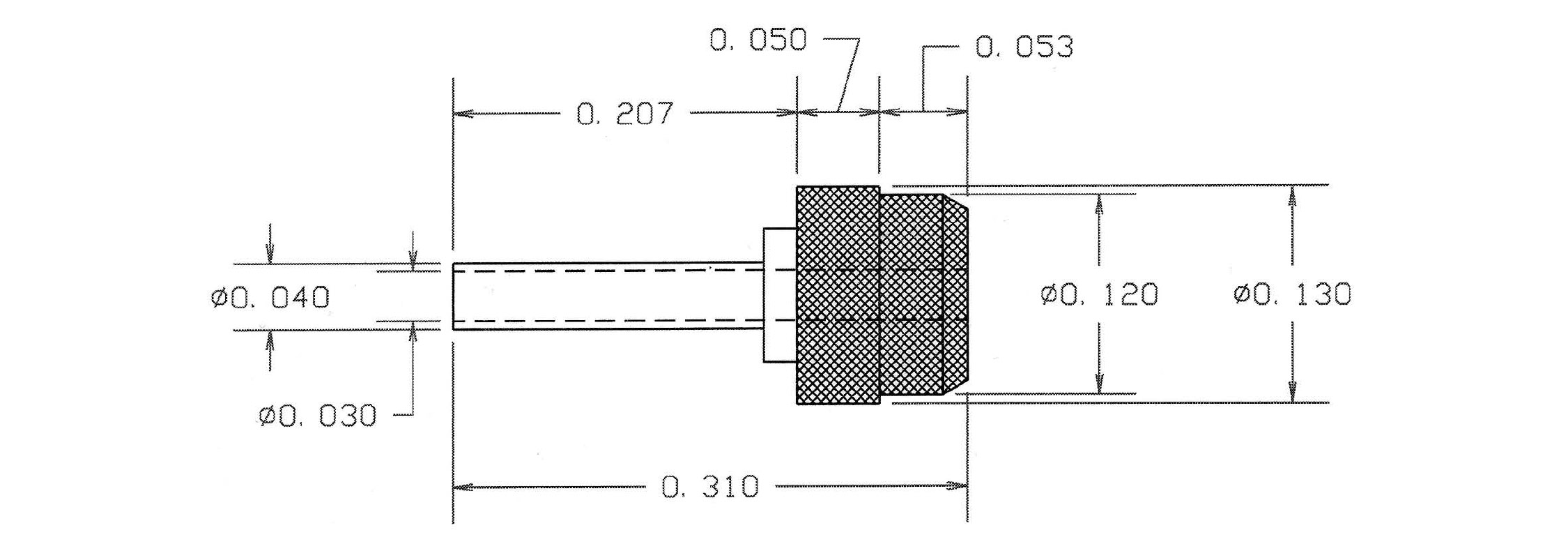

1155-13-0317
1155-13-0317
1155-13-0317
0.310" 0.040 - Press Fit 1/64 0.108 Brass Gold - - PTFE Violet YES
1156-02-04413
1156-02-04413
1156-02-04413
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Orange NO
1156-07-0519
1156-07-0519
1156-07-0519
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Electro Solder - - PTFE White NO
1156-15-0115
1156-15-0115
1156-15-0115
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE Green YES

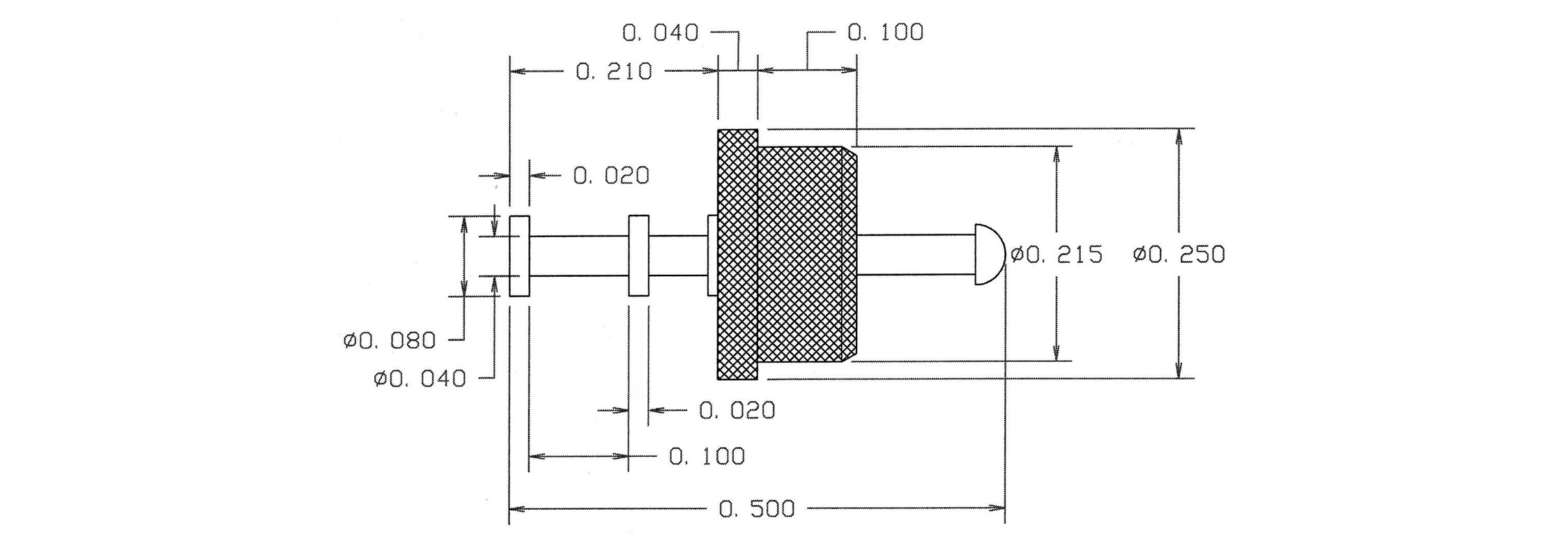

1156-19-0411
1156-19-0411
1156-19-0411
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Brown NO
1156R-01-04417
1156R-01-04417
1156R-01-04417
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin - - PTFE Violet YES
1157-01-08813
1157-01-08813
1157-01-08813
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

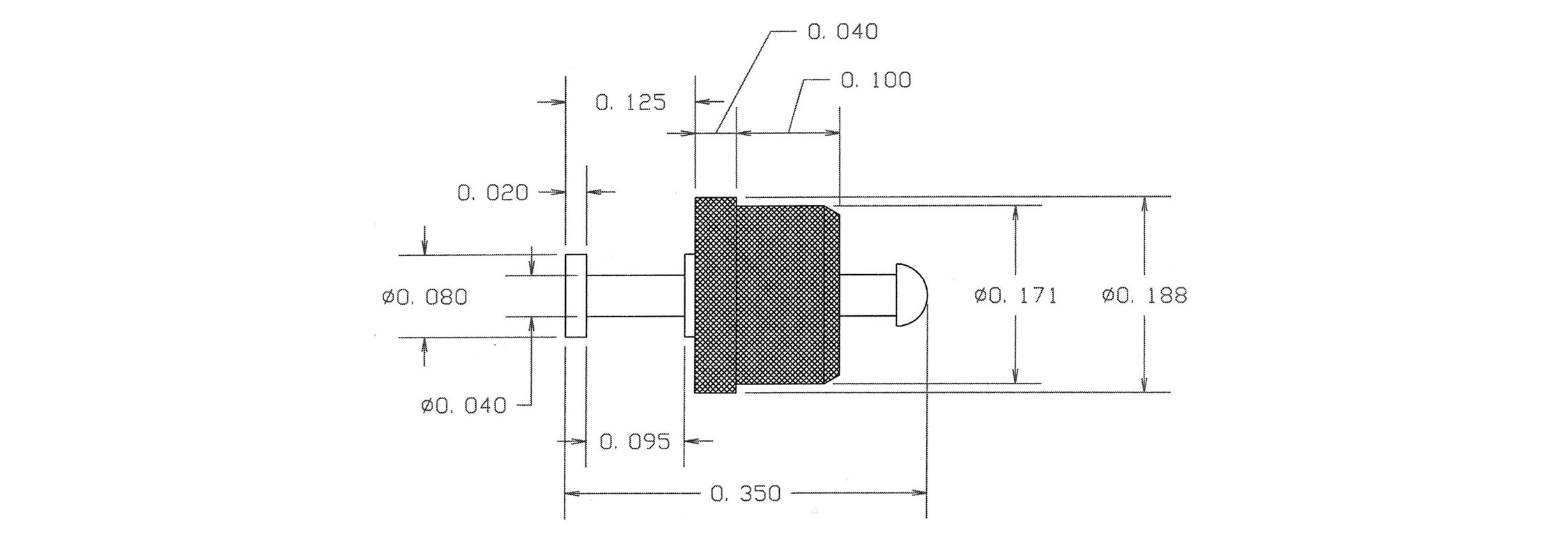

1157-07-0119
1157-07-0119
1157-07-0119
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Silver - - PTFE White YES
1157R-05-0415
1157R-05-0415
1157R-05-0415
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Green YES
1160-13-0511
1160-13-0511
1160-13-0511
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1167-20-08817
1167-20-08817
1167-20-08817
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
