Commercial
Insulated
Pin Terminals

Filter
1127-87-04413
1127-87-04413
1127-87-04413
0.515" - - 2-56 Nut 1/32 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-91-0519
1127-91-0519
1127-91-0519
0.674" - - Swage Mount 3/32 0.082 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO

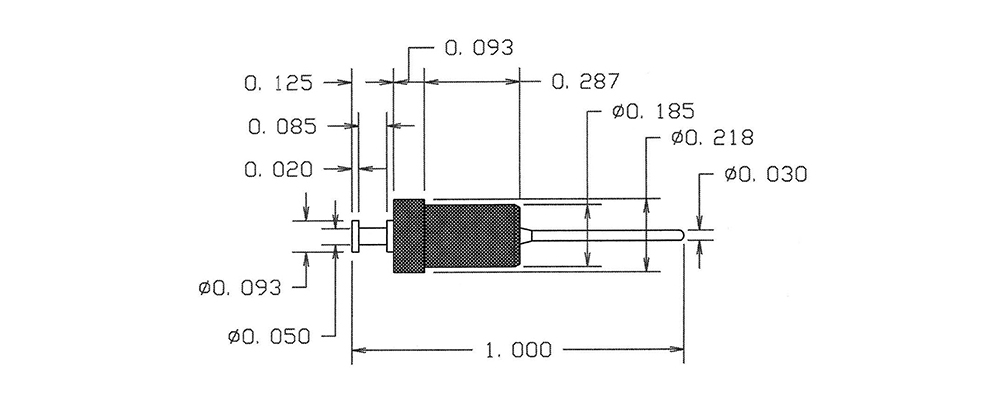

1129-01-0115
1129-01-0115
1129-01-0115
1.000" 0.030 TURRET/PIN Press Fit Up to 1/4 0.205 Brass Silver - - PTFE Green YES
1130-02-0411
1130-02-0411
1130-02-0411
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Electro-Tin - - PTFE Brown NO
1130-07-04417
1130-07-04417
1130-07-04417
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Violet YES
1130R-05-08813
1130R-05-08813
1130R-05-08813
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Orange NO

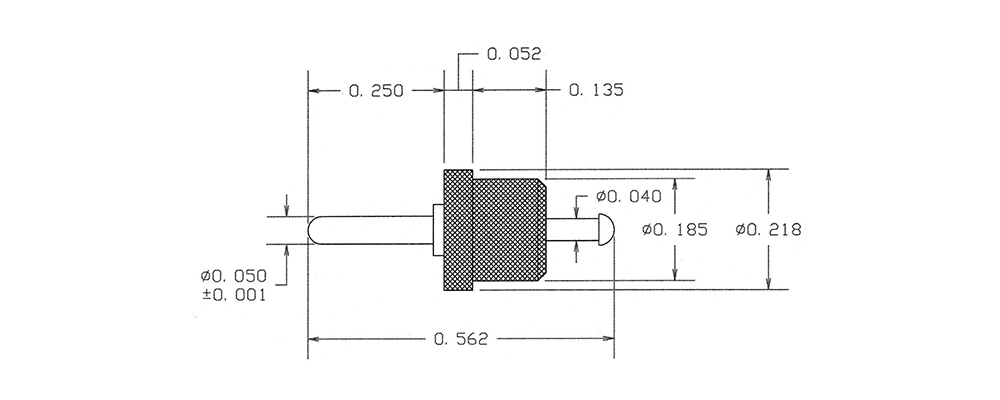

1131-03-0119
1131-03-0119
1131-03-0119
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Silver - - PTFE White YES
1131-07-0415
1131-07-0415
1131-07-0415
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Green YES
1132-01-0511
1132-01-0511
1132-01-0511
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro Solder - - PTFE Brown NO
1133-02-08817
1133-02-08817
1133-02-08817
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1135-01-0313
1135-01-0313
1135-01-0313
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Gold - - PTFE Orange NO
1135-05-0419
1135-05-0419
1135-05-0419
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE White YES
1135-09-0515
1135-09-0515
1135-09-0515
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO

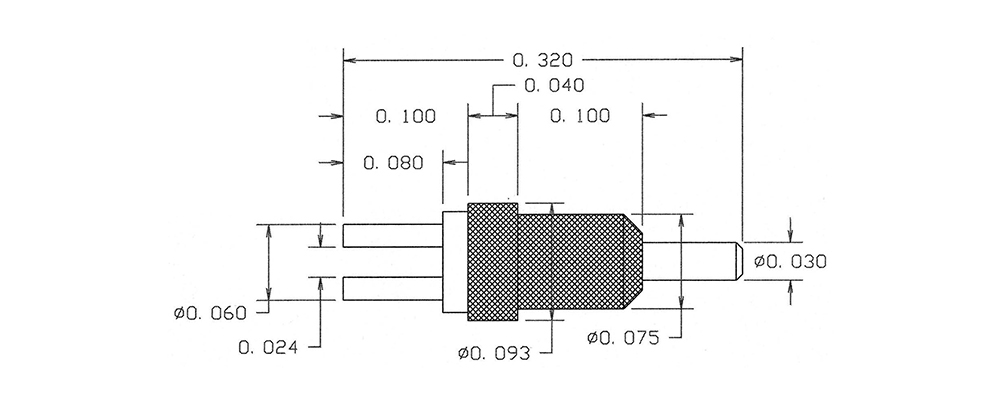

1137-03-0111
1137-03-0111
1137-03-0111
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Brown NO
1139-04-0317
1139-04-0317
1139-04-0317
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1151-05-04413
1151-05-04413
1151-05-04413
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1151-11-0519
1151-11-0519
1151-11-0519
0.455" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE White NO

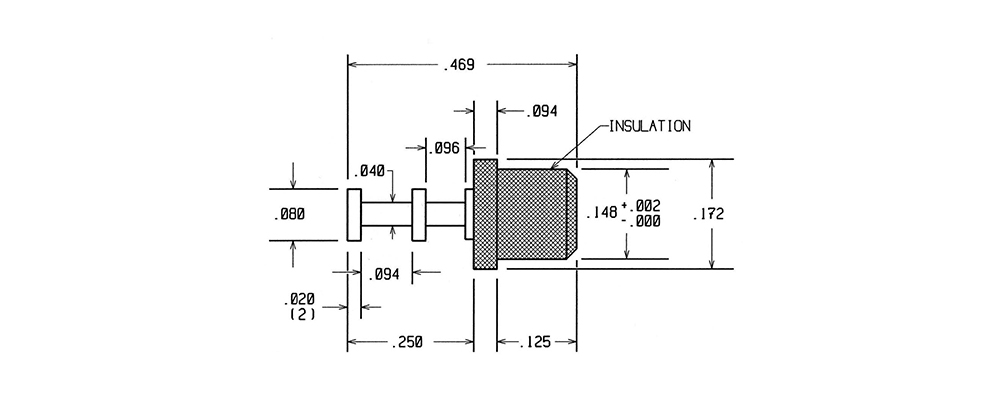

1151-20-0115
1151-20-0115
1151-20-0115
0.469" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1151-39-0411
1151-39-0411
1151-39-0411
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Brown NO

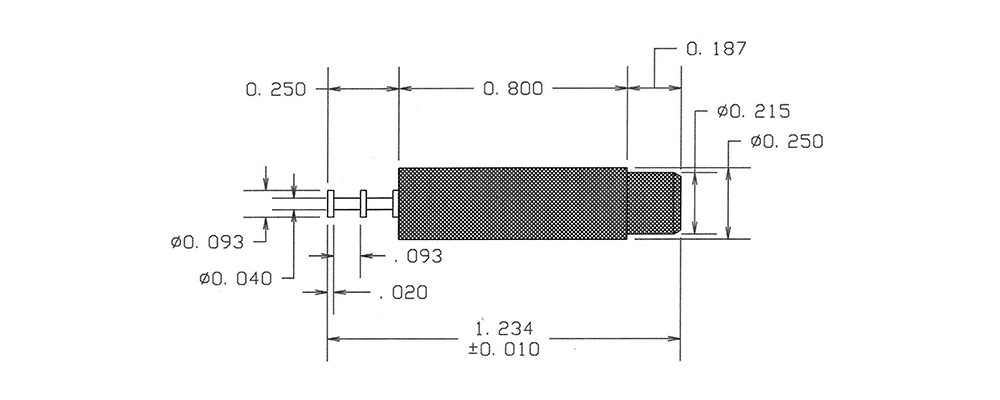

1151-51-04417
1151-51-04417
1151-51-04417
1.234" - - Press Fit 5/32 0.203 Brass Bright Tin - - PTFE Violet YES
