Commercial
Insulated
Pin Terminals

Filter
1114R-20-0417
1114R-20-0417
1114R-20-0417
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro-Tin - - PTFE Violet YES
1114R-80-0513
1114R-80-0513
1114R-80-0513
0.380" 0.055 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Orange NO
1115-06-08819
1115-06-08819
1115-06-08819
0.367" 0.040 - Press Fit 1/16 0.187 Brass Bright Tin-Lead - - PTFE White NO

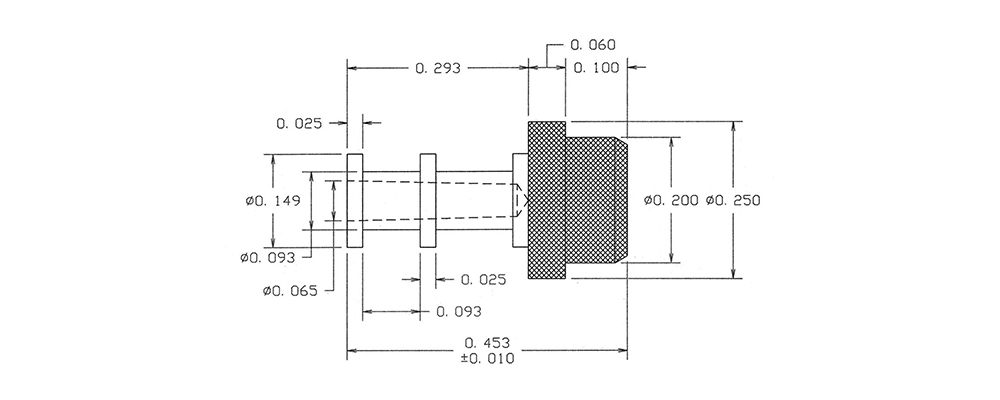

1115-51-0315
1115-51-0315
1115-51-0315
0.453" - - Press Fit 1/16 0.187 Brass Gold - - PTFE Green YES

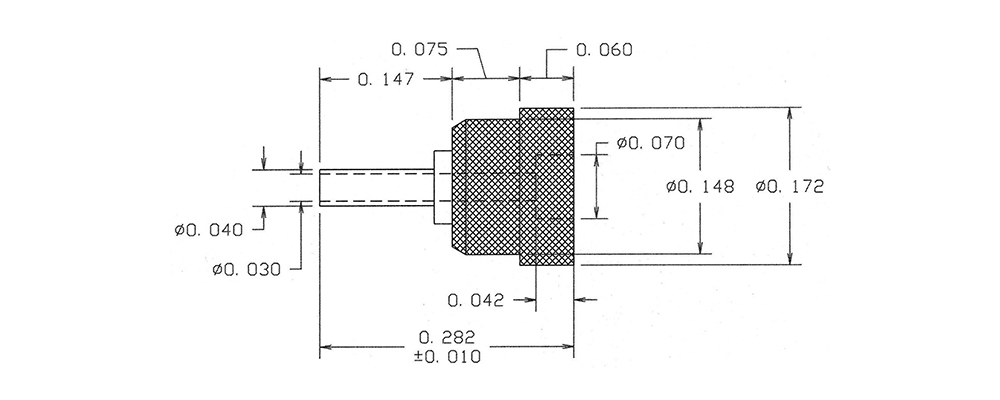

1115R-02-04411
1115R-02-04411
1115R-02-04411
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Brown NO
1116-26-0517
1116-26-0517
1116-26-0517
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO

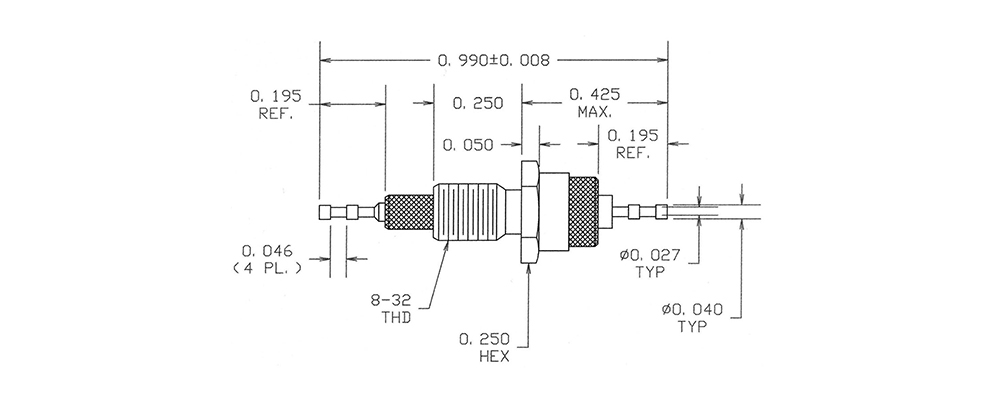

1117-16-0113
1117-16-0113
1117-16-0113
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE Orange NO

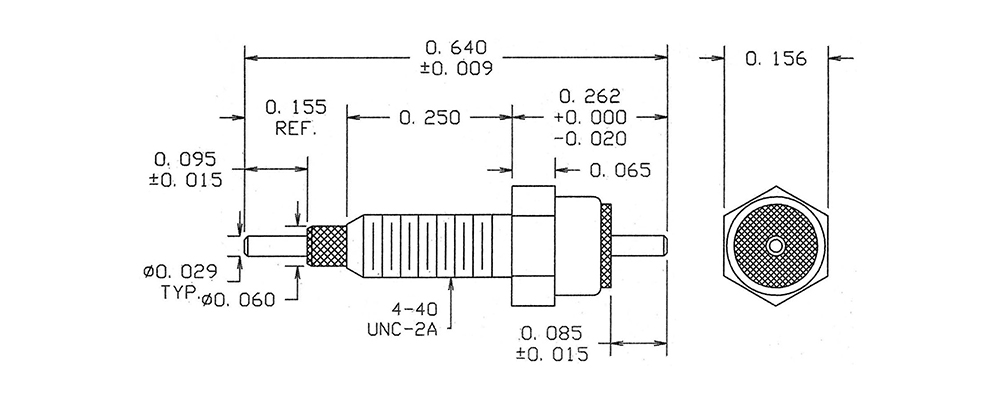

1117-50-0319
1117-50-0319
1117-50-0319
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Gold Nickel Brass PTFE White YES
1117-54-04415
1117-54-04415
1117-54-04415
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin Nickel Brass PTFE Green YES

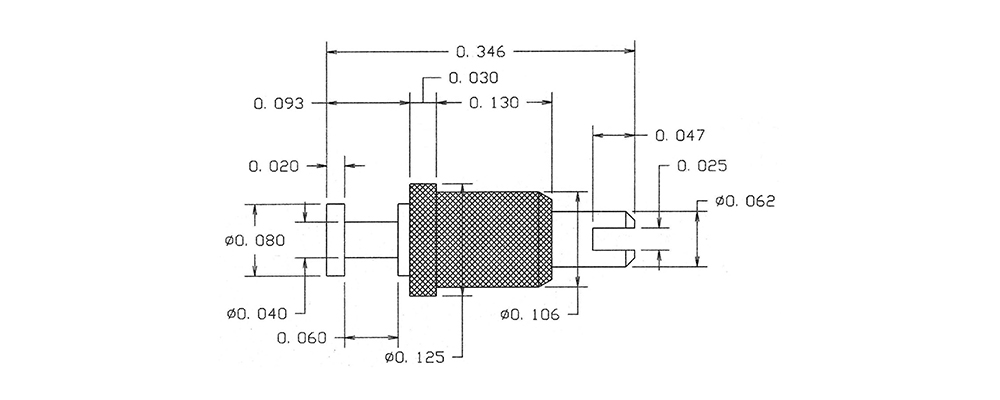

1118-32-08811
1118-32-08811
1118-32-08811
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Brown NO

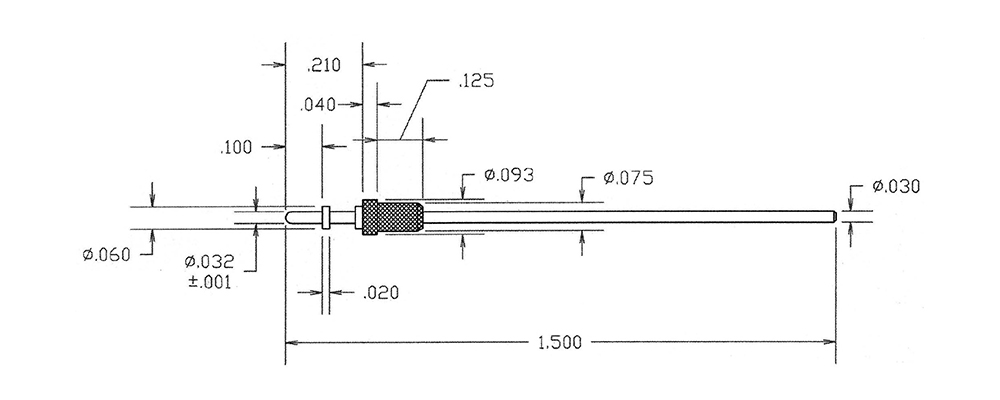

1119-25-0117
1119-25-0117
1119-25-0117
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Silver - - PTFE Violet YES

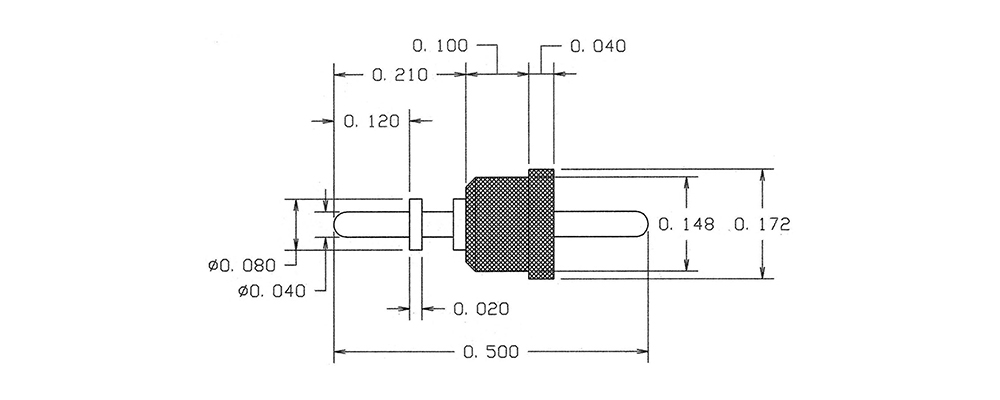

1119R-20-0413
1119R-20-0413
1119R-20-0413
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO

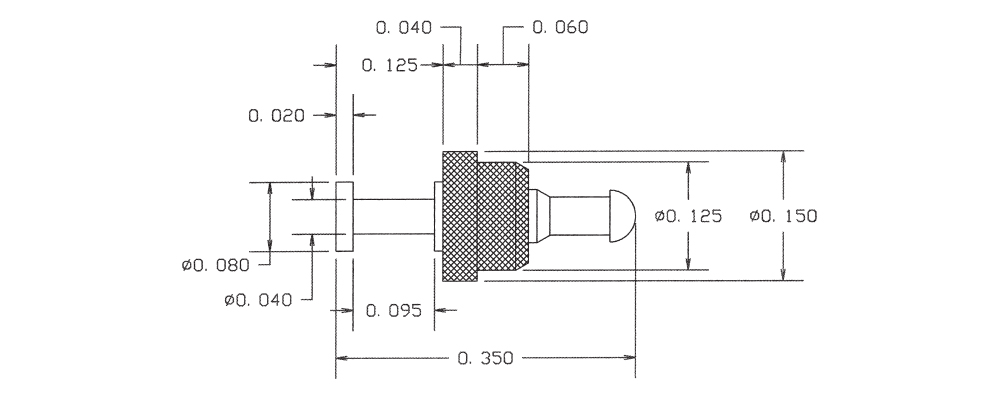

1121-02-04419
1121-02-04419
1121-02-04419
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin - - PTFE White YES
1121-06-08815
1121-06-08815
1121-06-08815
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO

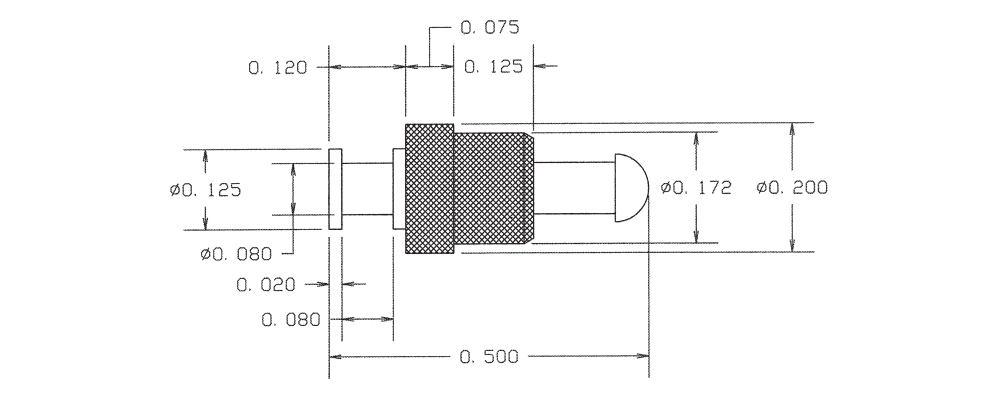

1121-12-0311
1121-12-0311
1121-12-0311
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Gold - - PTFE Brown NO

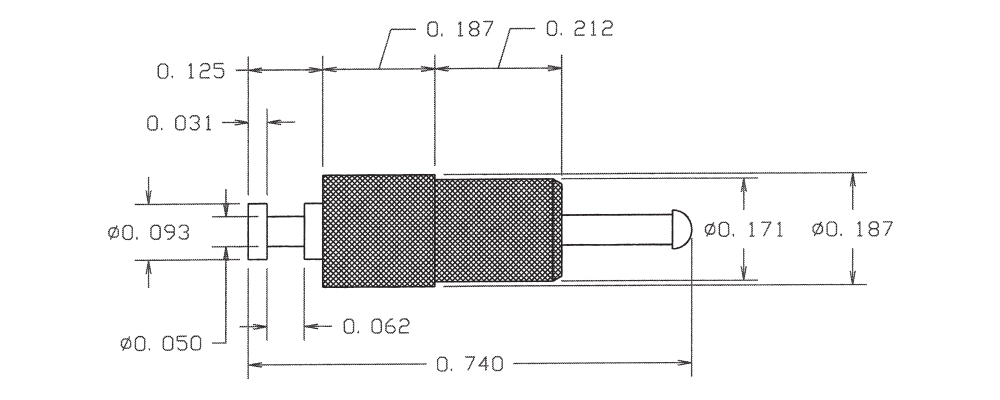

1121-16-0417
1121-16-0417
1121-16-0417
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Violet YES
1121-20-0513
1121-20-0513
1121-20-0513
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Electro Solder - - PTFE Orange NO
1121-24-08819
1121-24-08819
1121-24-08819
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Bright Tin-Lead - - PTFE White NO
1121-31-0315
1121-31-0315
1121-31-0315
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1121-52-04411
1121-52-04411
1121-52-04411
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Brown NO
