Commercial
Insulated
Pin Terminals

Filter

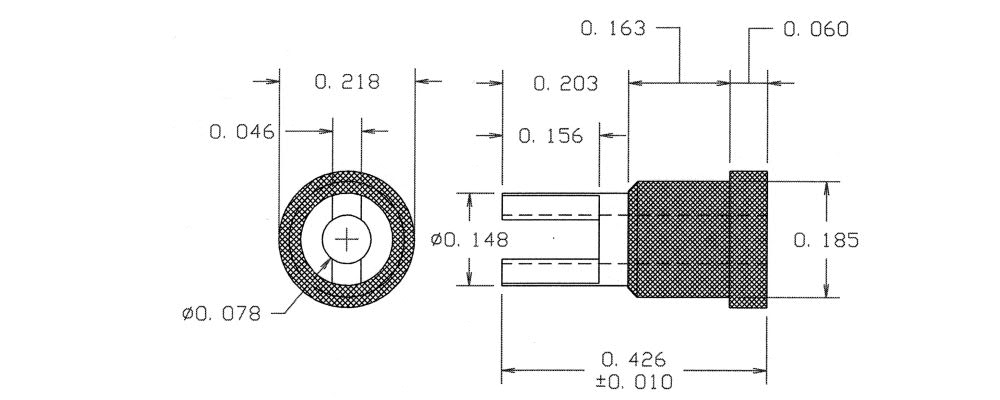

1123R-75-0117
1123R-75-0117
1123R-75-0117
0.426" - - Press Fit 1/8 0.172 Brass Silver - - PTFE Violet YES

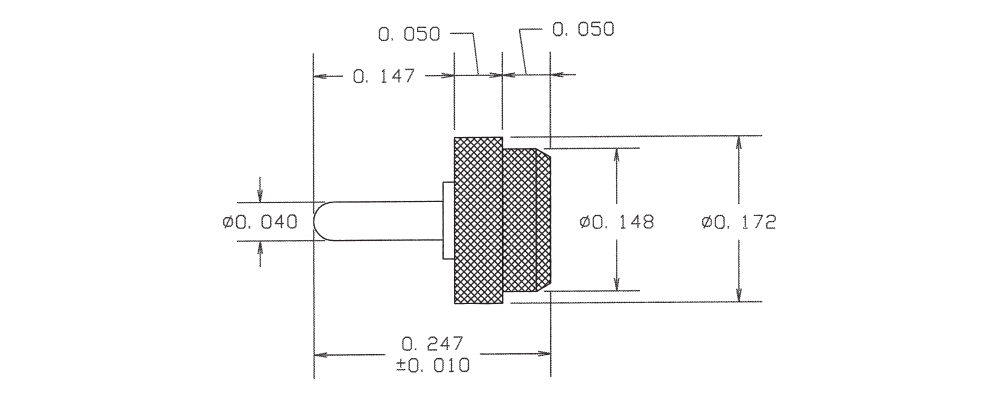

1100-18-0417
1100-18-0417
1100-18-0417
0.247" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Violet YES

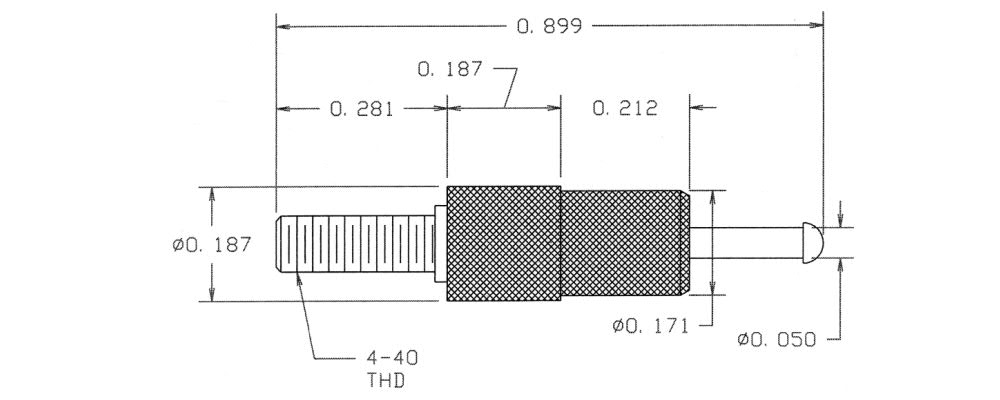

1124-10-0413
1124-10-0413
1124-10-0413
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Orange NO

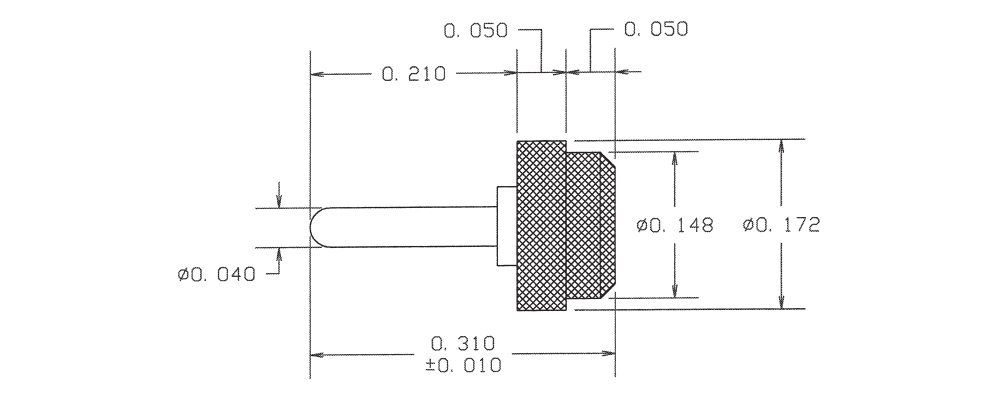

1100-22-0513
1100-22-0513
1100-22-0513
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Orange NO
1125-80-04419
1125-80-04419
1125-80-04419
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE White YES

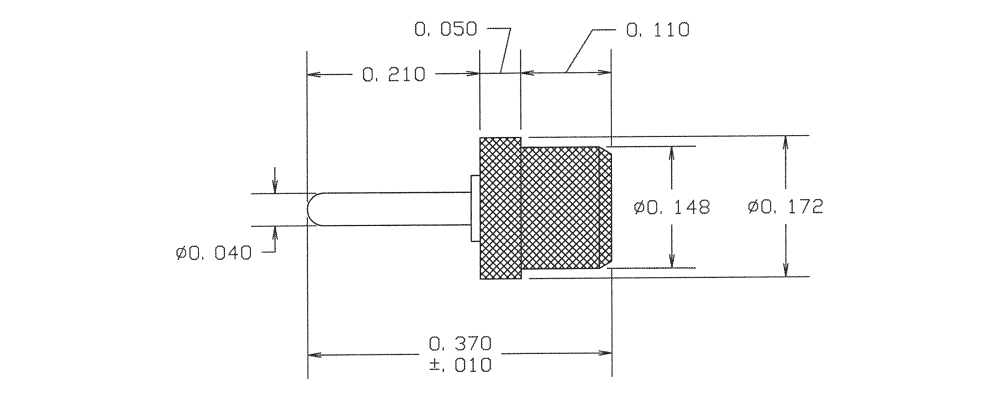

1100-32-08819
1100-32-08819
1100-32-08819
0.370" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1110-54-08815
1110-54-08815
1110-54-08815
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Green NO

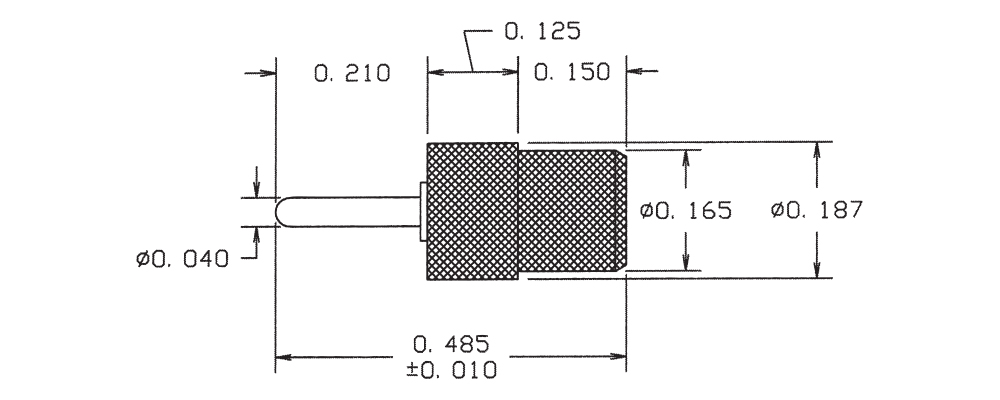

1100-43-0315
1100-43-0315
1100-43-0315
0.485" 0.040 - Press Fit 1/8 0.152 Brass Gold - - PTFE Green YES

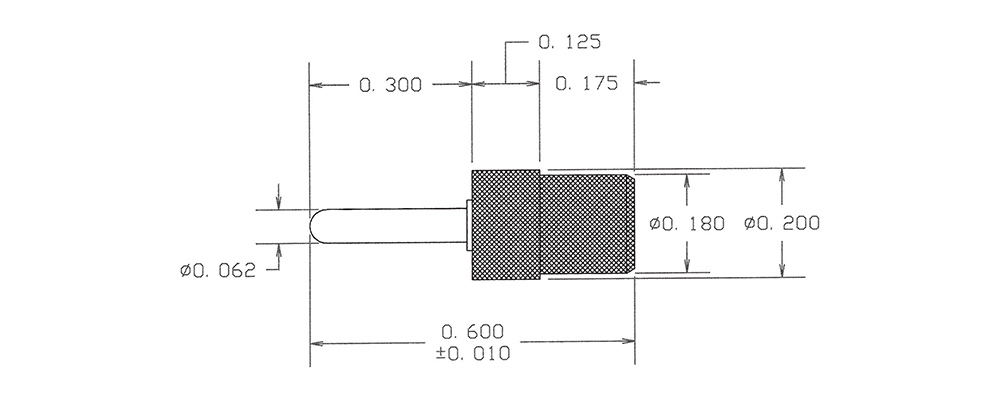

1100-48-04411
1100-48-04411
1100-48-04411
0.600" 0.062 - Press Fit 1/8 0.167 Brass Bright Tin - - PTFE Brown NO

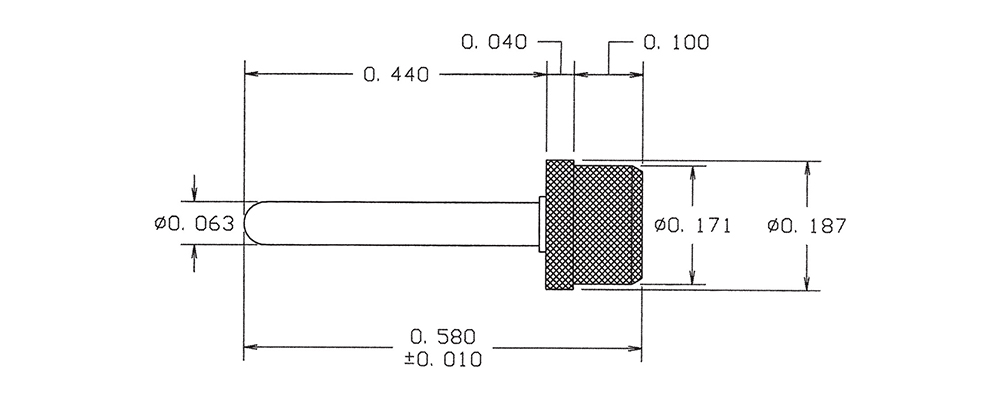

1100-73-0517
1100-73-0517
1100-73-0517
0.580" 0.063 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Violet NO

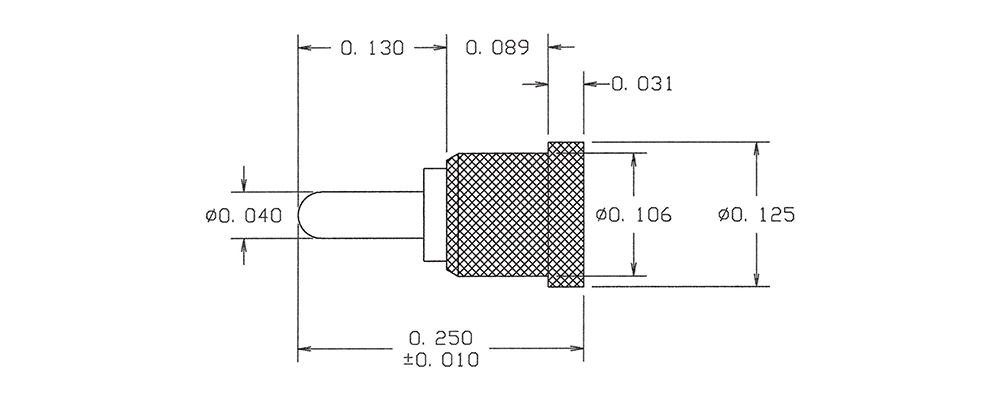

1100R-08A-0113
1100R-08A-0113
1100R-08A-0113
0.250" 0.040 - Press Fit 1/16 0.091 Brass Silver - - PTFE Orange NO

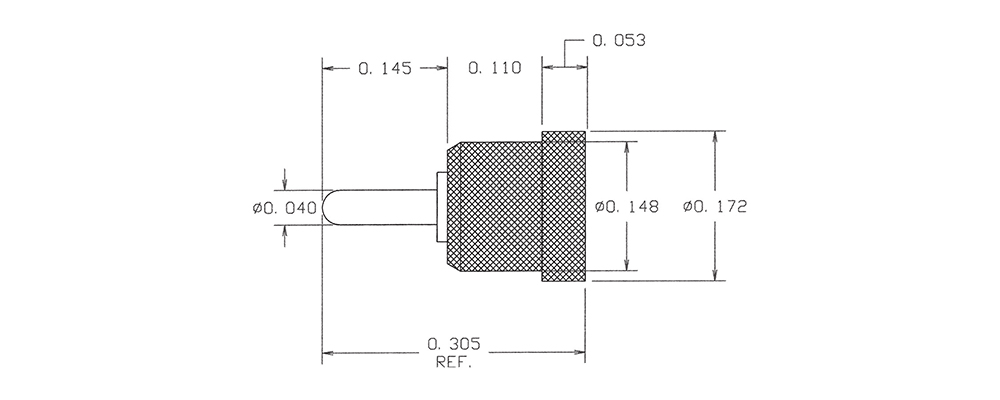

1100R-17-0319
1100R-17-0319
1100R-17-0319
0.305" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES

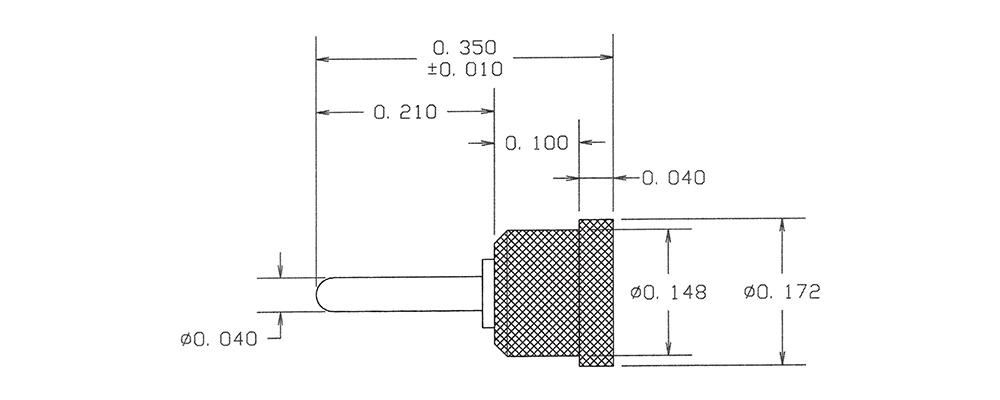

1100R-28-04415
1100R-28-04415
1100R-28-04415
0.350" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES

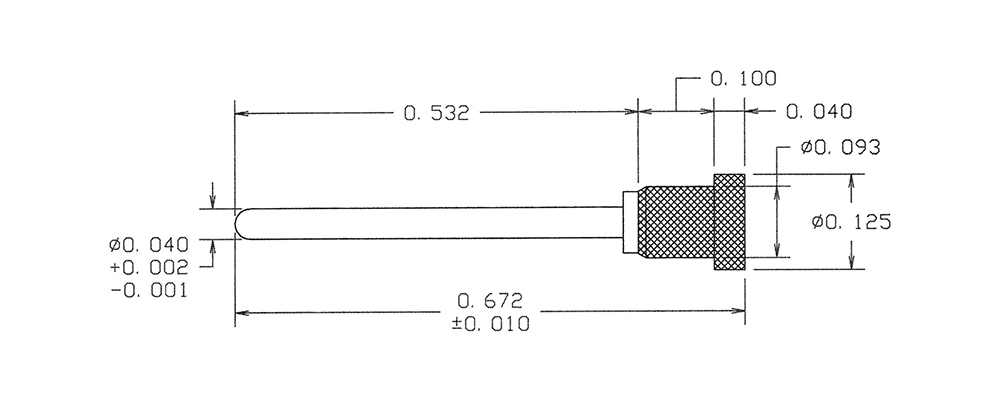

1100R-63-08811
1100R-63-08811
1100R-63-08811
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1101-05-0117
1101-05-0117
1101-05-0117
0.428" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES

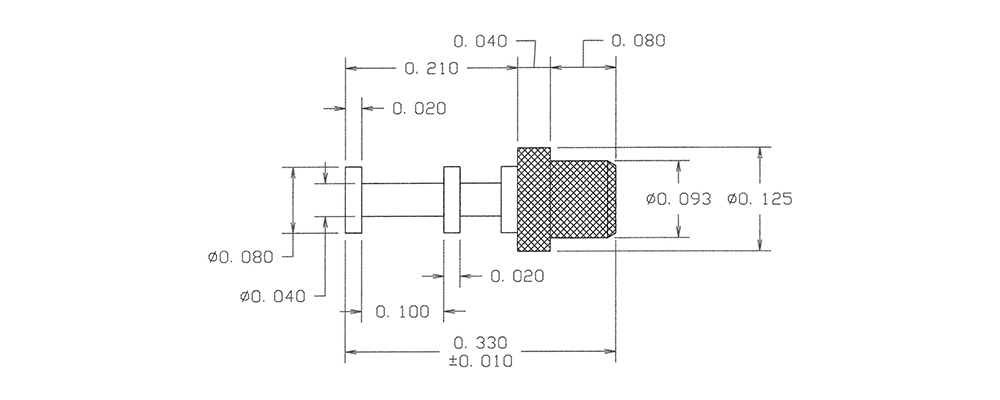

1102-02-0413
1102-02-0413
1102-02-0413
0.330" - - Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Orange NO

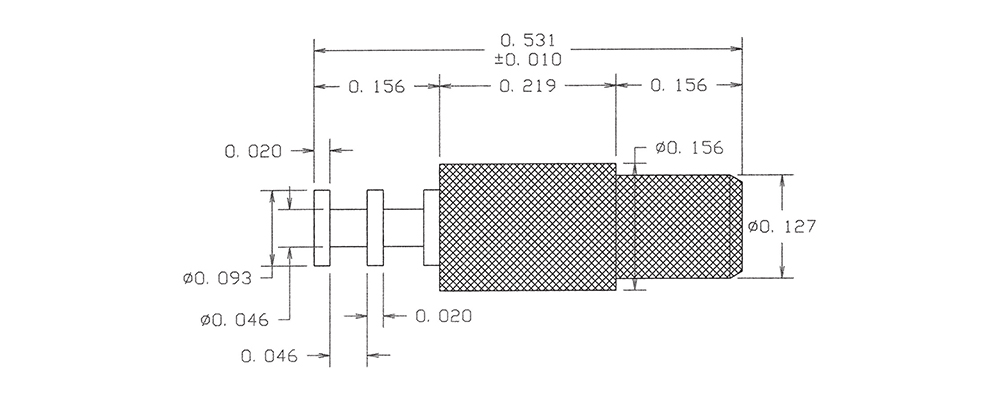

1102-06-04419
1102-06-04419
1102-06-04419
0.531" - - Press Fit 1/16 0.114 Brass Bright Tin - - PTFE White YES
1102-11-08815
1102-11-08815
1102-11-08815
0.296" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO

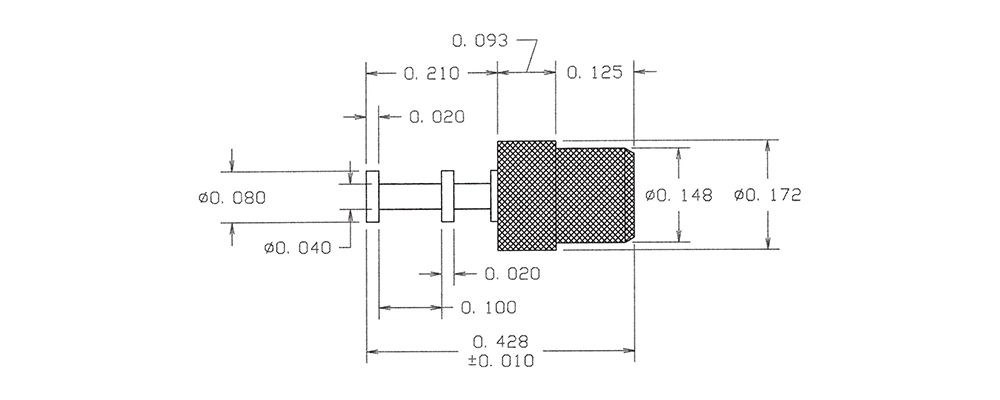

1102-16-0311
1102-16-0311
1102-16-0311
0.428" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO

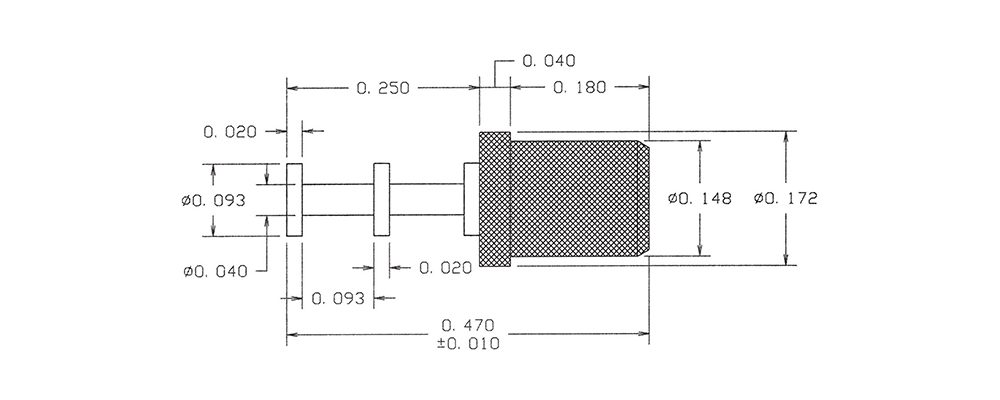

1102-22-0417
1102-22-0417
1102-22-0417
0.470" - - Press Fit 5/32 0.136 Brass Electro-Tin - - PTFE Violet YES
