Commercial
Insulated
Pin Terminals

Filter
1170-01-07512
1170-01-07512
1170-01-07512
1.375" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Red YES
1121R-01-0415
1121R-01-0415
1121R-01-0415
0.350" 0.040 Turret/Tip Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Green YES
1127-72-08817
1127-72-08817
1127-72-08817
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1123R-62-0516
1123R-62-0516
1123R-62-0516
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Blue NO
1111-50-0414
1111-50-0414
1111-50-0414
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Yellow NO
1126-34-04412
1126-34-04412
1126-34-04412
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE Red NO
1177-33-0410
1177-33-0410
1177-33-0410
0.530" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1114R-23-08811
1114R-23-08811
1114R-23-08811
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1111-16-0518
1111-16-0518
1111-16-0518
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Gray NO

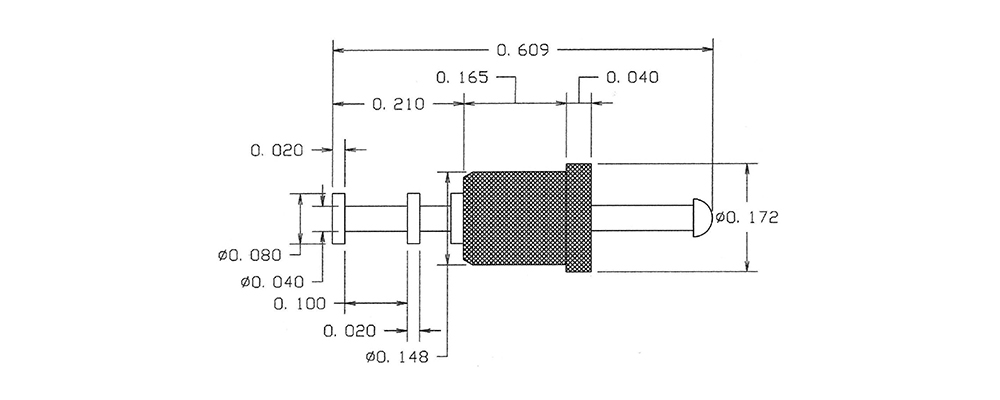

1111R-14-0314
1111R-14-0314
1111R-14-0314
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Yellow NO
1111-54-0417
1111-54-0417
1111-54-0417
0.650" - DOUBLE Turret/Turret Press Fit 3/32 0.187 Brass Electro-Tin - - PTFE Violet YES
1110-53-08817
1110-53-08817
1110-53-08817
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Violet NO
1125-52-0513
1125-52-0513
1125-52-0513
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Electro Solder Electro-Tin Brass PTFE Orange NO
1111-52-0317
1111-52-0317
1111-52-0317
0.828" 0.062 DOUBLE Turret/Tip Press Fit Up to 3/16 0.205 Brass Gold - - PTFE Violet YES
1156R-06-0315
1156R-06-0315
1156R-06-0315
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
09-2095-1-0414
09-2095-1-0414
09-2095-1-0414
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Yellow NO
09-2095-1-0415
09-2095-1-0415
09-2095-1-0415
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES
09-2095-1-0416
09-2095-1-0416
09-2095-1-0416
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Blue YES
1151-10-0316
1151-10-0316
1151-10-0316
0.415" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
09-2095-1-0418
09-2095-1-0418
09-2095-1-0418
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Gray NO
