Commercial
Insulated
Pin Terminals

Filter

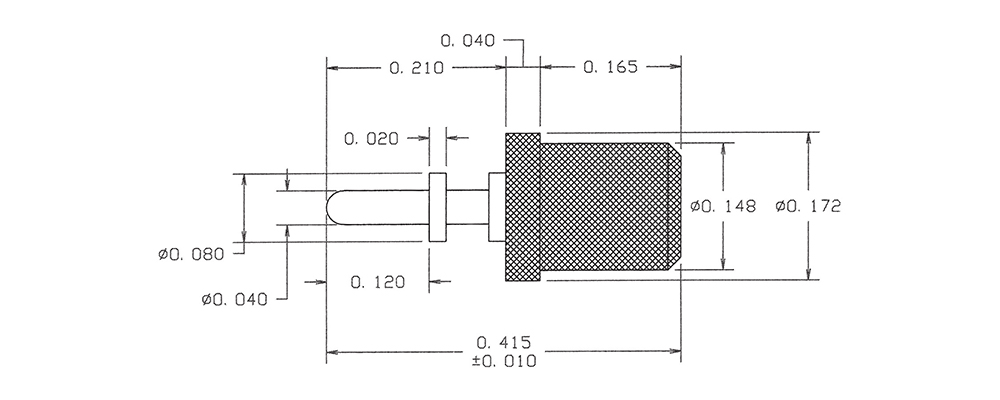

1101-04-08817
1101-04-08817
1101-04-08817
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1102-02-0313
1102-02-0313
1102-02-0313
0.330" - - Press Fit 1/32 0.086 Brass Gold - - PTFE Orange NO
1102-06-0419
1102-06-0419
1102-06-0419
0.531" - - Press Fit 1/16 0.114 Brass Electro-Tin - - PTFE White YES
1102-11-0515
1102-11-0515
1102-11-0515
0.296" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1102-16-0111
1102-16-0111
1102-16-0111
0.428" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Brown NO
1102-22-0317
1102-22-0317
1102-22-0317
0.470" - - Press Fit 5/32 0.136 Brass Gold - - PTFE Violet YES
1102-26-04413
1102-26-04413
1102-26-04413
0.296" - - Press Fit 1/16 0.140 Brass Bright Tin - - PTFE Orange NO
1102-30-0519
1102-30-0519
1102-30-0519
0.347" - - Press Fit 1/16 0.140 Brass Electro Solder - - PTFE White NO
1102-35-0115
1102-35-0115
1102-35-0115
0.656" - - Press Fit 1/16 0.152 Brass Silver - - PTFE Green YES
1102-40-0411
1102-40-0411
1102-40-0411
0.522" - - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Brown NO
1102-48-04417
1102-48-04417
1102-48-04417
0.681" - - Press Fit 5/32 0.152 Brass Bright Tin - - PTFE Violet YES
1102-52-08813
1102-52-08813
1102-52-08813
0.893" - - Press Fit 5/32 0.152 Brass Bright Tin-Lead - - PTFE Orange NO
1102-57-0119
1102-57-0119
1102-57-0119
0.706" - - Press Fit Up to 1/4 0.158 Brass Silver - - PTFE White YES
1102-61-0415
1102-61-0415
1102-61-0415
0.610" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Green YES

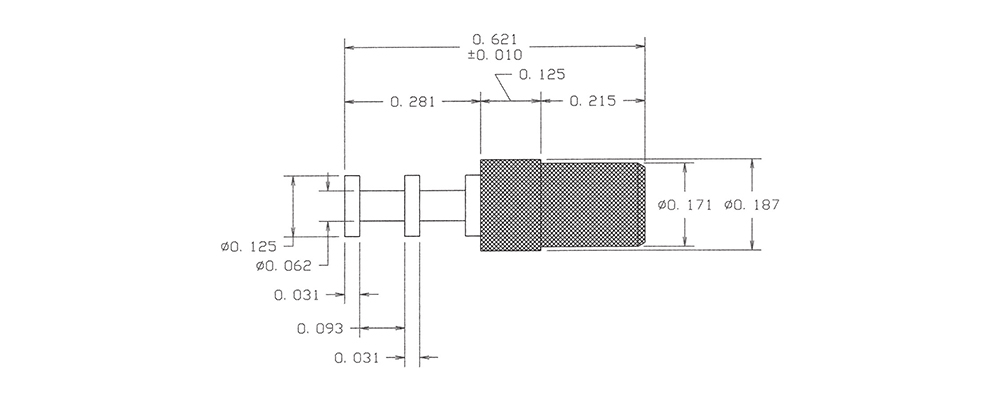

1102-66-0511
1102-66-0511
1102-66-0511
0.621" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Brown NO

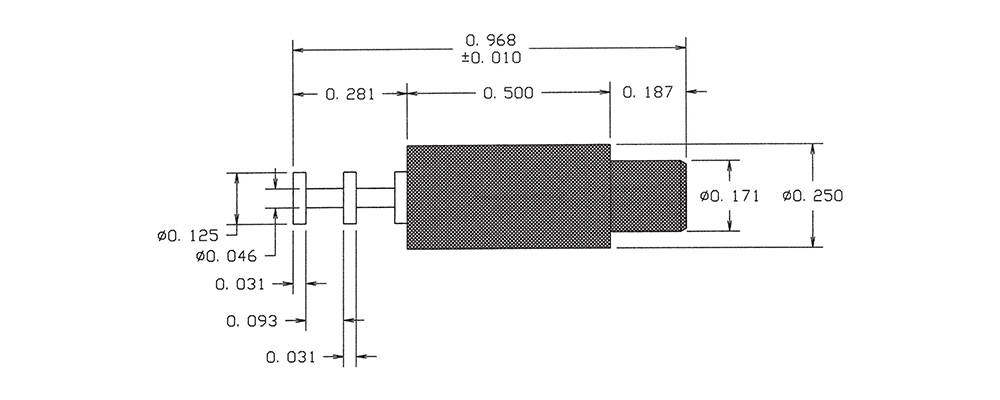

1102-70-08817
1102-70-08817
1102-70-08817
0.968" - - Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1102-76-0313
1102-76-0313
1102-76-0313
0.655" - - Press Fit Up to 3/16 0.236 Brass Gold - - PTFE Orange NO
1102-80-0419
1102-80-0419
1102-80-0419
0.843" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE White YES
1102-84-0515
1102-84-0515
1102-84-0515
0.718" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Green NO
1102-94-0111
1102-94-0111
1102-94-0111
0.649" - - Press Fit Up to 3/16 0.191 Brass Silver - - PTFE Brown NO
