Commercial
Insulated
Pin Terminals

Filter
09-2119-1-08816
09-2119-1-08816
09-2119-1-08816
1.200" 0.045 Pin/Pin Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Blue NO

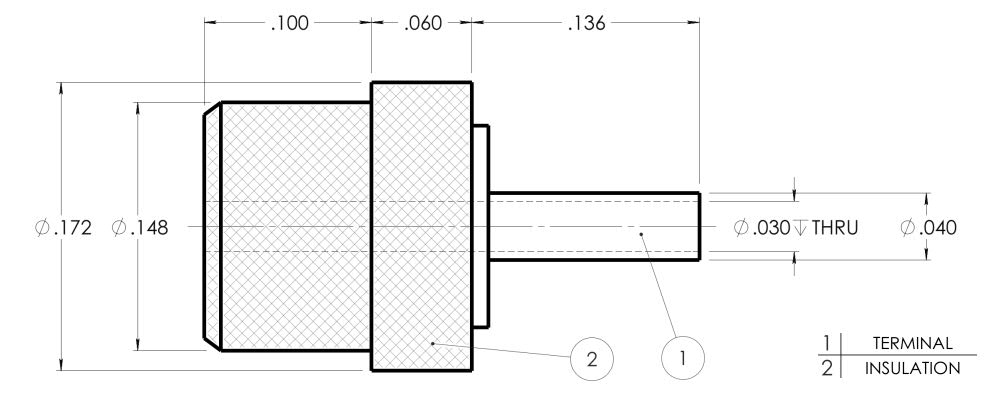

1114-16-08812
1114-16-08812
1114-16-08812
0.296" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1100-04-0312
1100-04-0312
1100-04-0312
0.250" 0.040 - Press Fit 3/64 0.086 Brass Gold - - PTFE Red NO
1114-24-0118
1114-24-0118
1114-24-0118
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO
1100-08-0418
1100-08-0418
1100-08-0418
0.250" 0.040 - Press Fit 3/64 0.091 Brass Electro-Tin - - PTFE Gray NO

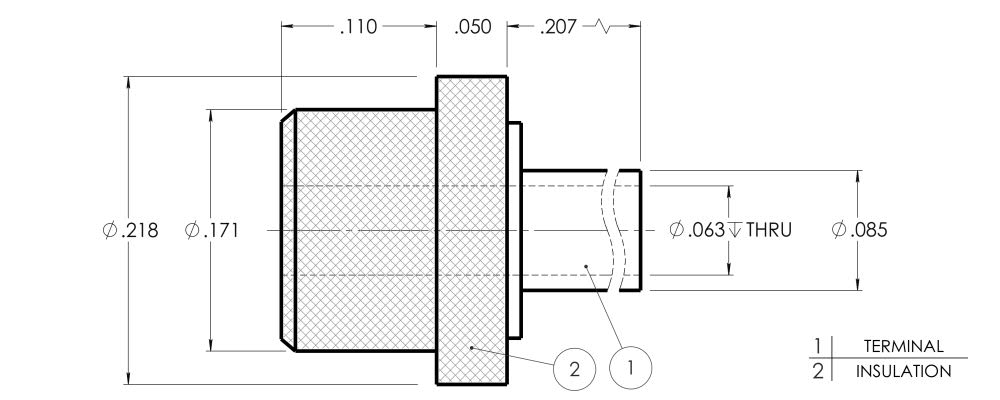

1114-27-0414
1114-27-0414
1114-27-0414
0.367" 0.085 - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Yellow NO
1100-13-0514
1100-13-0514
1100-13-0514
0.265" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1121-08-0510
1121-08-0510
1121-08-0510
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Black NO
1100-18-0110
1100-18-0110
1100-18-0110
0.247" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Black YES

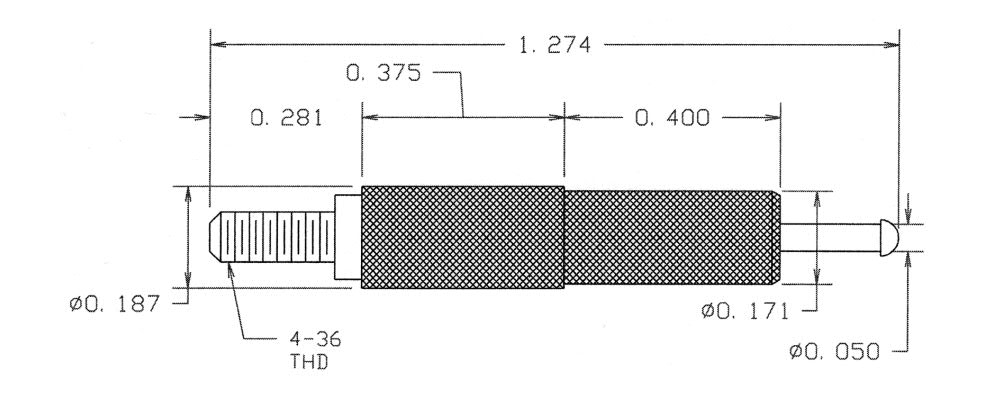

1124-03-08816
1124-03-08816
1124-03-08816
1.274" 0.050 THREAD/TIP Press Fit Up to 3/8 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1100-22-0316
1100-22-0316
1100-22-0316
0.310" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Blue YES
1125-80-0312
1125-80-0312
1125-80-0312
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Red NO
1100-32-04412
1100-32-04412
1100-32-04412
0.370" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO

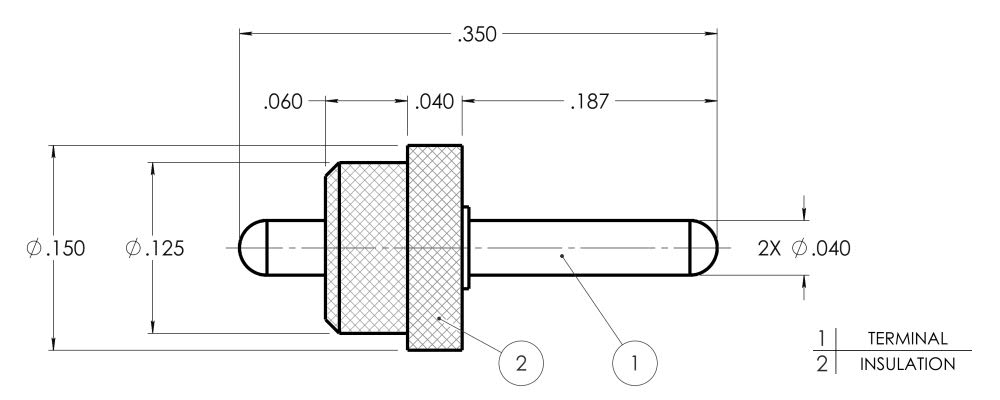

1110-54-0418
1110-54-0418
1110-54-0418
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Gray NO
1100-42-0518
1100-42-0518
1100-42-0518
0.750" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO
1100-48-0114
1100-48-0114
1100-48-0114
0.600" 0.062 - Press Fit 1/8 0.167 Brass Silver - - PTFE Yellow NO
1100-73-0410
1100-73-0410
1100-73-0410
0.580" 0.063 - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Black YES
1100R-08-04416
1100R-08-04416
1100R-08-04416
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Blue YES
1100R-14-08812
1100R-14-08812
1100R-14-08812
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1100R-28-0118
1100R-28-0118
1100R-28-0118
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO
