Commercial
Insulated
Pin Terminals

Filter
1125-10-04415
1125-10-04415
1125-10-04415
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Green YES

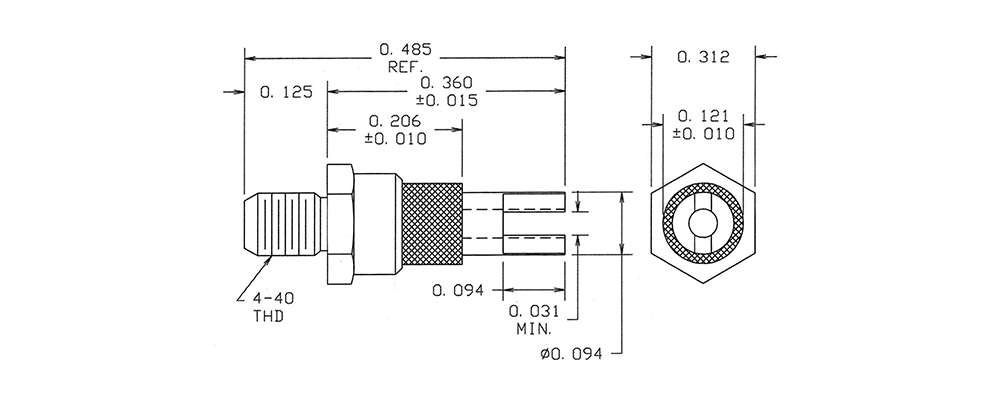

1125-14-08811
1125-14-08811
1125-14-08811
0.485" - - 4-40 1/8 4-40 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO
1125-19-0117
1125-19-0117
1125-19-0117
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Silver Electro-Tin Brass PTFE Violet YES
1125-23-0413
1125-23-0413
1125-23-0413
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Orange NO
1125-27-04419
1125-27-04419
1125-27-04419
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE White YES
1125-31-08815
1125-31-08815
1125-31-08815
0.630" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead Electro-Tin Brass PTFE Green NO
1100-47-0311
1100-47-0311
1100-47-0311
0.350" 0.040 - Press Fit 1/16 0.166 Brass Gold - - PTFE Brown NO
1100R-22-0417
1100R-22-0417
1100R-22-0417
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1100R-33-0513
1100R-33-0513
1100R-33-0513
0.382" 0.045 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Orange NO

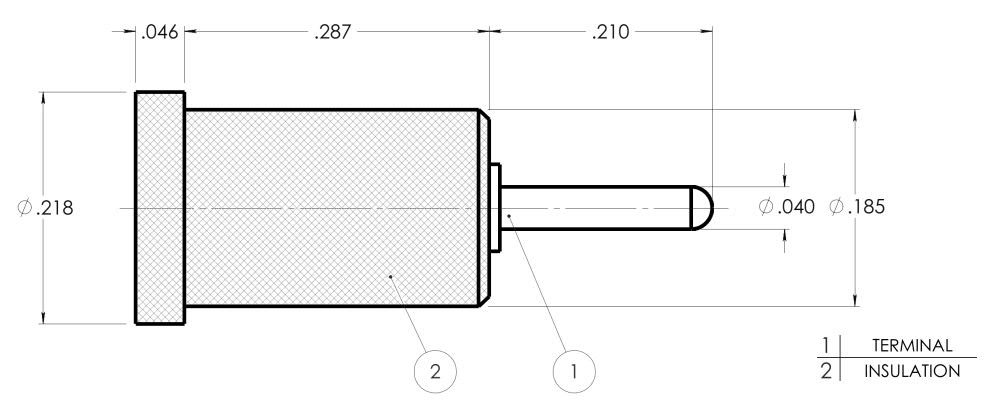

1100R-52-08819
1100R-52-08819
1100R-52-08819
0.543" 0.040 - Press Fit 7/32 0.172 Brass Bright Tin-Lead - - PTFE White NO
1100R-70-0315
1100R-70-0315
1100R-70-0315
0.750" 0.040 - Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES
1102-43-04411
1102-43-04411
1102-43-04411
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Brown NO
09-2039-1-08812
09-2039-1-08812
09-2039-1-08812
0.400" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1104R-53-0518
1104R-53-0518
1104R-53-0518
0.555" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Gray NO
09-2094-1-0118
09-2094-1-0118
09-2094-1-0118
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Silver - - PTFE Gray NO

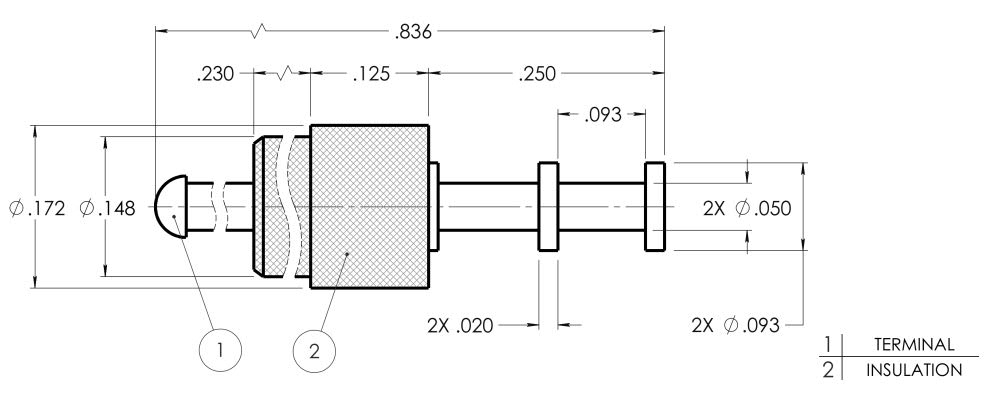

1111-19-0114
1111-19-0114
1111-19-0114
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Silver - - PTFE Yellow NO
09-2101-1-0414
09-2101-1-0414
09-2101-1-0414
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Electro-Tin - - PTFE Yellow NO

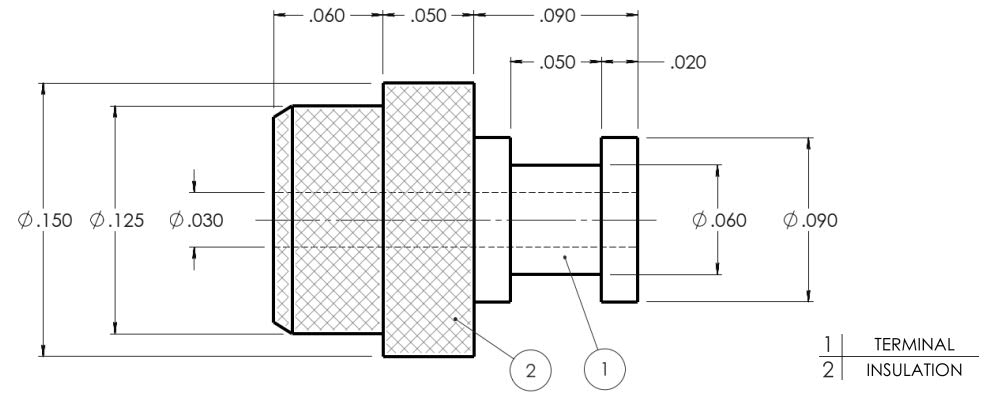

1112-05-0410
1112-05-0410
1112-05-0410
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Black YES
09-2111-1-0510
09-2111-1-0510
09-2111-1-0510
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder Nickel Brass PTFE Black NO
1112-20-04416
1112-20-04416
1112-20-04416
0.333" - - Press Fit 1/8 0.250 Brass Bright Tin - - PTFE Blue YES
