Commercial
Insulated
Pin Terminals

Filter
1121-08-04419
1121-08-04419
1121-08-04419
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin - - PTFE White YES
1100-17-08819
1100-17-08819
1100-17-08819
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1124-03-08815
1124-03-08815
1124-03-08815
1.274" 0.050 THREAD/TIP Press Fit Up to 3/8 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1100-22-0315
1100-22-0315
1100-22-0315
0.310" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Green YES
1125-80-0311
1125-80-0311
1125-80-0311
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Brown NO
1100-32-04411
1100-32-04411
1100-32-04411
0.370" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO

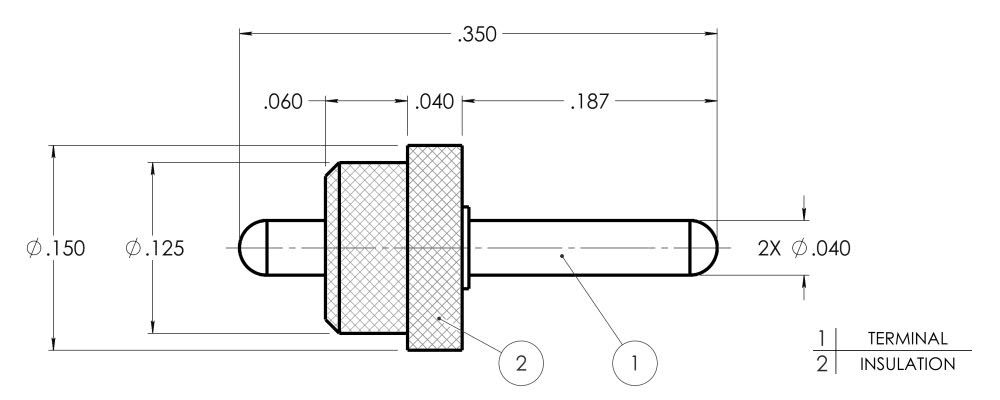

1110-54-0417
1110-54-0417
1110-54-0417
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Violet YES
1100-42-0517
1100-42-0517
1100-42-0517
0.750" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1100-48-0113
1100-48-0113
1100-48-0113
0.600" 0.062 - Press Fit 1/8 0.167 Brass Silver - - PTFE Orange NO
1100-73-0319
1100-73-0319
1100-73-0319
0.580" 0.063 - Press Fit 1/16 0.158 Brass Gold - - PTFE White YES
1100R-08-04415
1100R-08-04415
1100R-08-04415
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Green YES
1100R-14-08811
1100R-14-08811
1100R-14-08811
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1100R-28-0117
1100R-28-0117
1100R-28-0117
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1100R-63-0413
1100R-63-0413
1100R-63-0413
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Orange NO
1101-04-04419
1101-04-04419
1101-04-04419
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE White YES
1102-01-08815
1102-01-08815
1102-01-08815
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Green NO
1102-06-0311
1102-06-0311
1102-06-0311
0.531" - - Press Fit 1/16 0.114 Brass Gold - - PTFE Brown NO
1102-11-0417
1102-11-0417
1102-11-0417
0.296" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1102-15-0513
1102-15-0513
1102-15-0513
0.375" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Orange NO
1102-21-08819
1102-21-08819
1102-21-08819
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO
