Commercial
Insulated
Pin Terminals

Filter
1177-02-0116
1177-02-0116
1177-02-0116
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Silver - - PTFE Blue YES
1177-11-0412
1177-11-0412
1177-11-0412
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1177-31-04418
1177-31-04418
1177-31-04418
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1177-35-08814
1177-35-08814
1177-35-08814
0.550" 0.040 DOUBLE Turret/Tip PRESS LOCK 7/64 - 9/64 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1177-52-0310
1177-52-0310
1177-52-0310
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Gold - - PTFE Black YES
1177-56-0416
1177-56-0416
1177-56-0416
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Electro-Tin - - PTFE Blue YES
1177-60-0512
1177-60-0512
1177-60-0512
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Red NO
1178R-02-08818
1178R-02-08818
1178R-02-08818
0.445" 0.040 - PRESS LOCK 1/32 - 3/32 0.134 Brass Bright Tin-Lead - - PTFE Gray NO
1178R-10-0314
1178R-10-0314
1178R-10-0314
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Gold - - PTFE Yellow NO
1178R-14-04410
1178R-14-04410
1178R-14-04410
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin - - PTFE Black YES

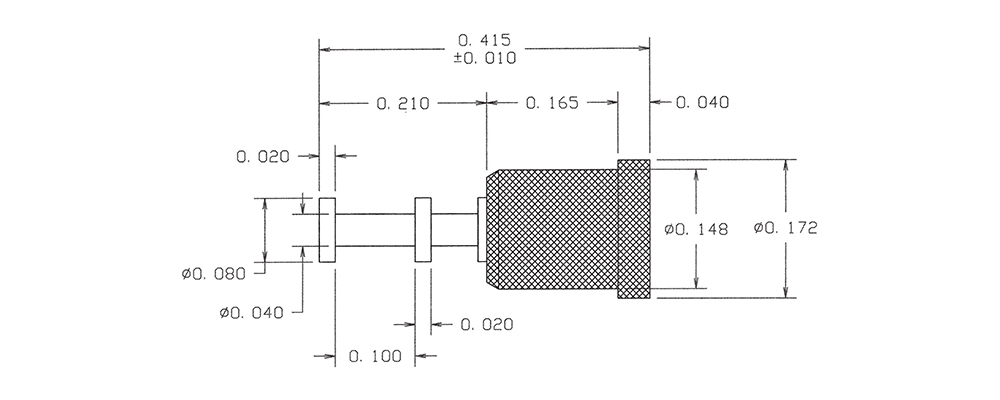

1102R-93-0516
1102R-93-0516
1102R-93-0516
0.415" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Blue NO
1125-02-0112
1125-02-0112
1125-02-0112
0.578" - - 2-56 Nut 7/64 0.094 Brass Silver Electro-Tin Brass PTFE Red NO
1125-06-0318
1125-06-0318
1125-06-0318
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Gray NO
1125-10-04414
1125-10-04414
1125-10-04414
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Yellow NO

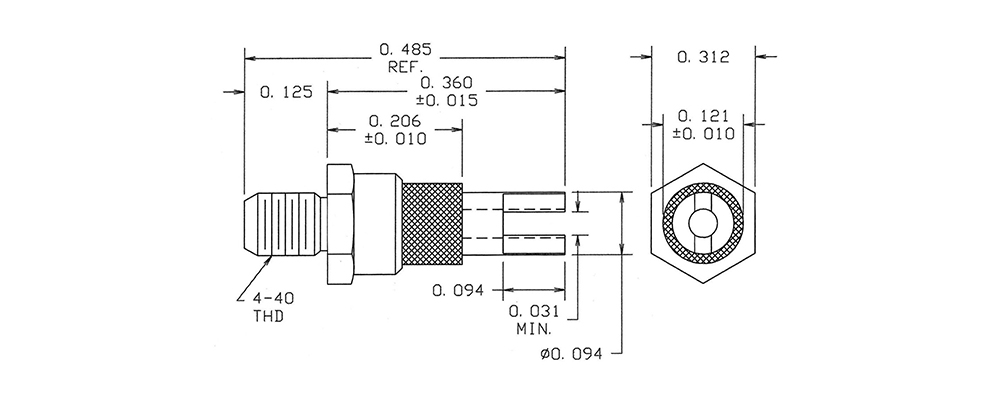

1125-14-08810
1125-14-08810
1125-14-08810
0.485" - - 4-40 1/8 4-40 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE Black NO
1125-19-0116
1125-19-0116
1125-19-0116
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Silver Electro-Tin Brass PTFE Blue YES
1125-23-0412
1125-23-0412
1125-23-0412
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Red NO
1125-27-04418
1125-27-04418
1125-27-04418
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE Gray NO
1125-31-08814
1125-31-08814
1125-31-08814
0.630" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead Electro-Tin Brass PTFE Yellow NO
1100-47-0310
1100-47-0310
1100-47-0310
0.350" 0.040 - Press Fit 1/16 0.166 Brass Gold - - PTFE Black YES
