Commercial
Insulated
Pin Terminals

Filter

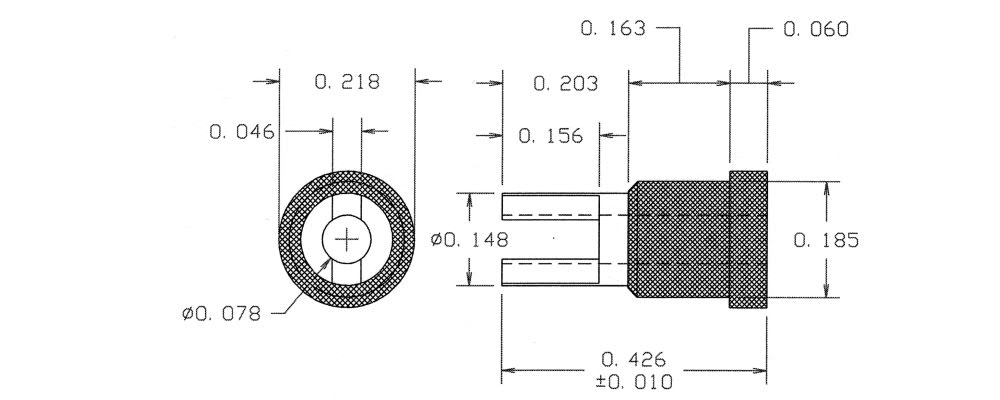

1123R-75-0417
1123R-75-0417
1123R-75-0417
0.426" - - Press Fit 1/8 0.172 Brass Electro-Tin - - PTFE Violet YES
1100-18-0517
1100-18-0517
1100-18-0517
0.247" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Violet NO

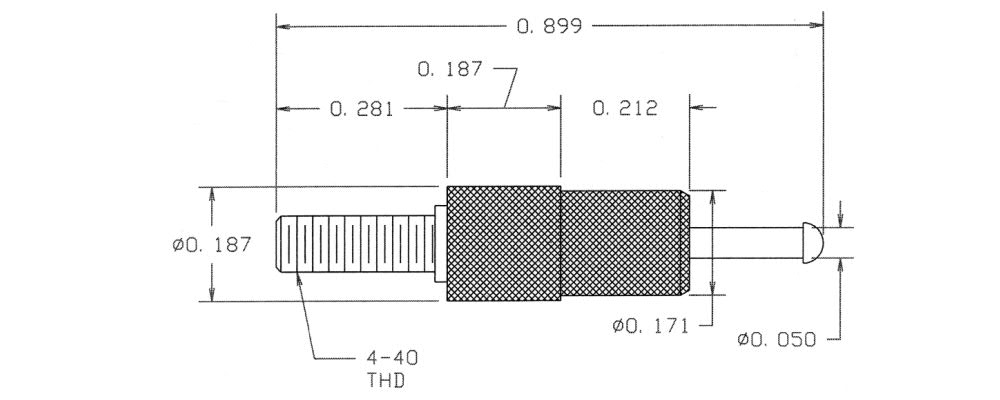

1124-10-0513
1124-10-0513
1124-10-0513
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Orange NO

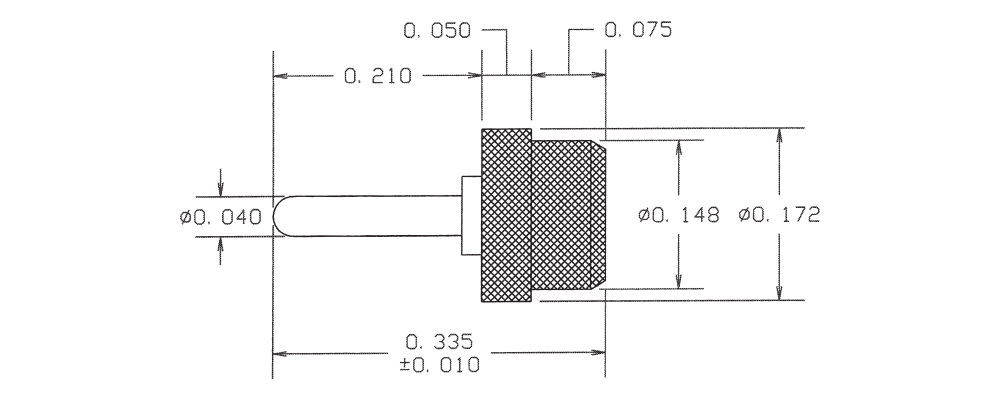

1100-24-0113
1100-24-0113
1100-24-0113
0.335" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Orange NO
1125-80-08819
1125-80-08819
1125-80-08819
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE White NO
1100-34-0319
1100-34-0319
1100-34-0319
0.410" 0.040 - Press Fit 1/8 0.136 Brass Gold - - PTFE White YES

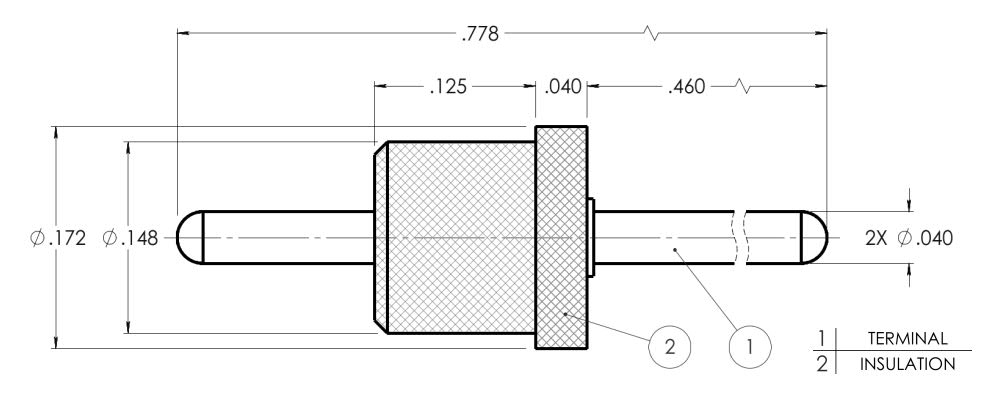

1110-95-0315
1110-95-0315
1110-95-0315
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES

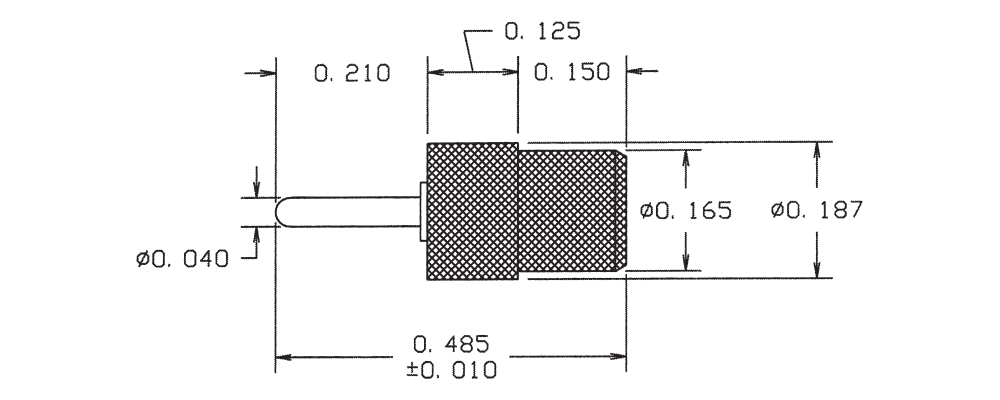

1100-43-04415
1100-43-04415
1100-43-04415
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Green YES

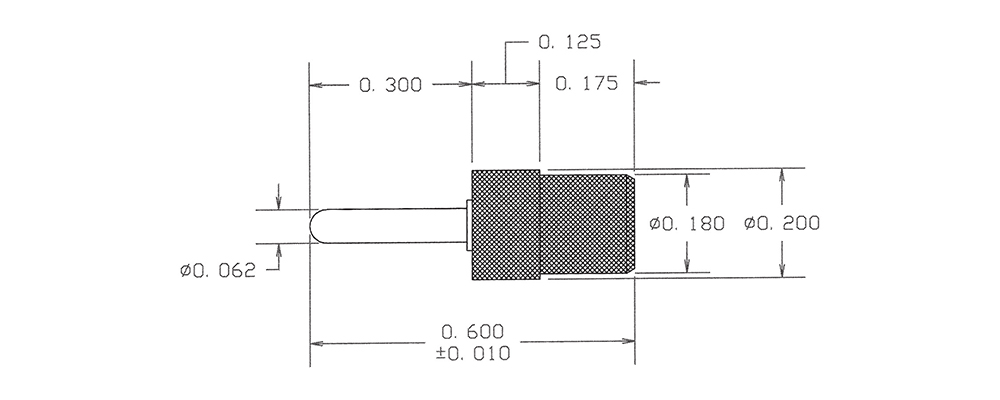

1100-48-08811
1100-48-08811
1100-48-08811
0.600" 0.062 - Press Fit 1/8 0.167 Brass Bright Tin-Lead - - PTFE Brown NO

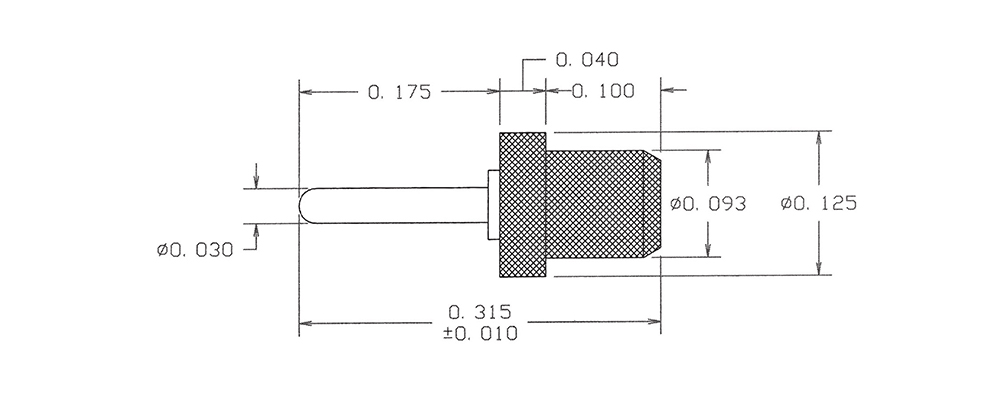

1100-93-0117
1100-93-0117
1100-93-0117
0.315" 0.030 - Press Fit 1/16 0.086 Brass Silver - - PTFE Violet YES
1100R-08A-0413
1100R-08A-0413
1100R-08A-0413
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro-Tin - - PTFE Orange NO
1100R-17-04419
1100R-17-04419
1100R-17-04419
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES

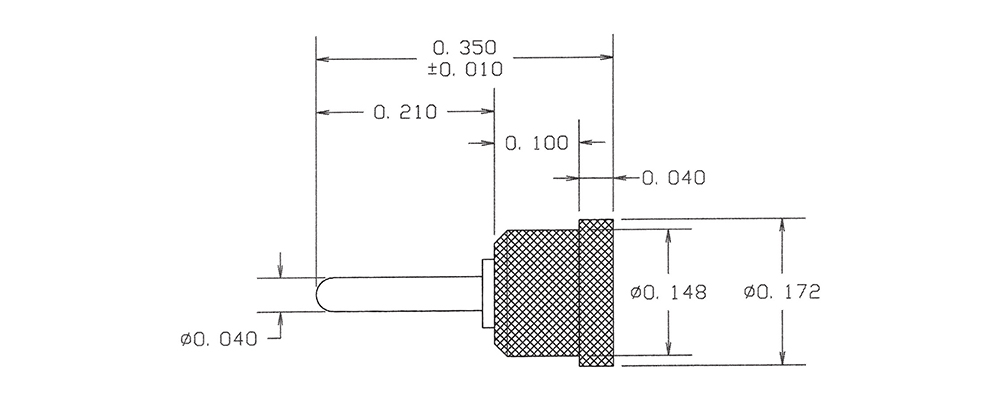

1100R-28-08815
1100R-28-08815
1100R-28-08815
0.350" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO

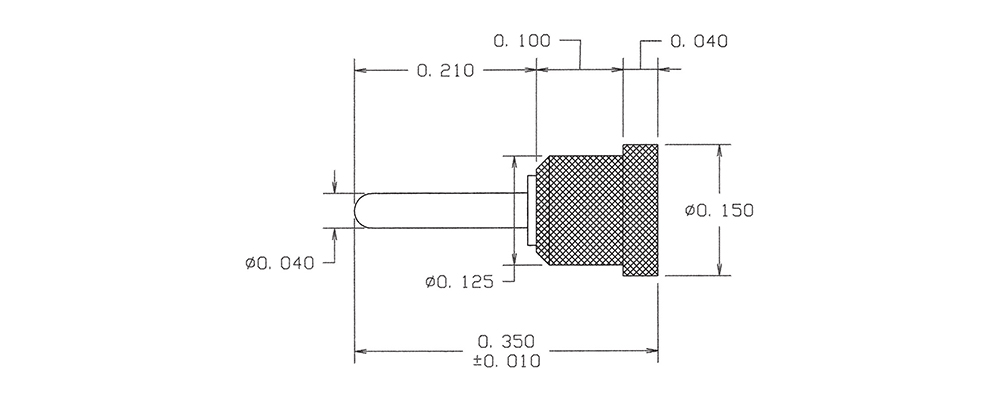

1100R-66-0311
1100R-66-0311
1100R-66-0311
0.350" 0.040 - Press Fit 1/16 0.113 Brass Gold - - PTFE Brown NO

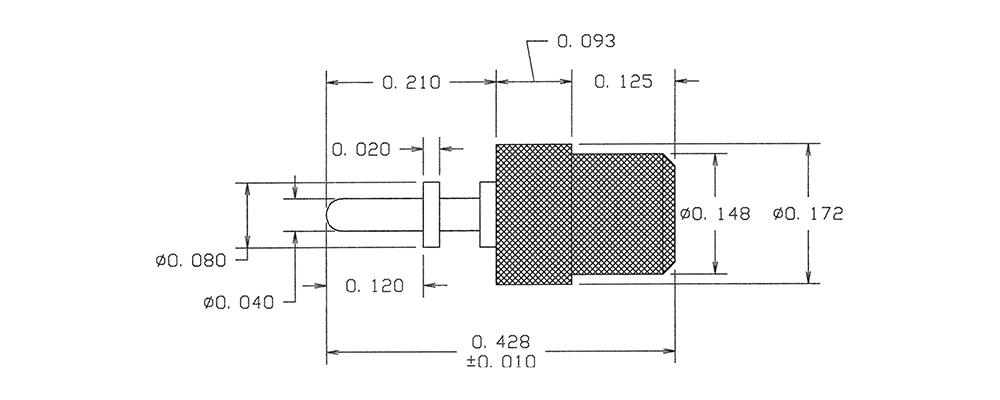

1101-05-0417
1101-05-0417
1101-05-0417
0.428" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1102-02-0513
1102-02-0513
1102-02-0513
0.330" - - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Orange NO

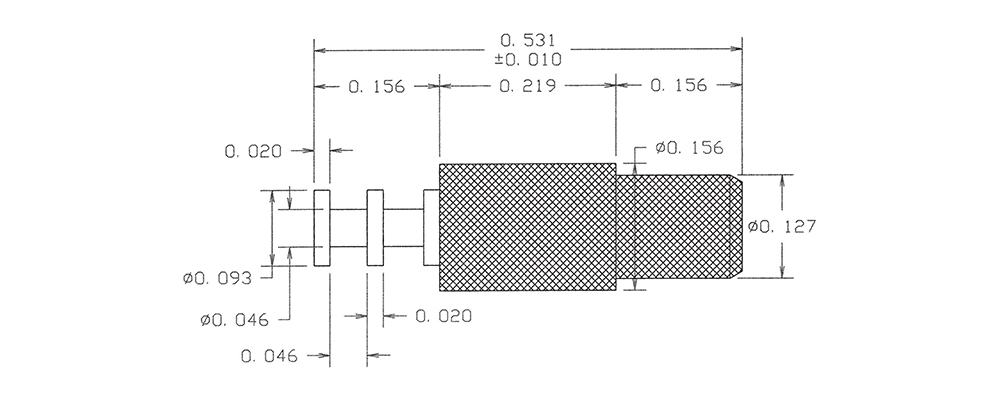

1102-06-08819
1102-06-08819
1102-06-08819
0.531" - - Press Fit 1/16 0.114 Brass Bright Tin-Lead - - PTFE White NO
1102-12-0315
1102-12-0315
1102-12-0315
0.334" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES
1102-16-04411
1102-16-04411
1102-16-04411
0.428" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Brown NO

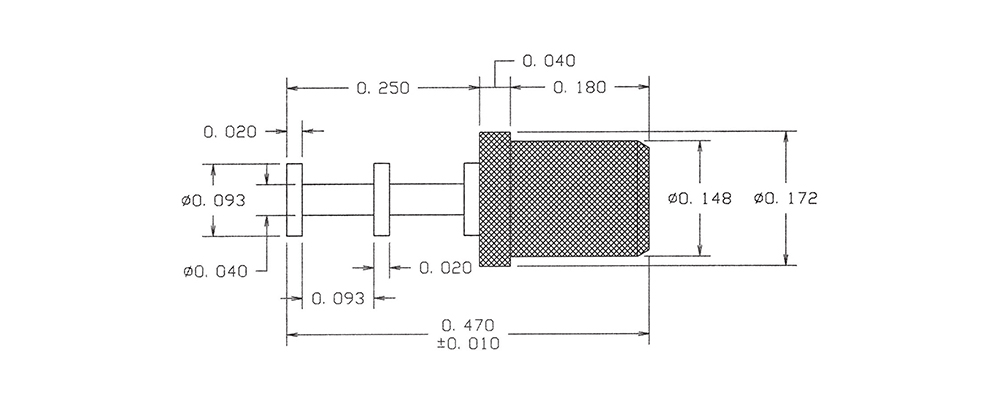

1102-22-0517
1102-22-0517
1102-22-0517
0.470" - - Press Fit 5/32 0.136 Brass Electro Solder - - PTFE Violet NO
