Commercial
Insulated
Pin Terminals

Filter
1125-23-0314
1125-23-0314
1125-23-0314
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Gold Electro-Tin Brass PTFE Yellow NO
1125-27-04410
1125-27-04410
1125-27-04410
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-31-0516
1125-31-0516
1125-31-0516
0.630" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder Electro-Tin Brass PTFE Blue NO
1100-47-0112
1100-47-0112
1100-47-0112
0.350" 0.040 - Press Fit 1/16 0.166 Brass Silver - - PTFE Red NO
1100R-22-0318
1100R-22-0318
1100R-22-0318
0.310" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Gray NO

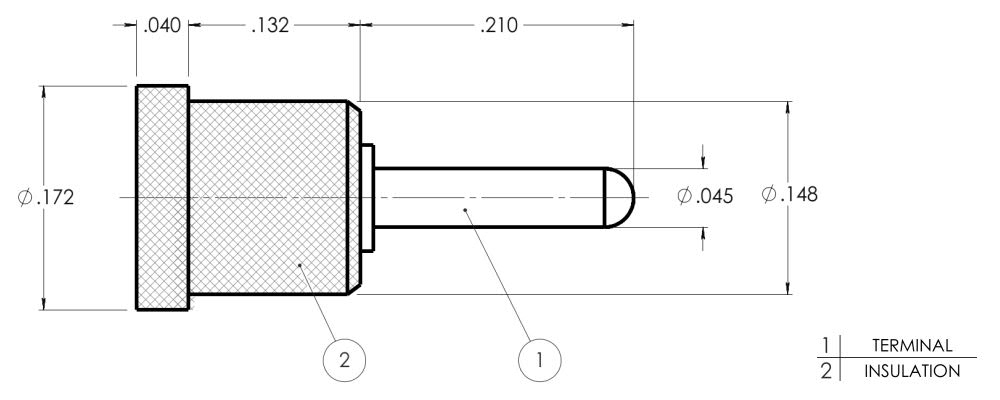

1100R-33-04414
1100R-33-04414
1100R-33-04414
0.382" 0.045 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1100R-52-08810
1100R-52-08810
1100R-52-08810
0.543" 0.040 - Press Fit 7/32 0.172 Brass Bright Tin-Lead - - PTFE Black NO
1100R-70-0116
1100R-70-0116
1100R-70-0116
0.750" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Blue YES
1102-43-0412
1102-43-0412
1102-43-0412
0.796" - - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Red NO
09-2039-1-0513
09-2039-1-0513
09-2039-1-0513
0.400" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1104R-53-04419
1104R-53-04419
1104R-53-04419
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE White YES
09-2090-1-08819
09-2090-1-08819
09-2090-1-08819
1.260" 0.040 (+0.001/-0.005) Pin/Pin Press Fit 1/32 0.076 Brass Bright Tin-Lead - - PTFE White NO

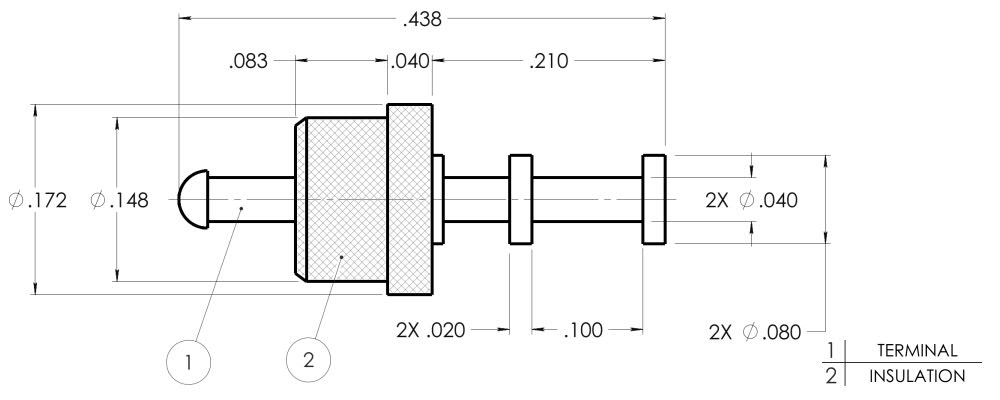

1111-06-08815
1111-06-08815
1111-06-08815
0.438" 0.040 DOUBLE Turret/Tip Press Fit 3/64 0.136 Brass Bright Tin-Lead - - PTFE Green NO
09-2101-1-0315
09-2101-1-0315
09-2101-1-0315
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Gold - - PTFE Green YES
1112-05-0311
1112-05-0311
1112-05-0311
0.200" - - Press Fit 1/32 0.113 Brass Gold - - PTFE Brown NO
09-2111-1-04411
09-2111-1-04411
09-2111-1-04411
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin Nickel Brass PTFE Brown NO

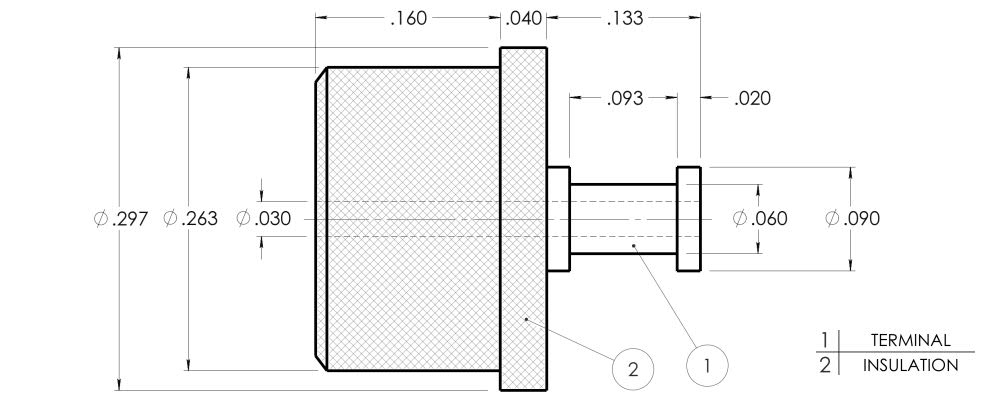

1112-20-0417
1112-20-0417
1112-20-0417
0.333" - - Press Fit 1/8 0.250 Brass Electro-Tin - - PTFE Violet YES
09-2119-1-0517
09-2119-1-0517
09-2119-1-0517
1.200" 0.045 Pin/Pin Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Violet NO

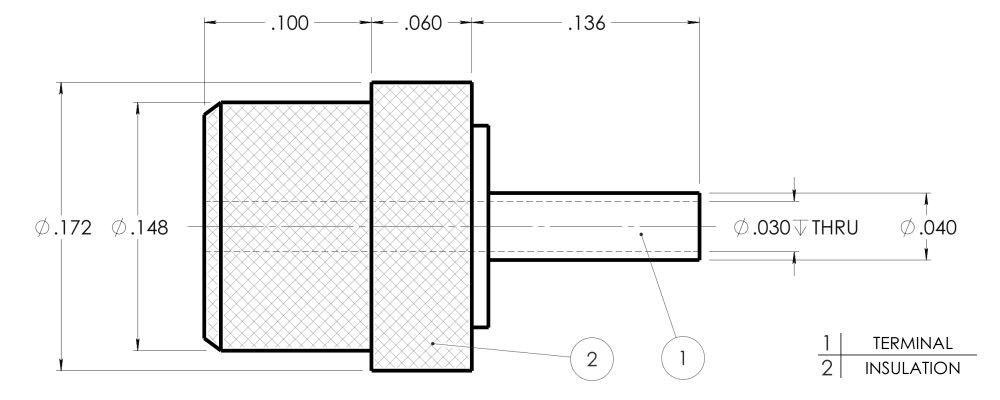

1114-16-0513
1114-16-0513
1114-16-0513
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1100-04-0113
1100-04-0113
1100-04-0113
0.250" 0.040 - Press Fit 3/64 0.086 Brass Silver - - PTFE Orange NO
