Commercial
Insulated
Pin Terminals

Filter
1175-761-08814
1175-761-08814
1175-761-08814
0.356" - - PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-821-0310
1175-821-0310
1175-821-0310
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-841-0416
1175-841-0416
1175-841-0416
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES
1175-871-0512
1175-871-0512
1175-871-0512
0.560" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1177-01-08818
1177-01-08818
1177-01-08818
0.345" 0.040 - PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1177-11-0314
1177-11-0314
1177-11-0314
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE Yellow NO
1177-31-04410
1177-31-04410
1177-31-04410
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1177-35-0516
1177-35-0516
1177-35-0516
0.550" 0.040 DOUBLE Turret/Tip PRESS LOCK 7/64 - 9/64 0.136 Brass Electro Solder - - PTFE Blue NO
1177-52-0112
1177-52-0112
1177-52-0112
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Silver - - PTFE Red NO
1177-56-0318
1177-56-0318
1177-56-0318
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Gold - - PTFE Gray NO
1177-60-04414
1177-60-04414
1177-60-04414
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1178R-02-08810
1178R-02-08810
1178R-02-08810
0.445" 0.040 - PRESS LOCK 1/32 - 3/32 0.134 Brass Bright Tin-Lead - - PTFE Black NO
1178R-10-0116
1178R-10-0116
1178R-10-0116
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Silver - - PTFE Blue YES
1178R-14-0412
1178R-14-0412
1178R-14-0412
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Electro-Tin - - PTFE Red NO

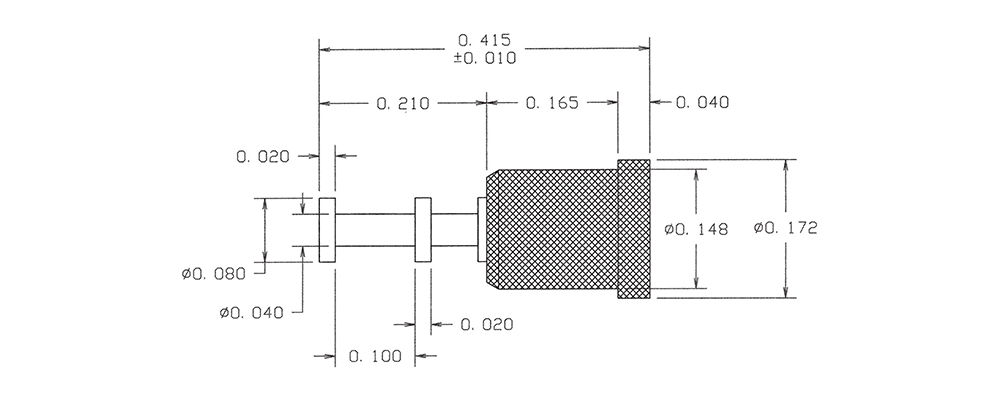

1102R-93-04418
1102R-93-04418
1102R-93-04418
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Gray NO
1125-01-08814
1125-01-08814
1125-01-08814
0.485" - - 2-56 1/8 2-56 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE Yellow NO
1125-06-0310
1125-06-0310
1125-06-0310
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Black YES
1125-10-0416
1125-10-0416
1125-10-0416
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
1125-14-0512
1125-14-0512
1125-14-0512
0.485" - - 4-40 1/8 4-40 THREAD Brass Electro Solder Electro-Tin Brass PTFE Red NO
1125-18-08818
1125-18-08818
1125-18-08818
0.760" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO
