Commercial
Insulated
Pin Terminals

Filter
1100R-08-0415
1100R-08-0415
1100R-08-0415
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro-Tin - - PTFE Green YES
1100R-14-0511
1100R-14-0511
1100R-14-0511
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Brown NO
1100R-27-08817
1100R-27-08817
1100R-27-08817
0.350" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1100R-63-0313
1100R-63-0313
1100R-63-0313
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Gold - - PTFE Orange NO
1101-04-0419
1101-04-0419
1101-04-0419
0.415" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE White YES

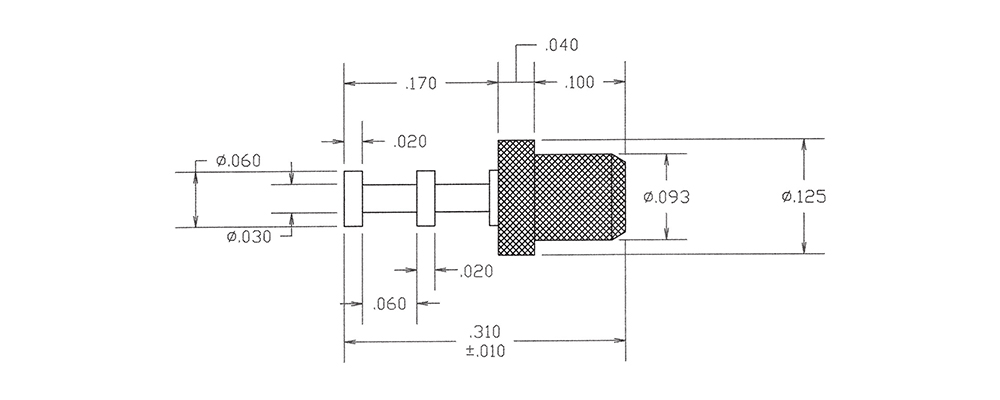

1102-01-0515
1102-01-0515
1102-01-0515
0.310" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO
1102-06-0111
1102-06-0111
1102-06-0111
0.531" - - Press Fit 1/16 0.114 Brass Silver - - PTFE Brown NO
1102-11-0317
1102-11-0317
1102-11-0317
0.296" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1102-15-04413
1102-15-04413
1102-15-04413
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO

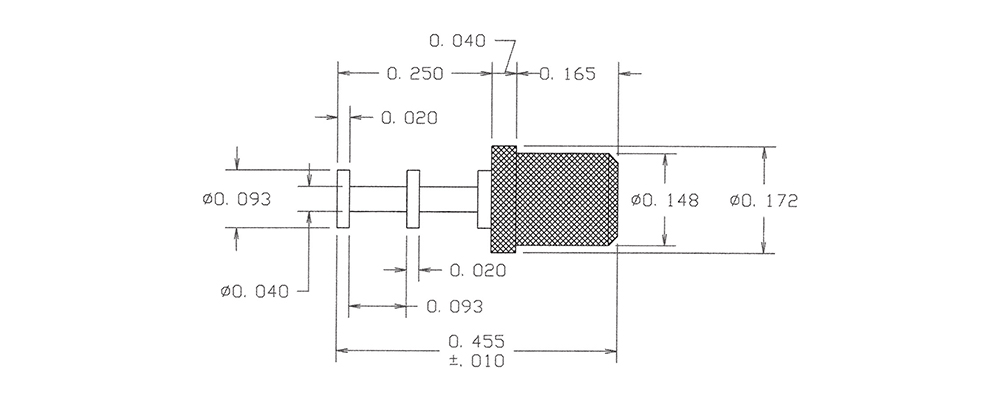

1102-21-0519
1102-21-0519
1102-21-0519
0.455" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE White NO
1102-26-0115
1102-26-0115
1102-26-0115
0.296" - - Press Fit 1/16 0.140 Brass Silver - - PTFE Green YES
1102-30-0411
1102-30-0411
1102-30-0411
0.347" - - Press Fit 1/16 0.140 Brass Electro-Tin - - PTFE Brown NO

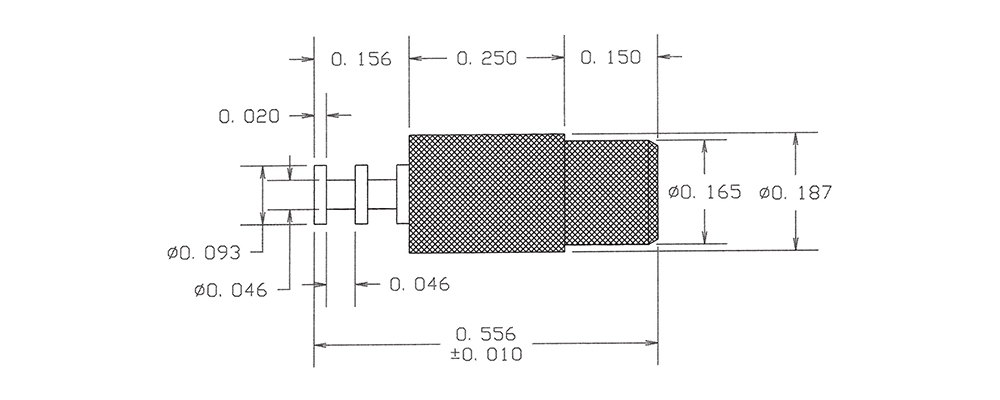

1102-34-04417
1102-34-04417
1102-34-04417
0.556" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Violet YES

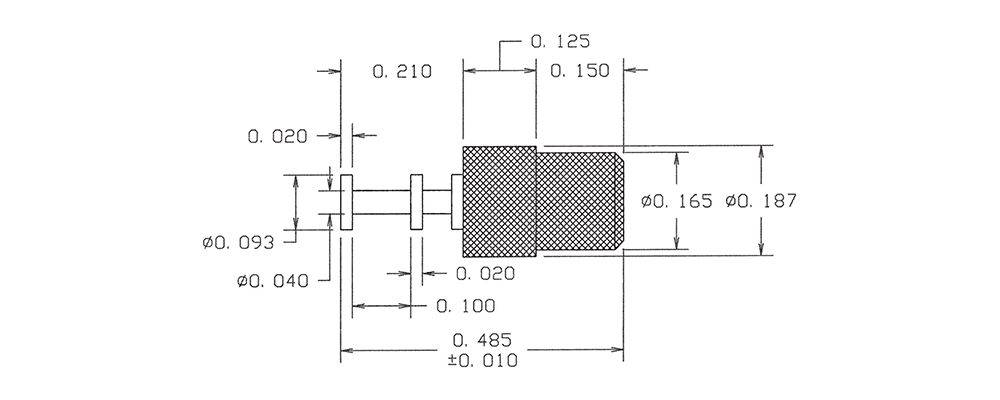

1102-38-08813
1102-38-08813
1102-38-08813
0.485" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Orange NO
1102-48-0119
1102-48-0119
1102-48-0119
0.681" - - Press Fit 5/32 0.152 Brass Silver - - PTFE White YES
1102-52-0415
1102-52-0415
1102-52-0415
0.893" - - Press Fit 5/32 0.152 Brass Electro-Tin - - PTFE Green YES
1102-56-0511
1102-56-0511
1102-56-0511
0.593" - - Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Brown NO
1102-60-08817
1102-60-08817
1102-60-08817
0.485" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1102-66-0313
1102-66-0313
1102-66-0313
0.621" - - Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Orange NO
1102-70-0419
1102-70-0419
1102-70-0419
0.968" - - Press Fit 5/32 0.158 Brass Electro-Tin - - PTFE White YES
