Commercial
Insulated
Pin Terminals

Filter

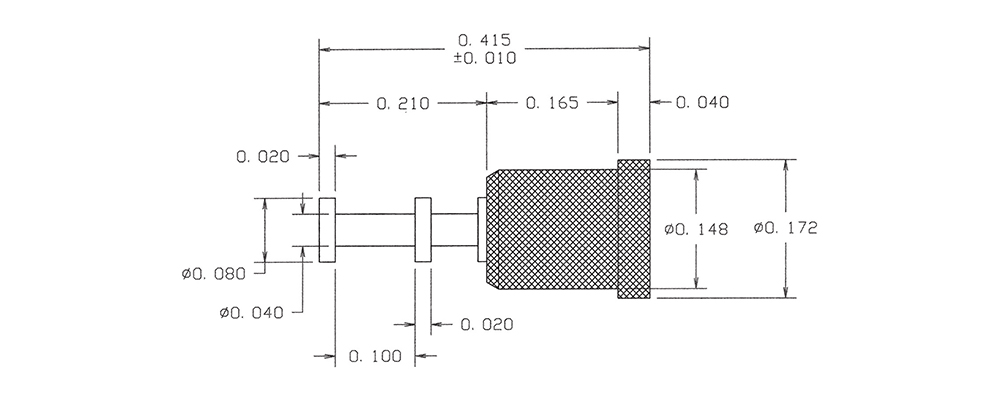

1102R-93-04416
1102R-93-04416
1102R-93-04416
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Blue YES

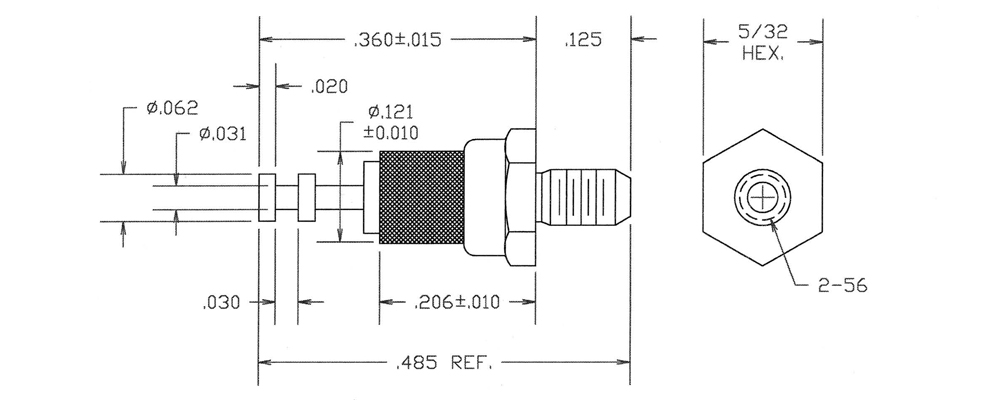

1125-01-08812
1125-01-08812
1125-01-08812
0.485" - - 2-56 1/8 2-56 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE Red NO
1125-06-0118
1125-06-0118
1125-06-0118
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Gray NO
1125-10-0414
1125-10-0414
1125-10-0414
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Yellow NO
1125-14-0510
1125-14-0510
1125-14-0510
0.485" - - 4-40 1/8 4-40 THREAD Brass Electro Solder Electro-Tin Brass PTFE Black NO

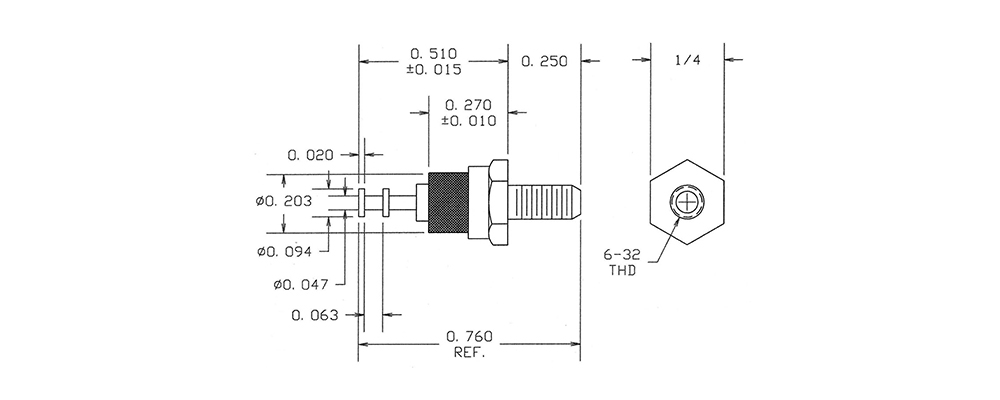

1125-18-08816
1125-18-08816
1125-18-08816
0.760" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Blue NO
1125-23-0312
1125-23-0312
1125-23-0312
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Gold Electro-Tin Brass PTFE Red NO
1125-27-0418
1125-27-0418
1125-27-0418
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-31-0514
1125-31-0514
1125-31-0514
0.630" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder Electro-Tin Brass PTFE Yellow NO
1100-47-0110
1100-47-0110
1100-47-0110
0.350" 0.040 - Press Fit 1/16 0.166 Brass Silver - - PTFE Black YES
1100R-22-0316
1100R-22-0316
1100R-22-0316
0.310" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Blue YES
1100R-33-04412
1100R-33-04412
1100R-33-04412
0.382" 0.045 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Red NO
1100R-52-0518
1100R-52-0518
1100R-52-0518
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro Solder - - PTFE Gray NO
1100R-70-0114
1100R-70-0114
1100R-70-0114
0.750" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO
1102-43-0410
1102-43-0410
1102-43-0410
0.796" - - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Black YES
09-2039-1-0511
09-2039-1-0511
09-2039-1-0511
0.400" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO

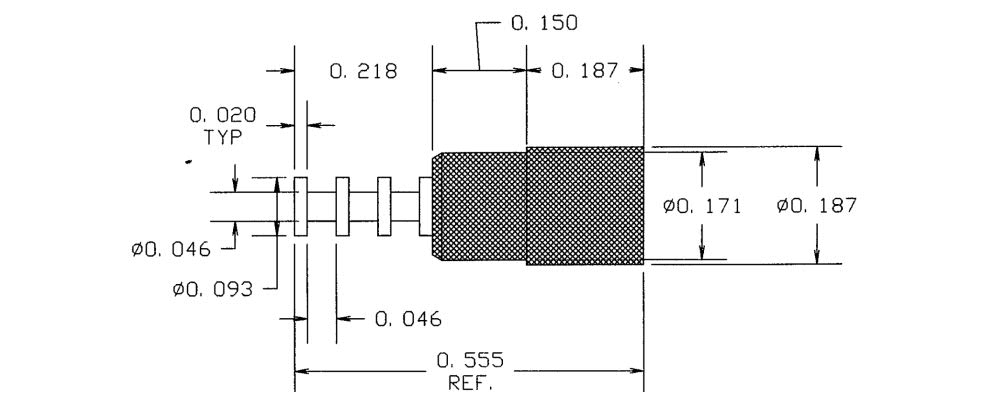

1104R-53-04417
1104R-53-04417
1104R-53-04417
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Violet YES
09-2090-1-08817
09-2090-1-08817
09-2090-1-08817
1.260" 0.040 (+0.001/-0.005) Pin/Pin Press Fit 1/32 0.076 Brass Bright Tin-Lead - - PTFE Violet NO
1111-06-08813
1111-06-08813
1111-06-08813
0.438" 0.040 DOUBLE Turret/Tip Press Fit 3/64 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
09-2101-1-0313
09-2101-1-0313
09-2101-1-0313
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Gold - - PTFE Orange NO
