Commercial
Insulated
Pin Terminals

Filter
1112-06-0117
1112-06-0117
1112-06-0117
0.233" - - Press Fit 1/32 0.113 Brass Silver - - PTFE Violet YES

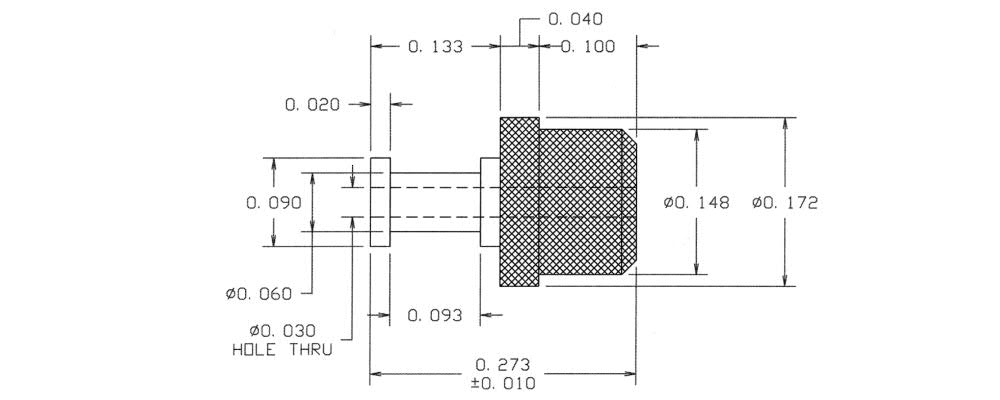

1112-13-0413
1112-13-0413
1112-13-0413
0.273" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO

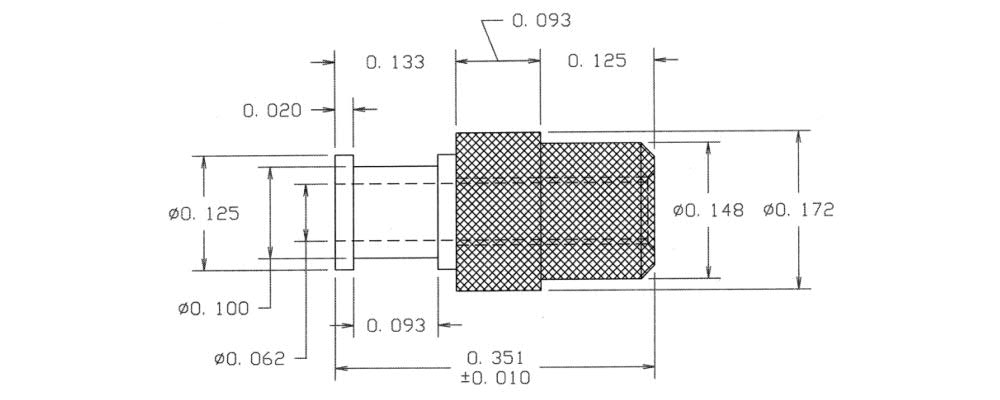

1112-32-04419
1112-32-04419
1112-32-04419
0.351" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE White YES

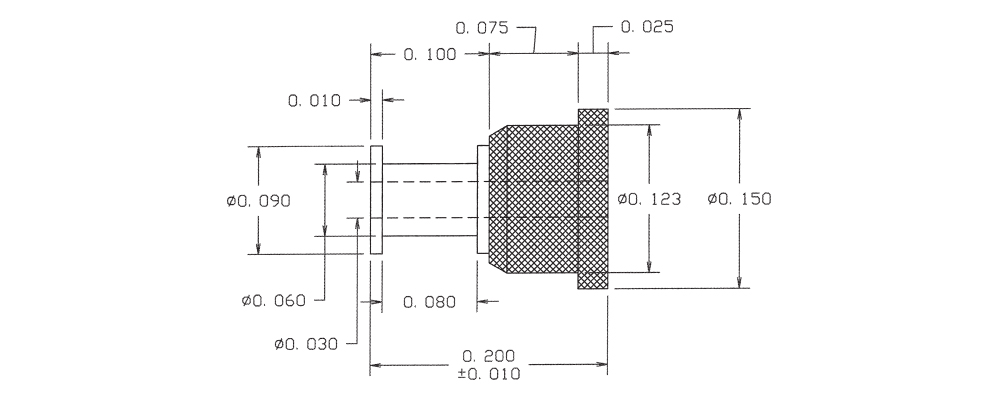

1112R-04-08815
1112R-04-08815
1112R-04-08815
0.200" - - Press Fit 1/32 0.111 Brass Bright Tin-Lead - - PTFE Green NO
1112R-61-0311
1112R-61-0311
1112R-61-0311
0.200" - - Press Fit 1/32 0.086 Brass Gold - - PTFE Brown NO

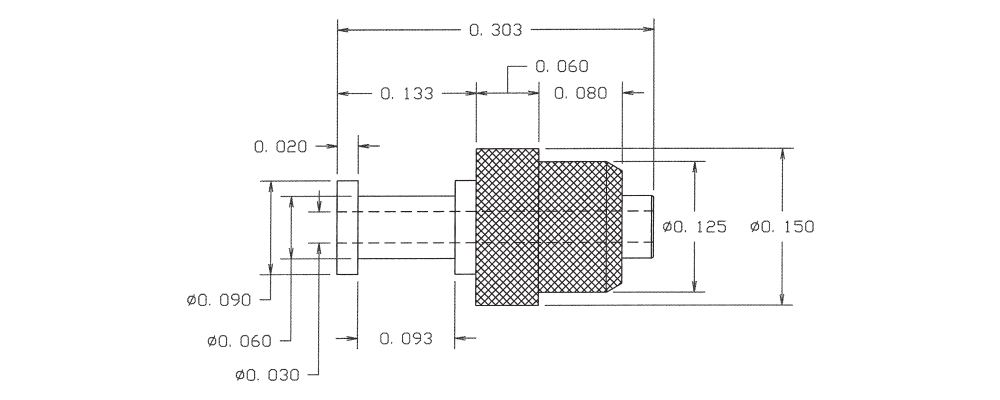

1113-02-0417
1113-02-0417
1113-02-0417
0.303" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Violet YES
1113-51-0513
1113-51-0513
1113-51-0513
0.588" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Orange NO
1113R-08-08819
1113R-08-08819
1113R-08-08819
0.333" - - Press Fit 1/6 0.136 Brass Bright Tin-Lead - - PTFE White NO
1114-07-0315
1114-07-0315
1114-07-0315
0.405" 0.040 - Press Fit 1/32 0.086 Brass Gold - - PTFE Green YES
1114-30-04411
1114-30-04411
1114-30-04411
0.645" 0.080 - Press Fit 9/32 0.205 Brass Bright Tin - - PTFE Brown NO
1114-73-0517
1114-73-0517
1114-73-0517
0.320" - - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Violet NO
1114R-12-0113
1114R-12-0113
1114R-12-0113
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Silver - - PTFE Orange NO
1114R-19-0319
1114R-19-0319
1114R-19-0319
0.310" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1114R-68-04415
1114R-68-04415
1114R-68-04415
0.150" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Green YES
1115-05-08811
1115-05-08811
1115-05-08811
0.417" 0.085 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1115-50-0117
1115-50-0117
1115-50-0117
0.353" - - Press Fit 3/32 0.187 Brass Silver - - PTFE Violet YES
1115-54-0413
1115-54-0413
1115-54-0413
0.500" - Turret/Turret Press Fit 3/32 0.187 Brass Electro-Tin - - PTFE Orange NO
1116-03-04419
1116-03-04419
1116-03-04419
0.540" 0.047 Turret/Tip Press Fit 1/8 0.158 Brass Bright Tin - - PTFE White YES
1117-14-08815
1117-14-08815
1117-14-08815
0.640" 0.032 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Green NO
1117-19-0311
1117-19-0311
1117-19-0311
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Gold Nickel Brass PTFE Brown NO
