Commercial
Insulated
Pin Terminals

Filter
1127-16-0117
1127-16-0117
1127-16-0117
0.813" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-20-0413
1127-20-0413
1127-20-0413
0.907" - - Swage Mount 1/16 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES

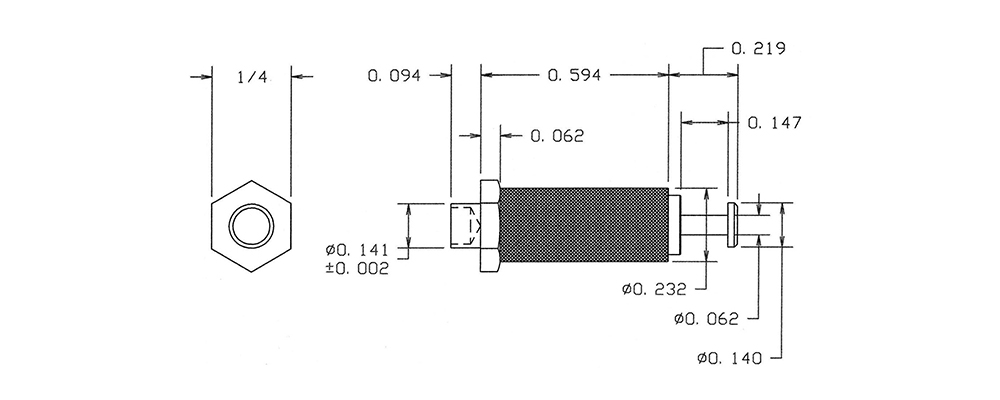

1127-24-04419
1127-24-04419
1127-24-04419
0.907" - - Swage Mount 1/16 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES

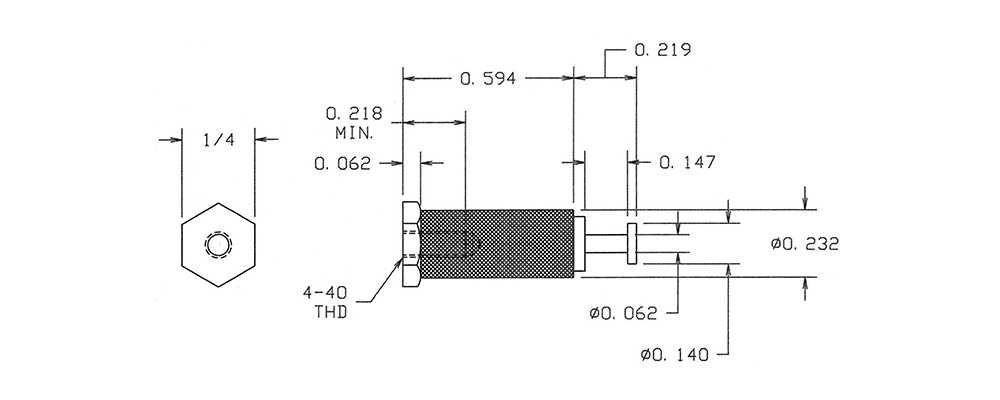

1127-29-08815
1127-29-08815
1127-29-08815
1.031" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO

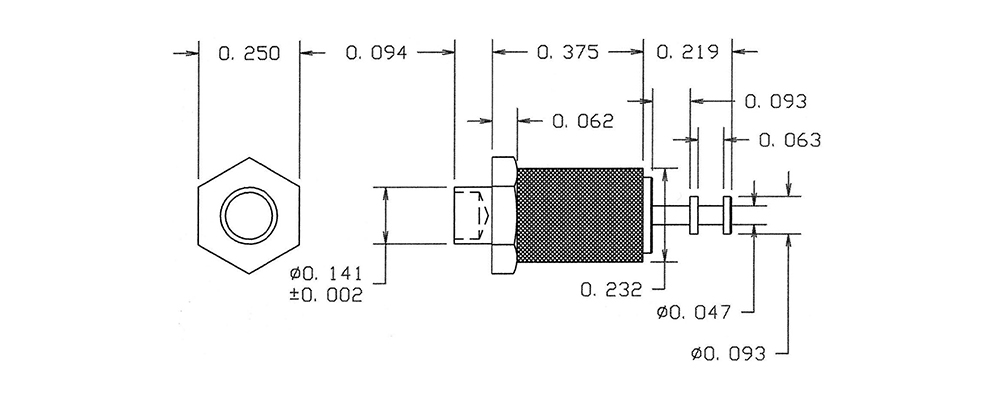

1127-34-0311
1127-34-0311
1127-34-0311
0.688" - - Swage Mount 1/16 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES

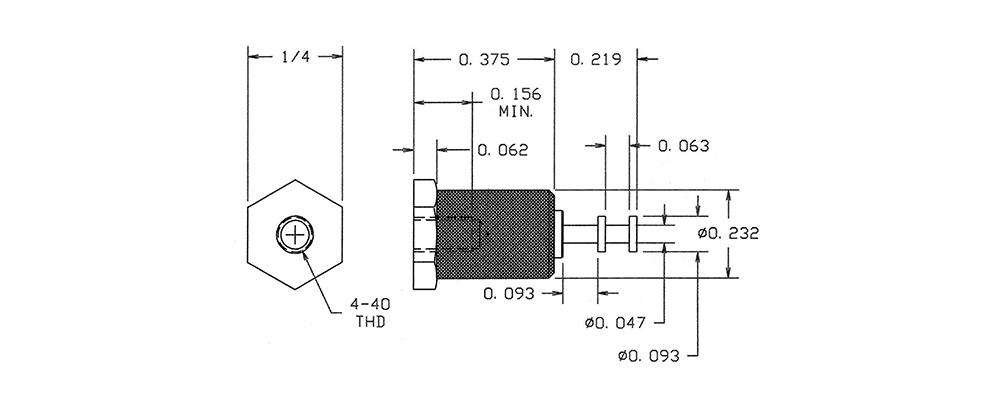

1127-38-0417
1127-38-0417
1127-38-0417
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-42-0513
1127-42-0513
1127-42-0513
0.938" - - 6-32 Nut 3/32 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO
1127-46-08819
1127-46-08819
1127-46-08819
0.813" - - Swage Mount 1/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO
1127-51-0315
1127-51-0315
1127-51-0315
0.844" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES
1127-56-04411
1127-56-04411
1127-56-04411
0.516" - - 2-56 Nut 1/32 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-60-0517
1127-60-0517
1127-60-0517
0.642" - - 2-56 Nut 1/16 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO
1127-65-0113
1127-65-0113
1127-65-0113
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES
1127-69-0319
1127-69-0319
1127-69-0319
0.750" - - 2-56 Nut 3/32 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE White YES
1127-73-04415
1127-73-04415
1127-73-04415
1.000" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-77-08811
1127-77-08811
1127-77-08811
0.781" - - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO
1127-82-0117
1127-82-0117
1127-82-0117
0.859" - - Swage Mount 3/16 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-86-0413
1127-86-0413
1127-86-0413
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-90-04419
1127-90-04419
1127-90-04419
0.643" - - Swage Mount 1/16 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-94-08815
1127-94-08815
1127-94-08815
0.673" 0.060 - Swage Mount 1/16 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
1130-01-0311
1130-01-0311
1130-01-0311
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Brown NO
