Commercial
Insulated
Pin Terminals

Filter
1114-27-0119
1114-27-0119
1114-27-0119
0.367" 0.085 - Press Fit 1/16 0.158 Brass Silver - - PTFE White YES
1100-13-0419
1100-13-0419
1100-13-0419
0.265" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
1121-08-0415
1121-08-0415
1121-08-0415
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Green YES
1100-17-0515
1100-17-0515
1100-17-0515
0.305" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO

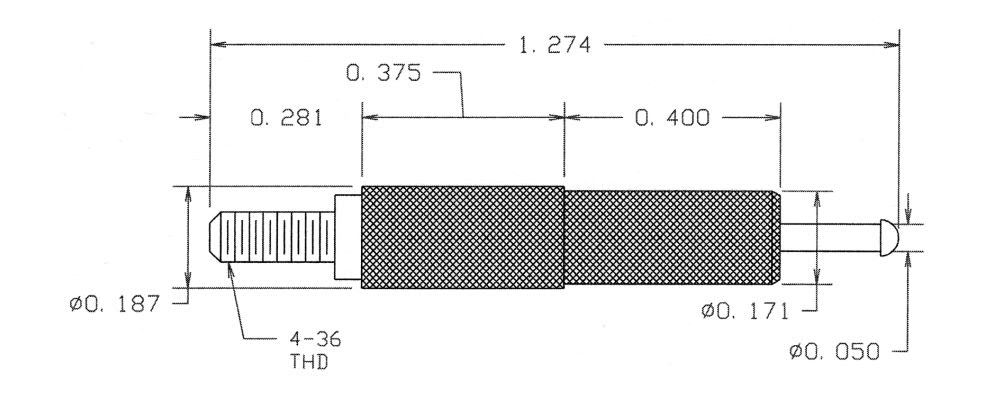

1124-03-0511
1124-03-0511
1124-03-0511
1.274" 0.050 THREAD/TIP Press Fit Up to 3/8 0.158 Brass Electro Solder - - PTFE Brown NO
1100-22-0111
1100-22-0111
1100-22-0111
0.310" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Brown NO
1125-36-08817
1125-36-08817
1125-36-08817
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO
1100-32-0317
1100-32-0317
1100-32-0317
0.370" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES

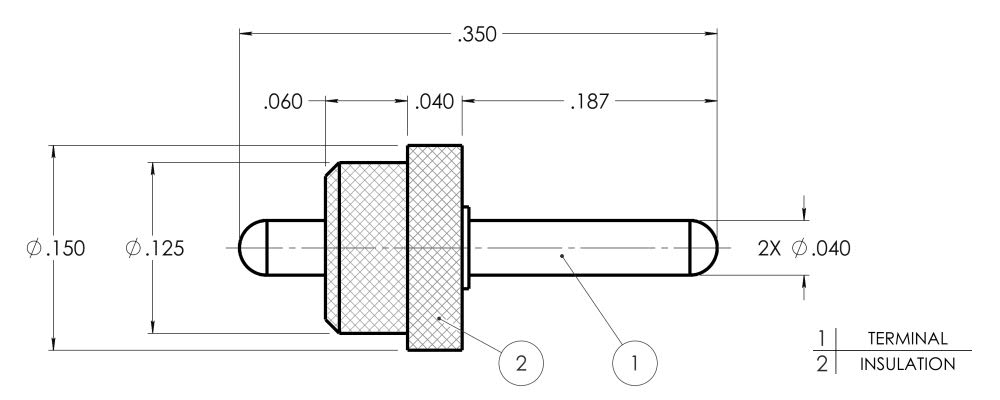

1110-54-0313
1110-54-0313
1110-54-0313
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Orange NO
1100-42-04413
1100-42-04413
1100-42-04413
0.750" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1100-46-0519
1100-46-0519
1100-46-0519
0.350" 0.040 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE White NO
1100-73-0115
1100-73-0115
1100-73-0115
0.580" 0.063 - Press Fit 1/16 0.158 Brass Silver - - PTFE Green YES
1100R-08-0411
1100R-08-0411
1100R-08-0411
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro-Tin - - PTFE Brown NO
1100R-14-04417
1100R-14-04417
1100R-14-04417
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1100R-27-08813
1100R-27-08813
1100R-27-08813
0.350" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1100R-63-0119
1100R-63-0119
1100R-63-0119
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Silver - - PTFE White YES
1101-04-0415
1101-04-0415
1101-04-0415
0.415" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES
1102-01-0511
1102-01-0511
1102-01-0511
0.310" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Brown NO
1102-05-08817
1102-05-08817
1102-05-08817
0.359" - - Press Fit 1/16 0.091 Brass Bright Tin-Lead - - PTFE Violet NO
1102-11-0313
1102-11-0313
1102-11-0313
0.296" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO
