Commercial
Insulated
Pin Terminals

Filter

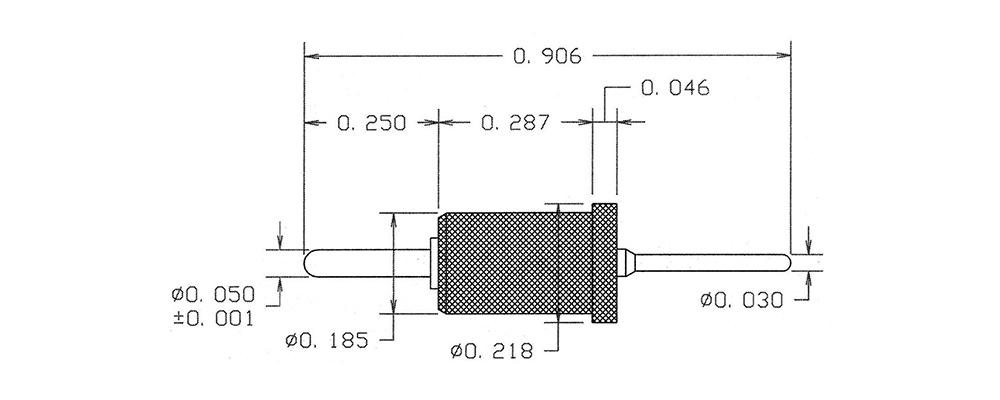

1130R-04-0510
1130R-04-0510
1130R-04-0510
0.906" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Black NO

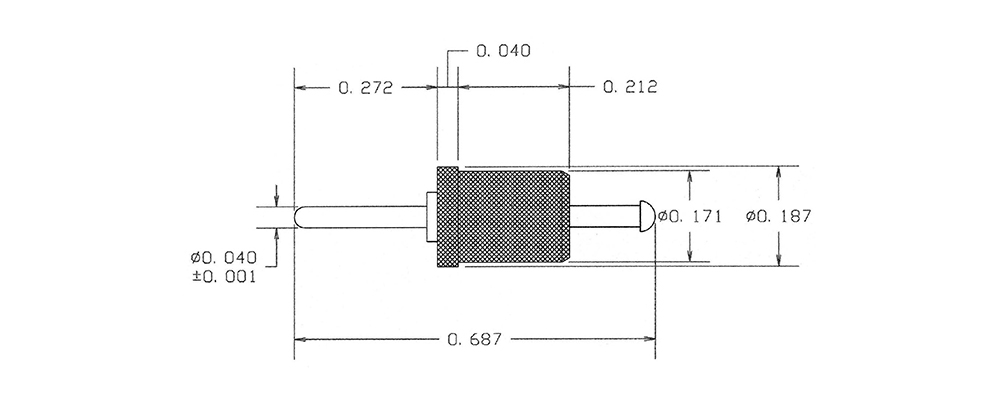

1131-01-08816
1131-01-08816
1131-01-08816
0.687" 0.040 Pin/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1131-06-0312
1131-06-0312
1131-06-0312
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Gold - - PTFE Red NO
1131R-50-0418
1131R-50-0418
1131R-50-0418
0.562" 0.050 Pin/Tip Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Gray NO
1133-01-0514
1133-01-0514
1133-01-0514
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1133R-05-0110
1133R-05-0110
1133R-05-0110
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Silver - - PTFE Black YES
1135-04-0316
1135-04-0316
1135-04-0316
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Gold - - PTFE Blue YES

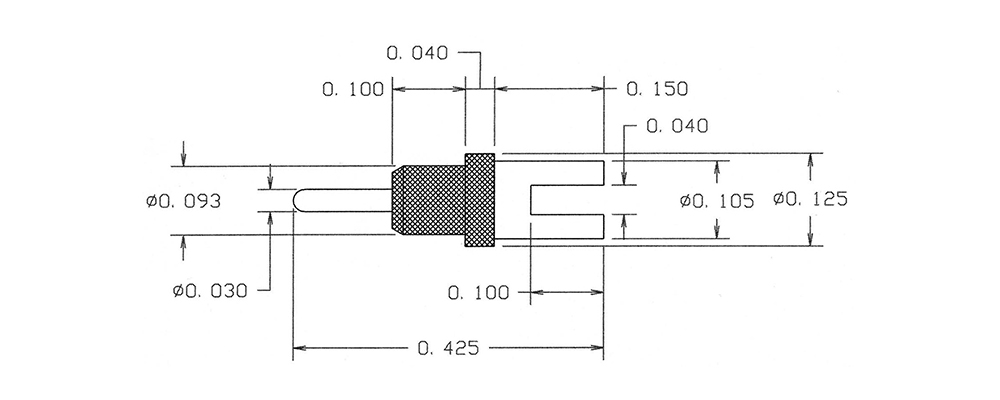

1135-08-04412
1135-08-04412
1135-08-04412
0.425" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Red NO
1137-01-0518
1137-01-0518
1137-01-0518
0.510" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Gray NO
1139-03-0114
1139-03-0114
1139-03-0114
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Silver - - PTFE Yellow NO

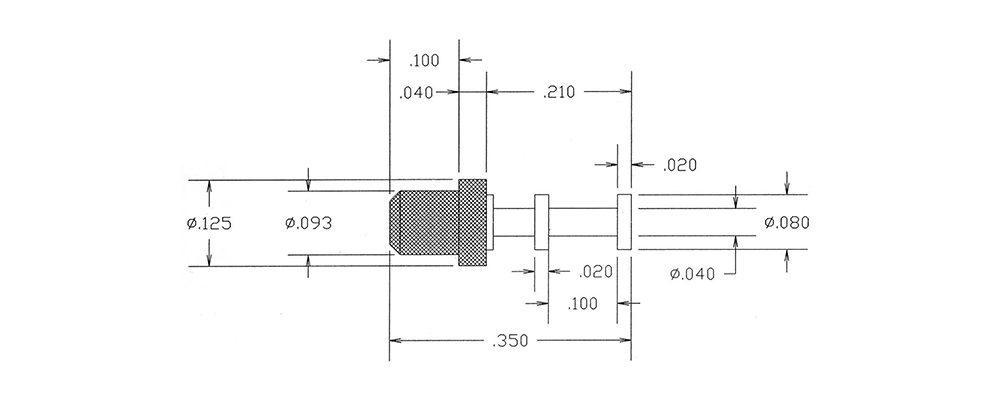

1151-02-0410
1151-02-0410
1151-02-0410
0.350" - - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Black YES

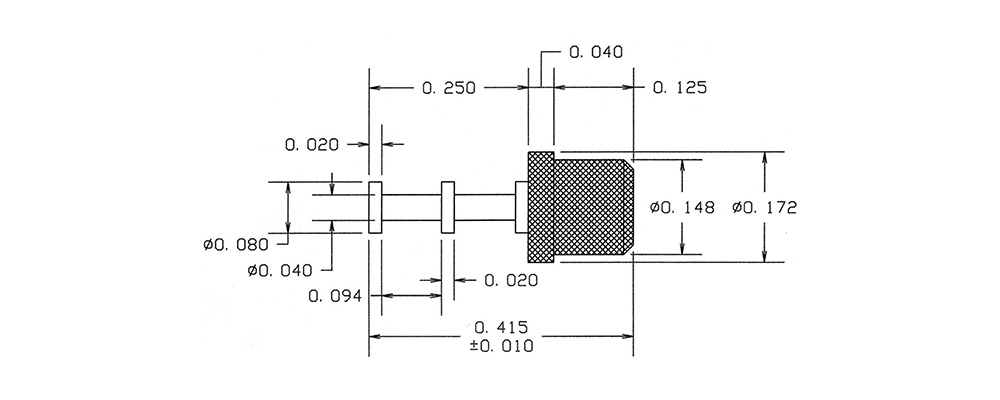

1151-10-04416
1151-10-04416
1151-10-04416
0.415" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Blue YES

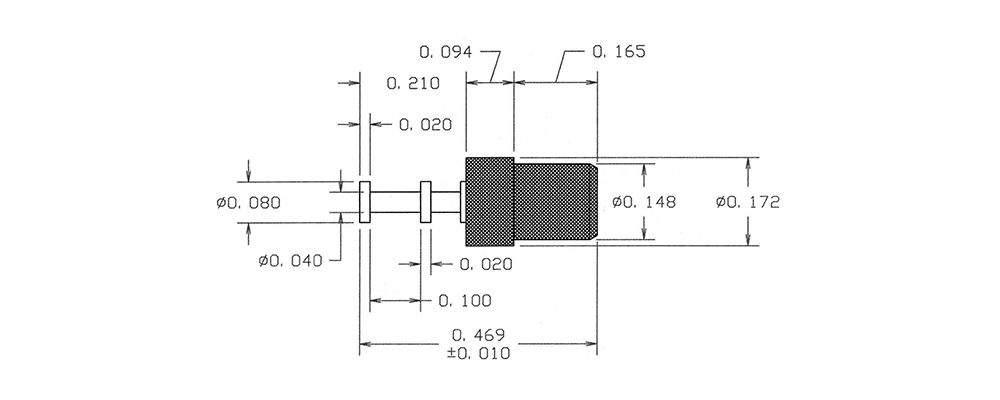

1151-16-08812
1151-16-08812
1151-16-08812
0.469" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1151-38-0118
1151-38-0118
1151-38-0118
0.390" - - Press Fit 1/16 0.158 Brass Silver - - PTFE Gray NO

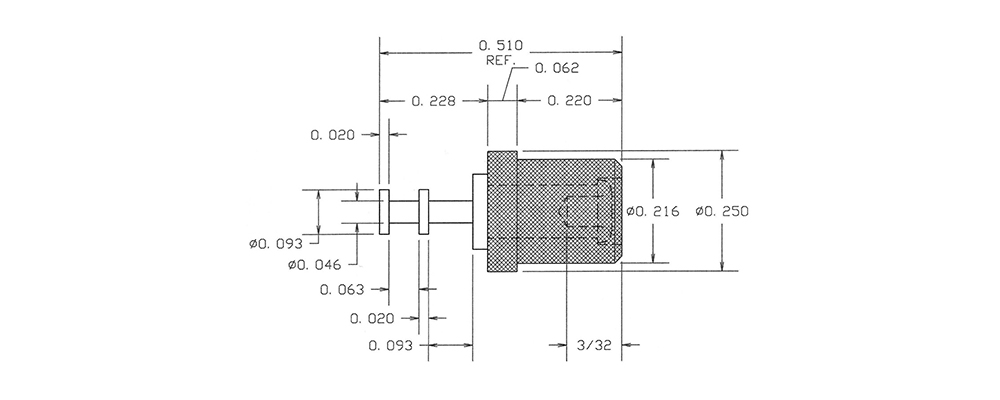

1151-44-0414
1151-44-0414
1151-44-0414
0.510" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Yellow NO
1151R-08-0510
1151R-08-0510
1151R-08-0510
0.500" - - Press Fit 7/32 0.136 Brass Electro Solder - - PTFE Black NO
1151R-12-08816
1151R-12-08816
1151R-12-08816
0.540" - - Press Fit 7/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1152-29-0312
1152-29-0312
1152-29-0312
0.460" 0.040 - Press Fit 1/16 0.204 Brass Gold - - PTFE Red NO
1152R-03-0418
1152R-03-0418
1152R-03-0418
0.415" 0.040 - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Gray NO
1153-02-0514
1153-02-0514
1153-02-0514
0.515" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Electro Solder - - PTFE Yellow NO
