Commercial
Insulated
Pin Terminals

Filter
1112-20-0319
1112-20-0319
1112-20-0319
0.333" - - Press Fit 1/8 0.250 Brass Gold - - PTFE White YES
09-2119-1-04419
09-2119-1-04419
09-2119-1-04419
1.200" 0.045 Pin/Pin Press Fit 5/32 0.158 Brass Bright Tin - - PTFE White YES

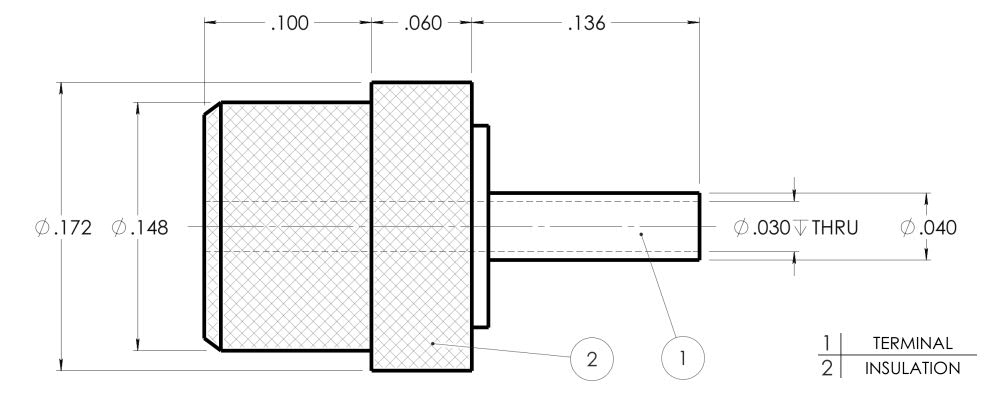

1114-16-04415
1114-16-04415
1114-16-04415
0.296" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1100-03-08815
1100-03-08815
1100-03-08815
0.245" 0.040 - Press Fit 3/64 0.086 Brass Bright Tin-Lead - - PTFE Green NO
1114-22-08811
1114-22-08811
1114-22-08811
0.332" 0.085 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1100-08-0311
1100-08-0311
1100-08-0311
0.250" 0.040 - Press Fit 3/64 0.091 Brass Gold - - PTFE Brown NO
1114-27-0117
1114-27-0117
1114-27-0117
0.367" 0.085 - Press Fit 1/16 0.158 Brass Silver - - PTFE Violet YES
1100-13-0417
1100-13-0417
1100-13-0417
0.265" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES

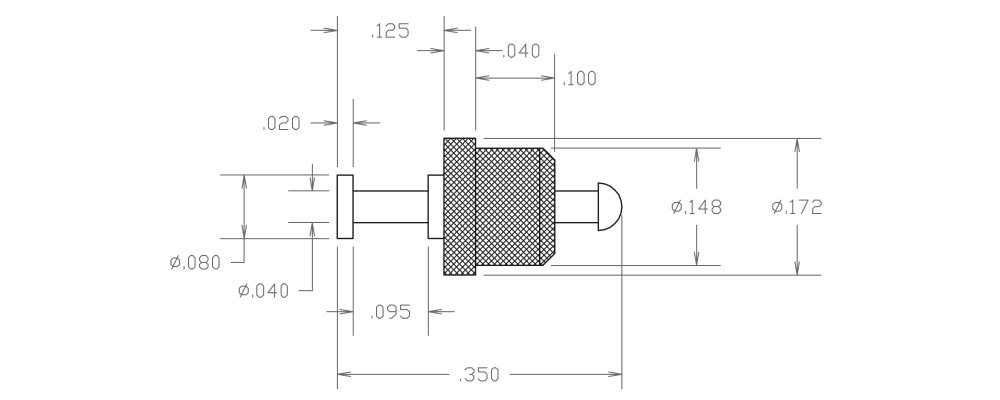

1121-08-0413
1121-08-0413
1121-08-0413
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Orange NO
1100-17-0513
1100-17-0513
1100-17-0513
0.305" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO

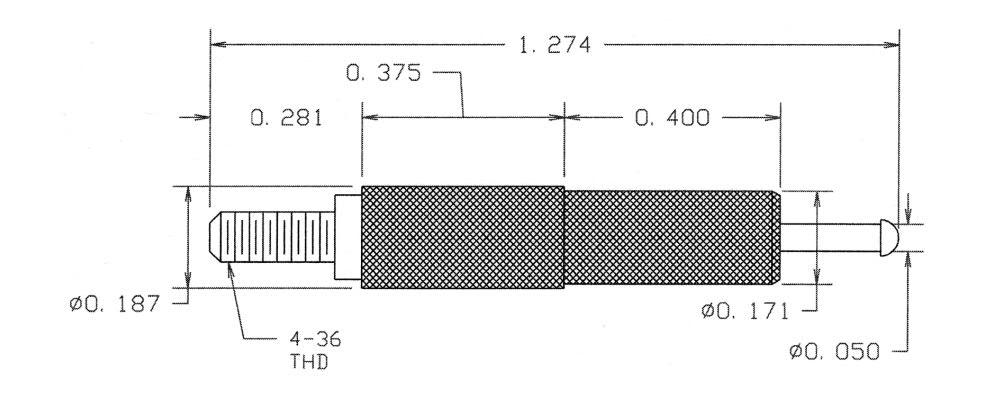

1124-03-04419
1124-03-04419
1124-03-04419
1.274" 0.050 THREAD/TIP Press Fit Up to 3/8 0.158 Brass Bright Tin - - PTFE White YES
1100-21-08819
1100-21-08819
1100-21-08819
0.360" 0.046 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1125-36-08815
1125-36-08815
1125-36-08815
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Green NO
1100-32-0315
1100-32-0315
1100-32-0315
0.370" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1110-54-0311
1110-54-0311
1110-54-0311
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Brown NO
1100-42-04411
1100-42-04411
1100-42-04411
0.750" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1100-46-0517
1100-46-0517
1100-46-0517
0.350" 0.040 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Violet NO
1100-73-0113
1100-73-0113
1100-73-0113
0.580" 0.063 - Press Fit 1/16 0.158 Brass Silver - - PTFE Orange NO
1100R-08-0319
1100R-08-0319
1100R-08-0319
0.250" 0.040 - Press Fit 1/16 0.091 Brass Gold - - PTFE White YES
1100R-14-04415
1100R-14-04415
1100R-14-04415
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Green YES
