Commercial
Insulated
Pin Terminals

Filter
1175-711-0512
1175-711-0512
1175-711-0512
0.548" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1175-721-08818
1175-721-08818
1175-721-08818
0.662" - Double Turret/Double Turret PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-733-0314
1175-733-0314
1175-733-0314
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1175-743-04410
1175-743-04410
1175-743-04410
0.606" - TURRET/SLOTTED PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES
1175-761-0516
1175-761-0516
1175-761-0516
0.356" - - PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO
1175-821-0112
1175-821-0112
1175-821-0112
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-841-0318
1175-841-0318
1175-841-0318
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1175-871-04414
1175-871-04414
1175-871-04414
0.560" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO
1177-01-08810
1177-01-08810
1177-01-08810
0.345" 0.040 - PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin-Lead - - PTFE Black NO
1177-11-0116
1177-11-0116
1177-11-0116
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Blue YES
1177-31-0412
1177-31-0412
1177-31-0412
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1177-35-04418
1177-35-04418
1177-35-04418
0.550" 0.040 DOUBLE Turret/Tip PRESS LOCK 7/64 - 9/64 0.136 Brass Bright Tin - - PTFE Gray NO
1177-51-08814
1177-51-08814
1177-51-08814
0.461" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

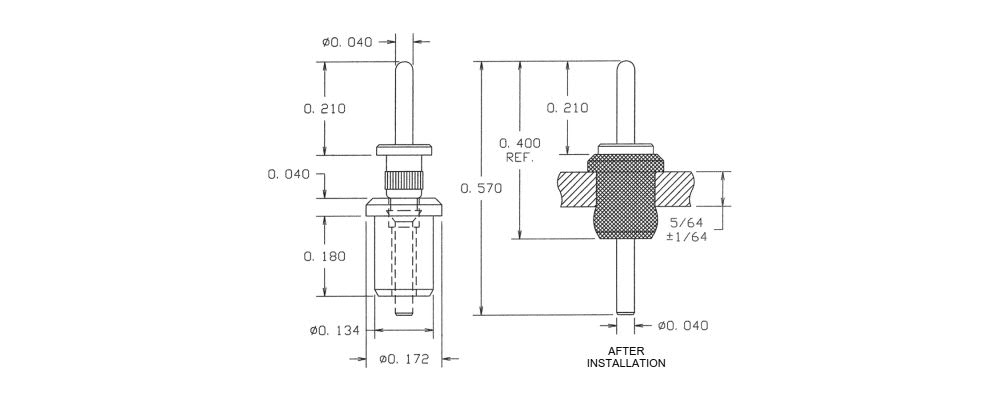

1177-56-0310
1177-56-0310
1177-56-0310
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Gold - - PTFE Black YES

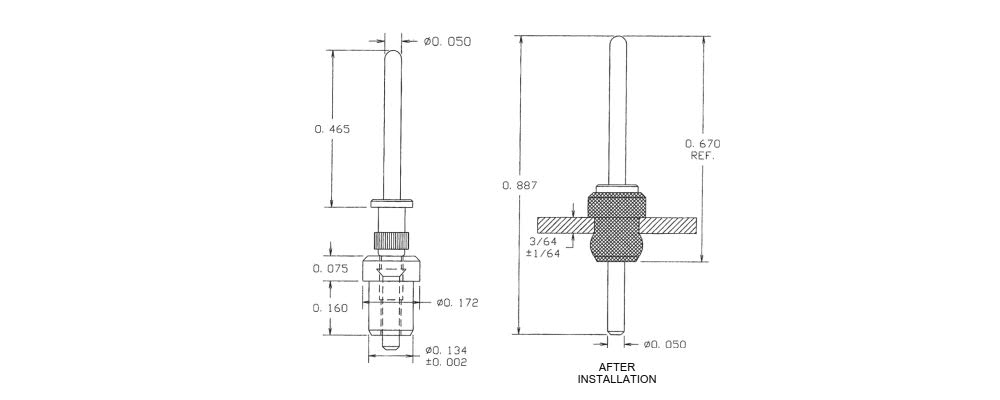

1177-60-0416
1177-60-0416
1177-60-0416
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES

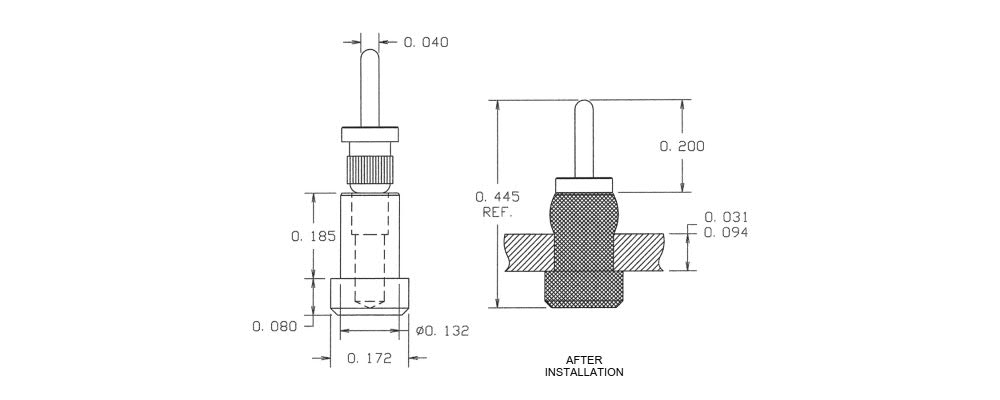

1178R-02-0512
1178R-02-0512
1178R-02-0512
0.445" 0.040 - PRESS LOCK 1/32 - 3/32 0.134 Brass Electro Solder - - PTFE Red NO
1178R-09-08818
1178R-09-08818
1178R-09-08818
0.445" 0.035 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1178R-14-0314
1178R-14-0314
1178R-14-0314
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Gold - - PTFE Yellow NO

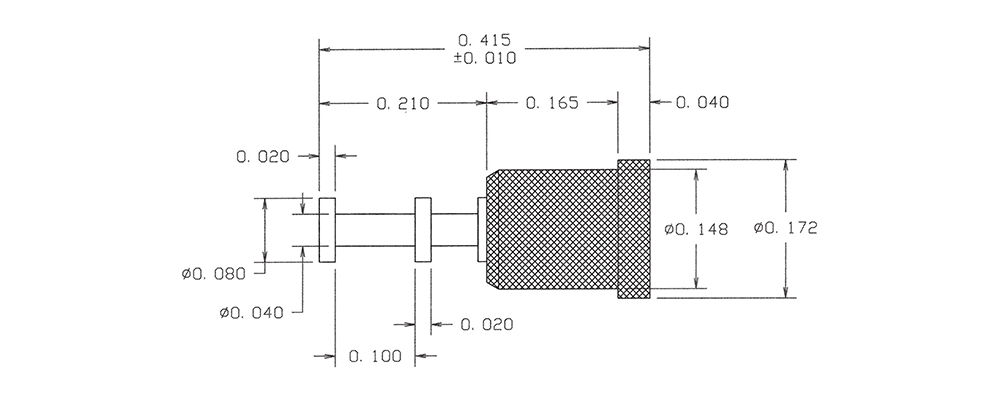

1102R-93-04410
1102R-93-04410
1102R-93-04410
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Black YES
1125-01-0516
1125-01-0516
1125-01-0516
0.485" - - 2-56 1/8 2-56 THREAD Brass Electro Solder Electro-Tin Brass PTFE Blue NO
