Commercial
Insulated
Pin Terminals

Filter
1135-09-0416
1135-09-0416
1135-09-0416
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Blue YES
1137-02-0512
1137-02-0512
1137-02-0512
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Red NO
1139-03-08818
1139-03-08818
1139-03-08818
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Gray NO
1151-05-0314
1151-05-0314
1151-05-0314
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
1151-11-04410
1151-11-04410
1151-11-04410
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Black YES

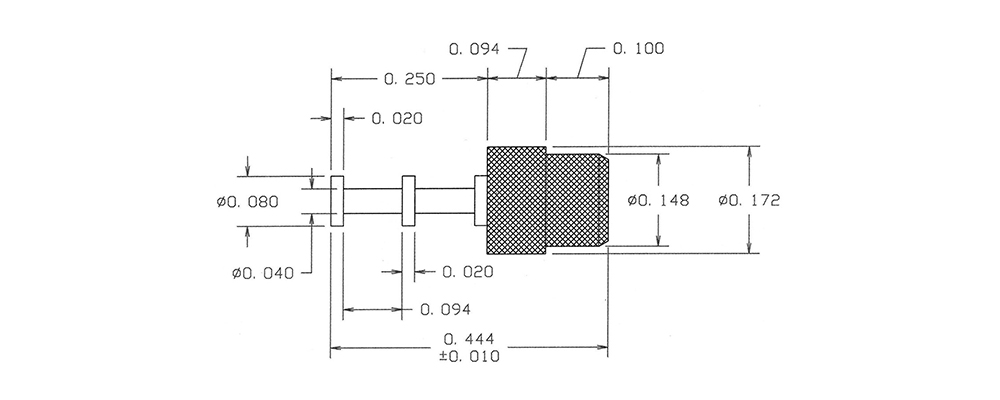

1151-19-0516
1151-19-0516
1151-19-0516
0.444" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO
1151-39-0112
1151-39-0112
1151-39-0112
0.525" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Red NO

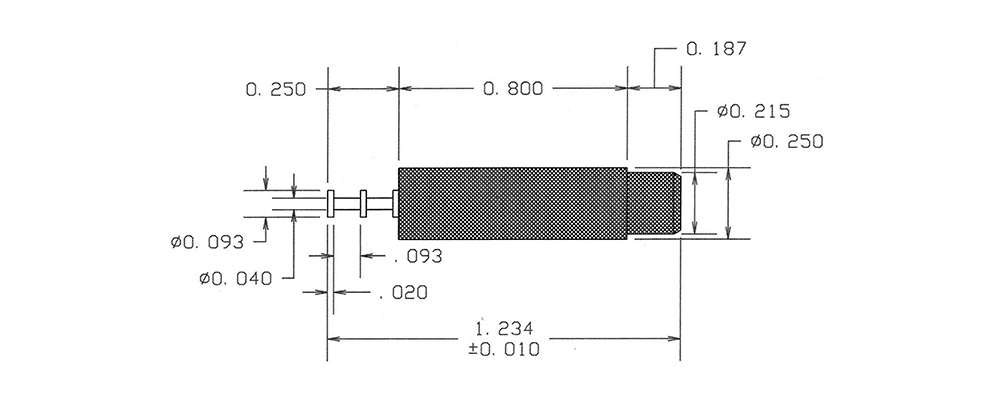

1151-51-0318
1151-51-0318
1151-51-0318
1.234" - - Press Fit 5/32 0.203 Brass Gold - - PTFE Gray NO
1151R-09-04414
1151R-09-04414
1151R-09-04414
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO

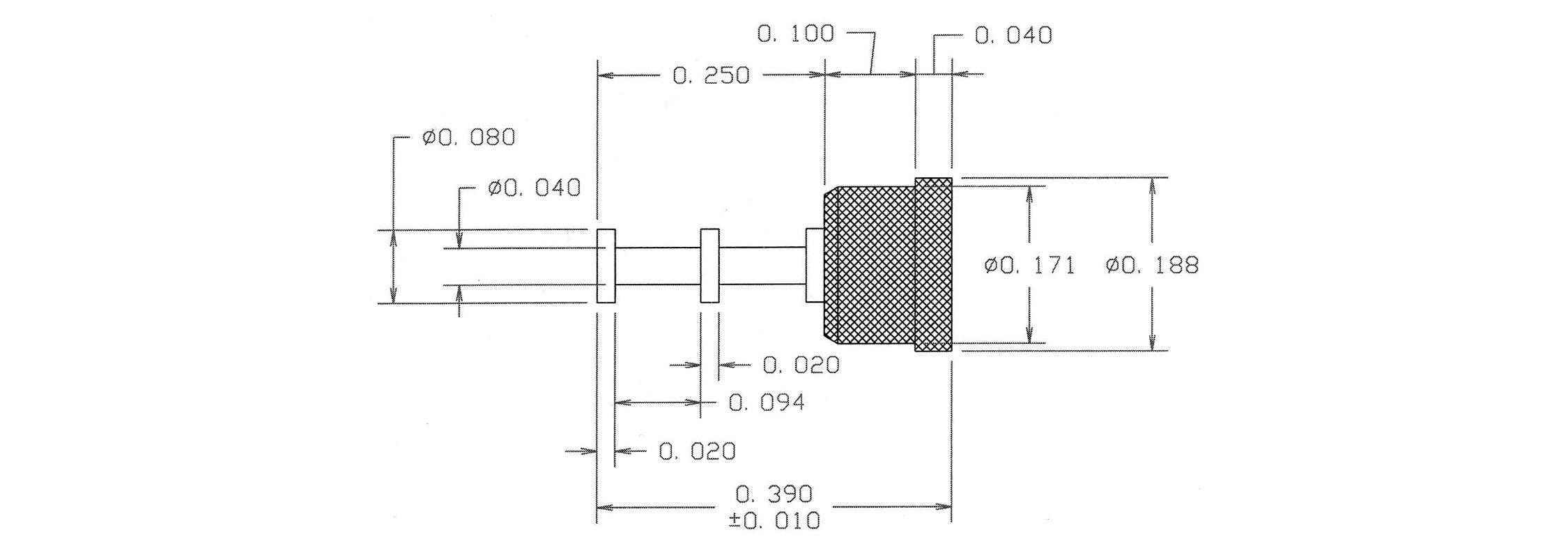

1151R-38-08810
1151R-38-08810
1151R-38-08810
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1152-31-0116
1152-31-0116
1152-31-0116
0.750" 0.040 - Press Fit 1/16 0.203 Brass Silver - - PTFE Blue YES
1152R-17-0412
1152R-17-0412
1152R-17-0412
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Red NO
1153-06-04418
1153-06-04418
1153-06-04418
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1153-31-08814
1153-31-08814
1153-31-08814
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Yellow NO
1154-10-0310
1154-10-0310
1154-10-0310
0.753" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Black YES
1154-44-0416
1154-44-0416
1154-44-0416
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Blue YES
1155-01-0512
1155-01-0512
1155-01-0512
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro Solder - - PTFE Red NO
1155-07-08818
1155-07-08818
1155-07-08818
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1156-02-0314
1156-02-0314
1156-02-0314
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Gold - - PTFE Yellow NO
1156-07-04410
1156-07-04410
1156-07-04410
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Black YES
