Commercial
Insulated
Pin Terminals

Filter
1132-01-0315
1132-01-0315
1132-01-0315
0.645" 0.090 - Solder 7/32 0.0935 Brass Gold - - PTFE Green YES

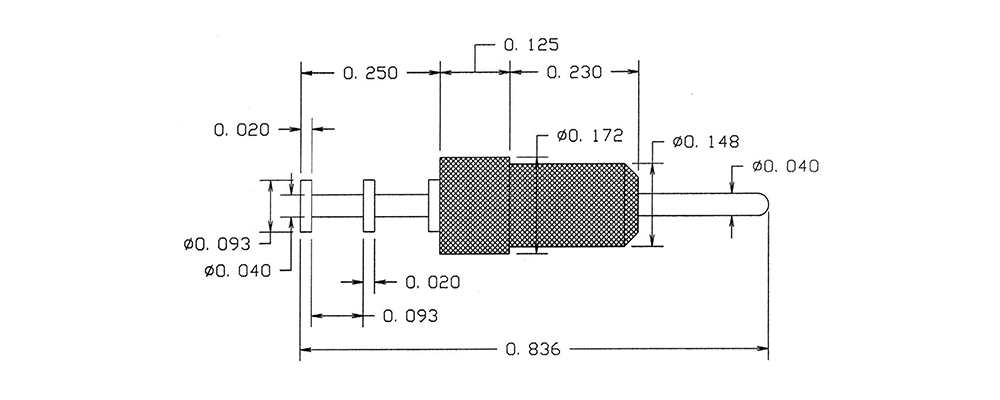

1133-02-04411
1133-02-04411
1133-02-04411
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Brown NO
1133R-05-0517
1133R-05-0517
1133R-05-0517
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Violet NO
1135-05-0113
1135-05-0113
1135-05-0113
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Orange NO
1135-09-0319
1135-09-0319
1135-09-0319
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Gold - - PTFE White YES

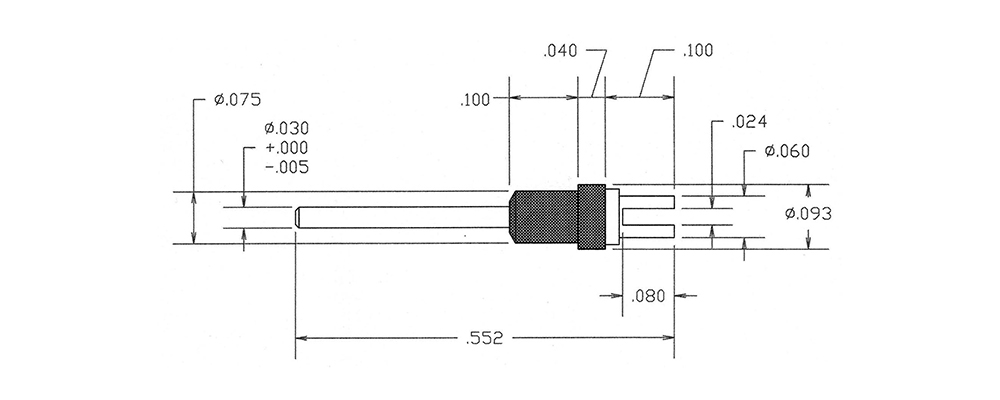

1137-02-04415
1137-02-04415
1137-02-04415
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Green YES

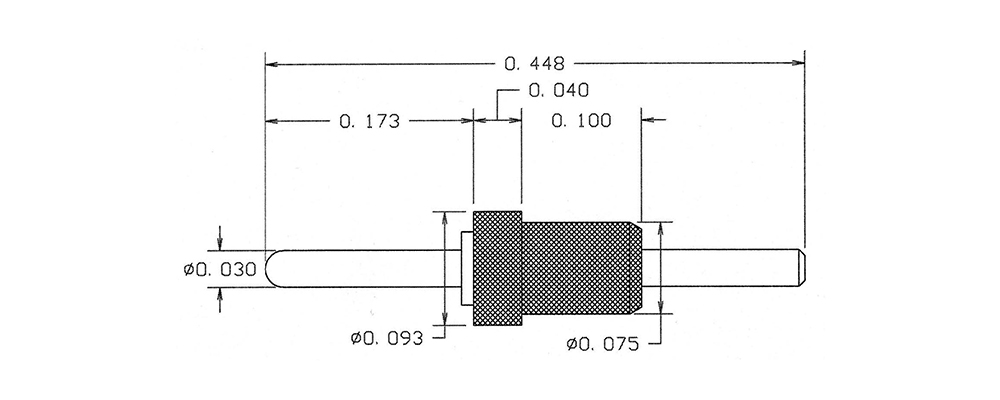

1139-03-08811
1139-03-08811
1139-03-08811
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Brown NO

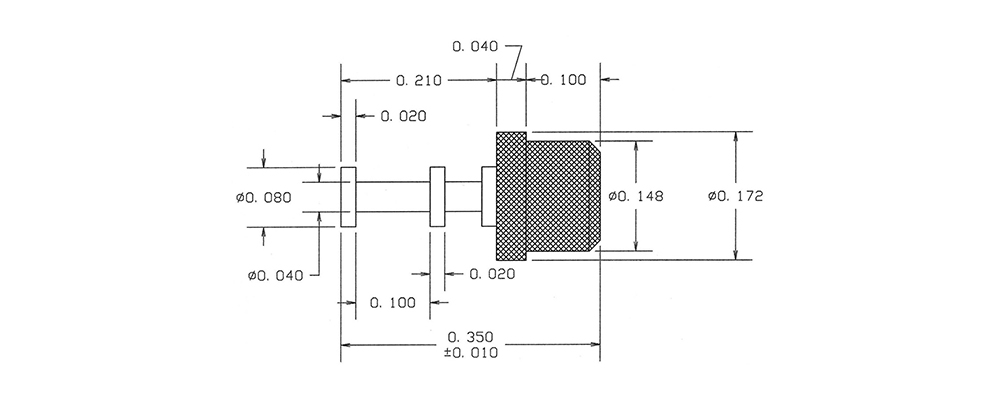

1151-05-0117
1151-05-0117
1151-05-0117
0.350" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1151-11-0413
1151-11-0413
1151-11-0413
0.455" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Orange NO
1151-19-04419
1151-19-04419
1151-19-04419
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES

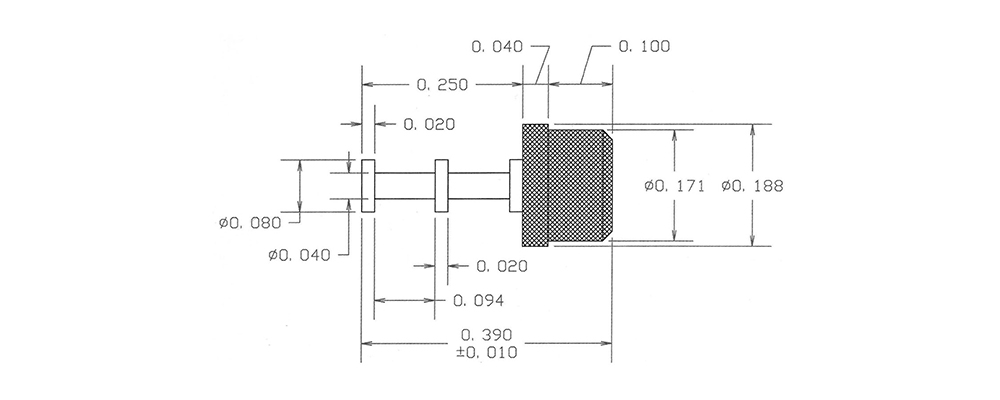

1151-38-08815
1151-38-08815
1151-38-08815
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1151-51-0311
1151-51-0311
1151-51-0311
1.234" - - Press Fit 5/32 0.203 Brass Gold - - PTFE Brown NO
1151R-09-0417
1151R-09-0417
1151R-09-0417
0.390" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1151R-38-0513
1151R-38-0513
1151R-38-0513
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Orange NO

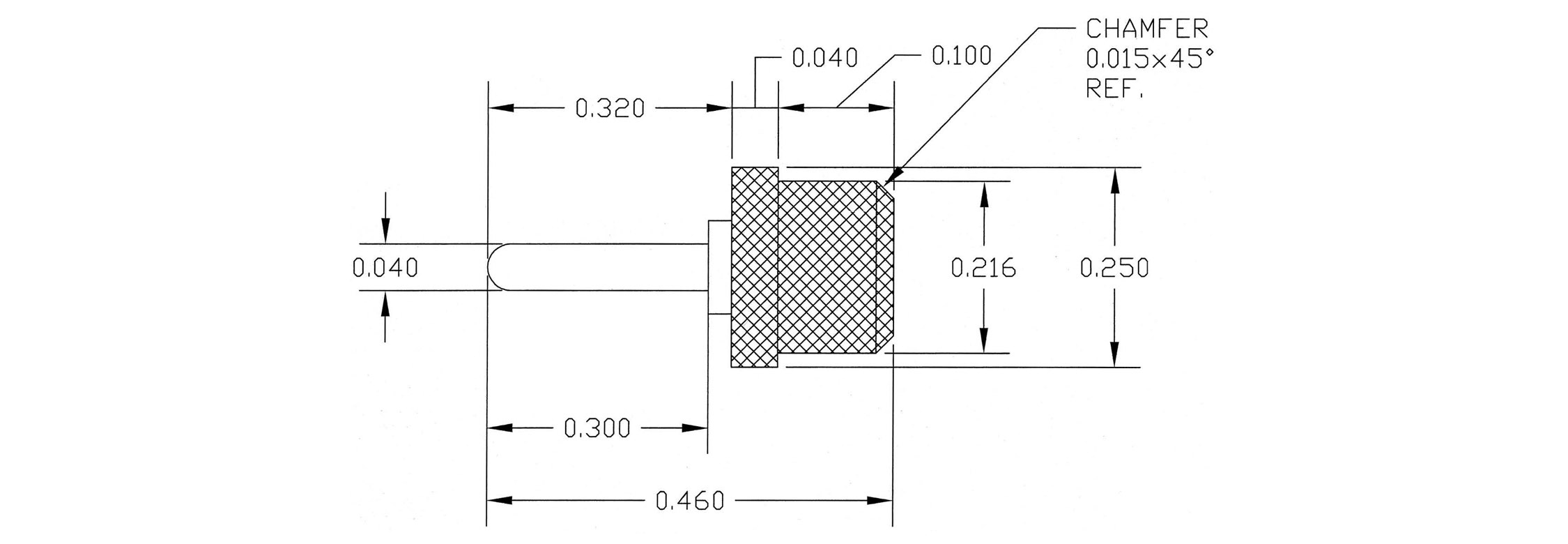

1152-29-08819
1152-29-08819
1152-29-08819
0.460" 0.040 - Press Fit 1/16 0.204 Brass Bright Tin-Lead - - PTFE White NO
1152R-17-0315
1152R-17-0315
1152R-17-0315
0.615" 0.040 - Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES

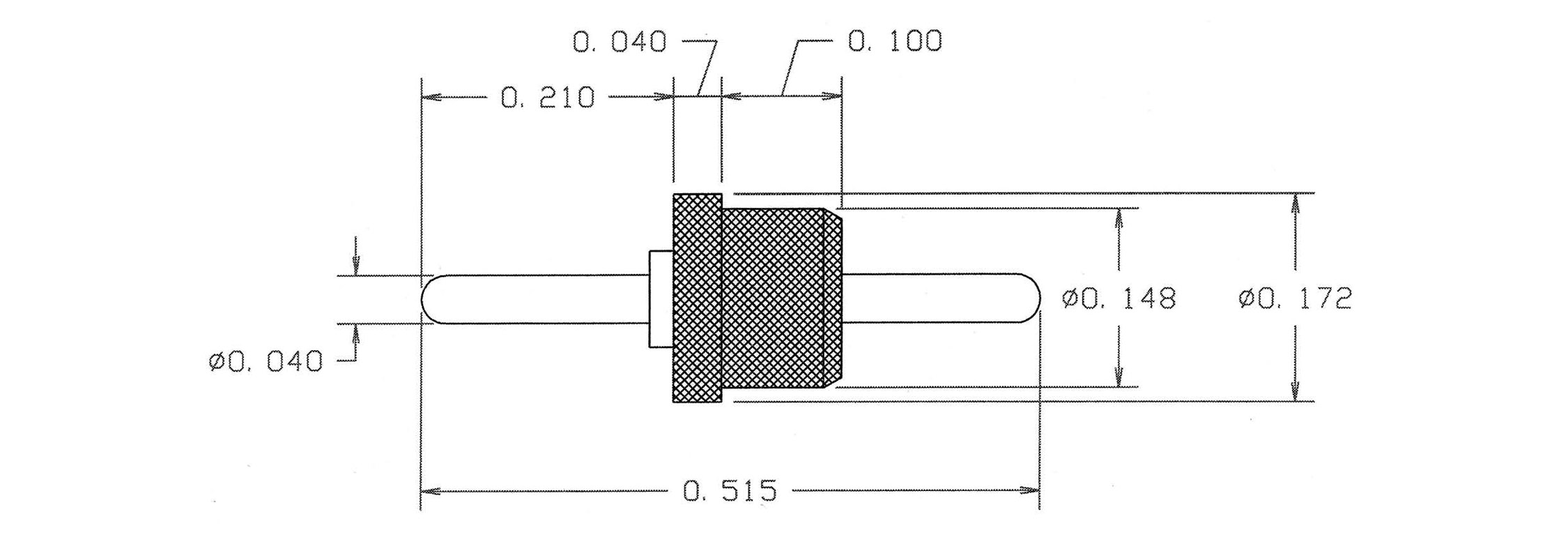

1153-06-04411
1153-06-04411
1153-06-04411
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1153-31-0517
1153-31-0517
1153-31-0517
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Violet NO
1154-10-0113
1154-10-0113
1154-10-0113
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Orange NO
1154-44-0319
1154-44-0319
1154-44-0319
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Gold - - PTFE White YES
