Commercial
Insulated
Pin Terminals

Filter
1127-34-08815
1127-34-08815
1127-34-08815
0.688" - - Swage Mount 1/16 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
1127-39-0311
1127-39-0311
1127-39-0311
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1127-43-0417
1127-43-0417
1127-43-0417
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-47-0513
1127-47-0513
1127-47-0513
0.844" - - Swage Mount 3/32 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO
1127-51-08819
1127-51-08819
1127-51-08819
0.844" - - Swage Mount 3/32 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO

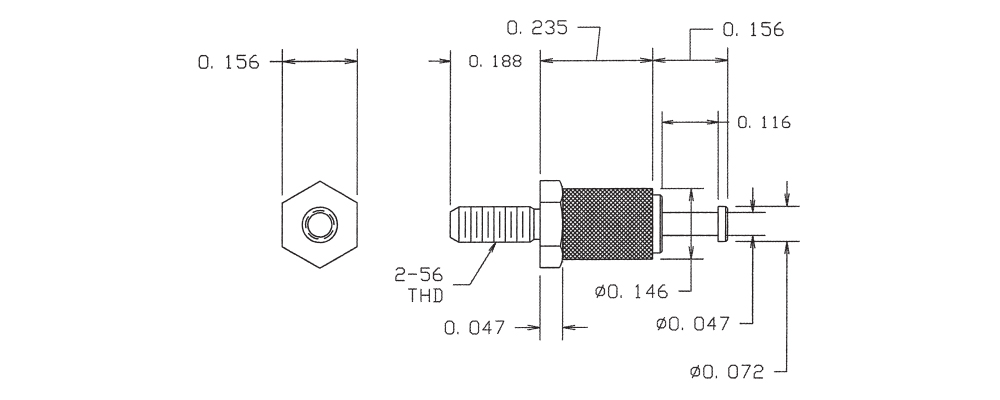

1127-57-0315
1127-57-0315
1127-57-0315
0.579" - - 2-56 Nut 1/16 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES
1127-61-04411
1127-61-04411
1127-61-04411
0.704" - - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-65-0517
1127-65-0517
1127-65-0517
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO

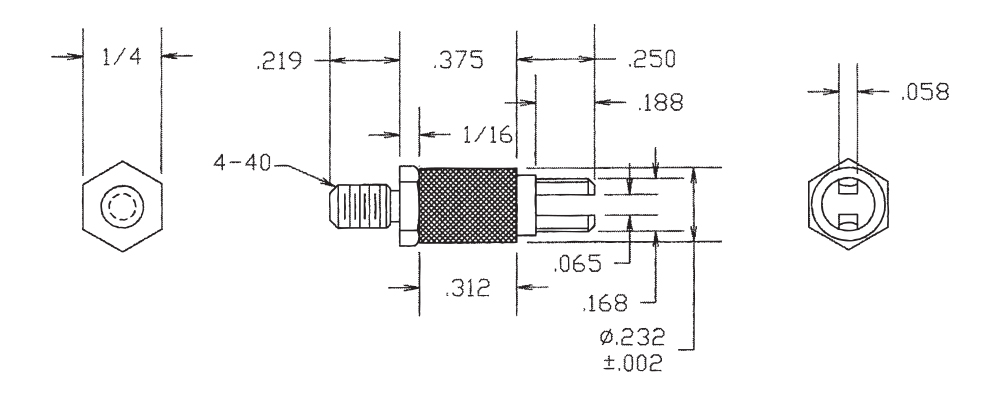

1127-70-0113
1127-70-0113
1127-70-0113
0.844" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES
1127-74-0319
1127-74-0319
1127-74-0319
1.000" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE White YES
1127-78-04415
1127-78-04415
1127-78-04415
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES

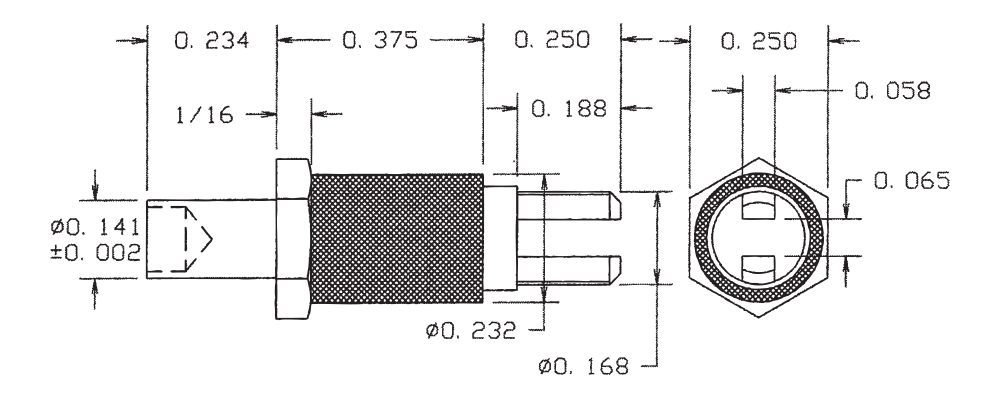

1127-82-08811
1127-82-08811
1127-82-08811
0.859" - - Swage Mount 3/16 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO
1127-87-0117
1127-87-0117
1127-87-0117
0.515" - - 2-56 Nut 1/32 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-91-0413
1127-91-0413
1127-91-0413
0.674" - - Swage Mount 3/32 0.082 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-95-04419
1127-95-04419
1127-95-04419
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1130-01-08815
1130-01-08815
1130-01-08815
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1130-07-0311
1130-07-0311
1130-07-0311
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Brown NO
1130R-05-0417
1130R-05-0417
1130R-05-0417
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Violet YES
1131-02-0513
1131-02-0513
1131-02-0513
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Orange NO
1131-06-08819
1131-06-08819
1131-06-08819
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE White NO
