Commercial
Insulated
Pin Terminals

Filter

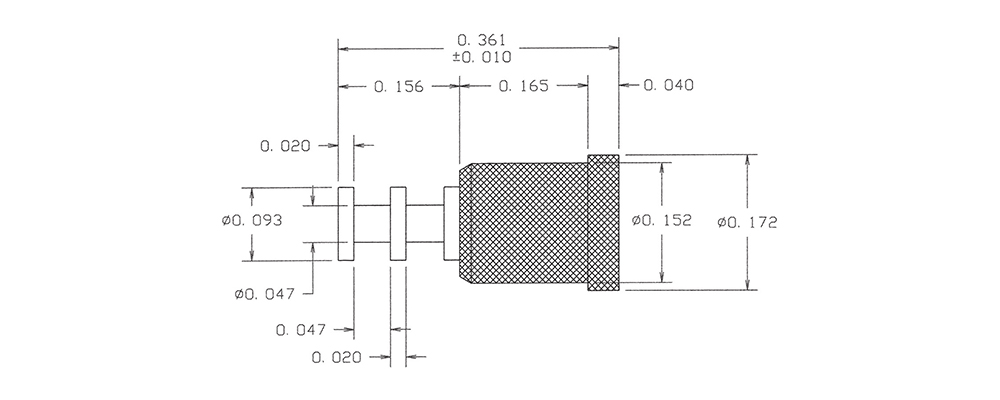

1102R-28-0112
1102R-28-0112
1102R-28-0112
0.361" - - Press Fit 1/8 0.140 Brass Silver - - PTFE Red NO
1102R-74-0318
1102R-74-0318
1102R-74-0318
0.375" - - Press Fit 3/32 0.172 Brass Gold - - PTFE Gray NO
1102R-92-04414
1102R-92-04414
1102R-92-04414
0.460" - - Press Fit 3/32 0.172 Brass Bright Tin - - PTFE Yellow NO
1103-07-08810
1103-07-08810
1103-07-08810
0.519" - - Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1103R-08-0116
1103R-08-0116
1103R-08-0116
0.320" - - Press Fit 3/32 0.158 Brass Silver - - PTFE Blue YES

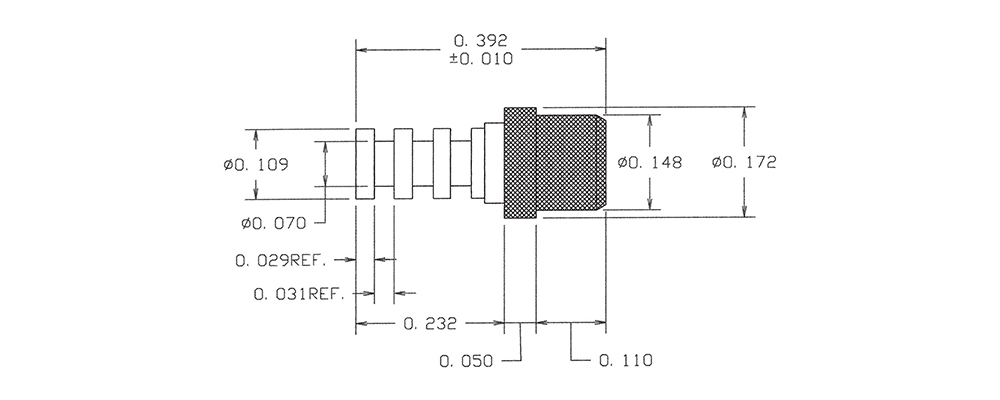

1104-04-0412
1104-04-0412
1104-04-0412
0.392" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1105-01-04418
1105-01-04418
1105-01-04418
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Bright Tin - - PTFE Gray NO
1106-02-08814
1106-02-08814
1106-02-08814
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
1106-07-0310
1106-07-0310
1106-07-0310
0.602" - - Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Black YES

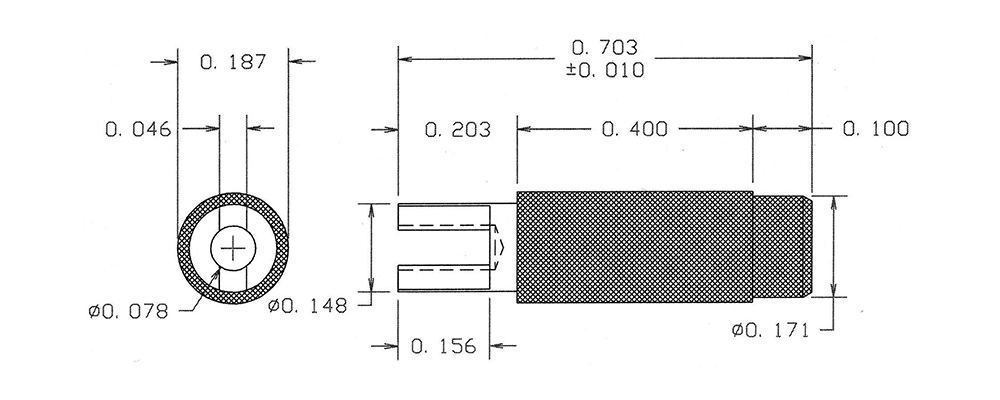

1106-11-0416
1106-11-0416
1106-11-0416
0.703" - - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Blue YES
1106-15-0512
1106-15-0512
1106-15-0512
1.190" - - Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Red NO
1106-19-08818
1106-19-08818
1106-19-08818
1.190" - - Press Fit 5/32 0.205 Brass Bright Tin-Lead - - PTFE Gray NO
1106-52-0314
1106-52-0314
1106-52-0314
0.276" - - Press Fit 3/32 0.086 Brass Gold - - PTFE Yellow NO

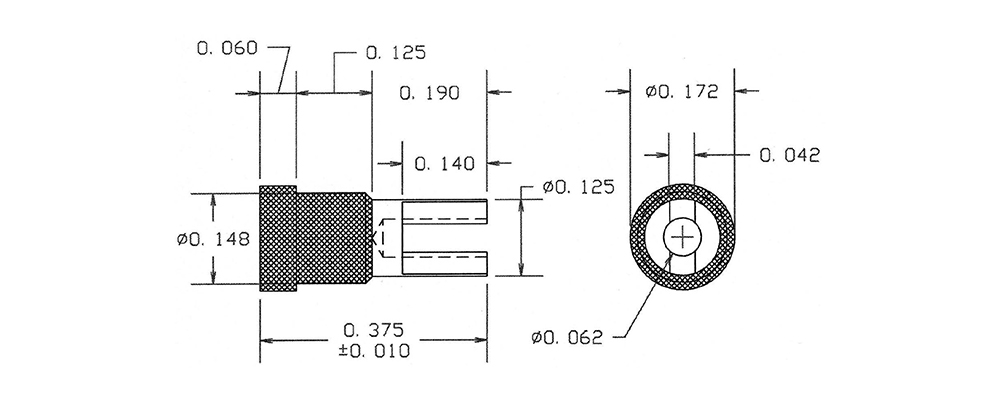

1106R-23-04410
1106R-23-04410
1106R-23-04410
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Black YES

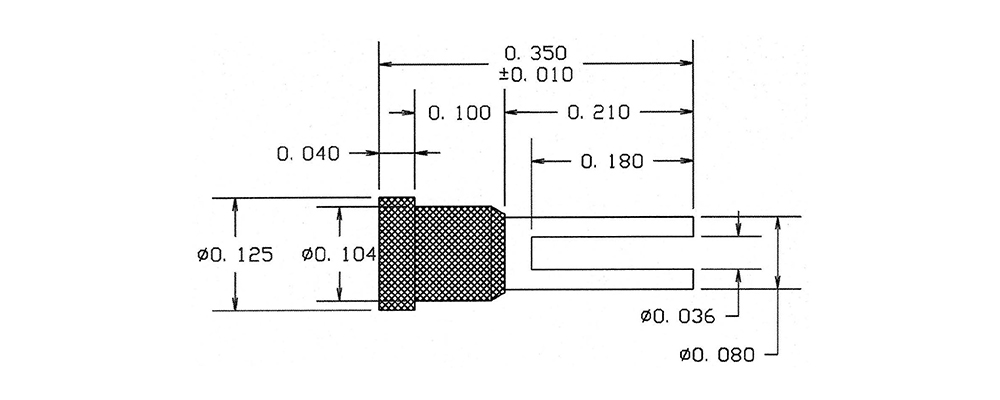

1106R-50-0516
1106R-50-0516
1106R-50-0516
0.350" - - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Blue NO
1107-03-0112
1107-03-0112
1107-03-0112
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Silver - - PTFE Red NO

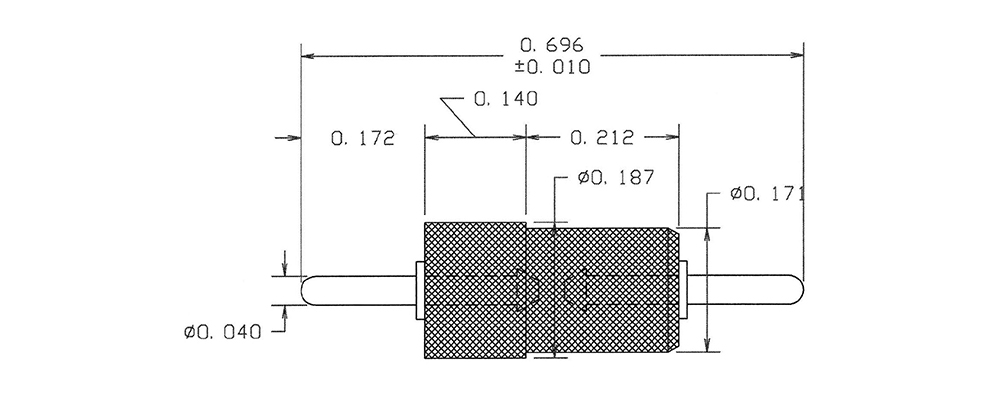

1107-08-0318
1107-08-0318
1107-08-0318
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Gray NO

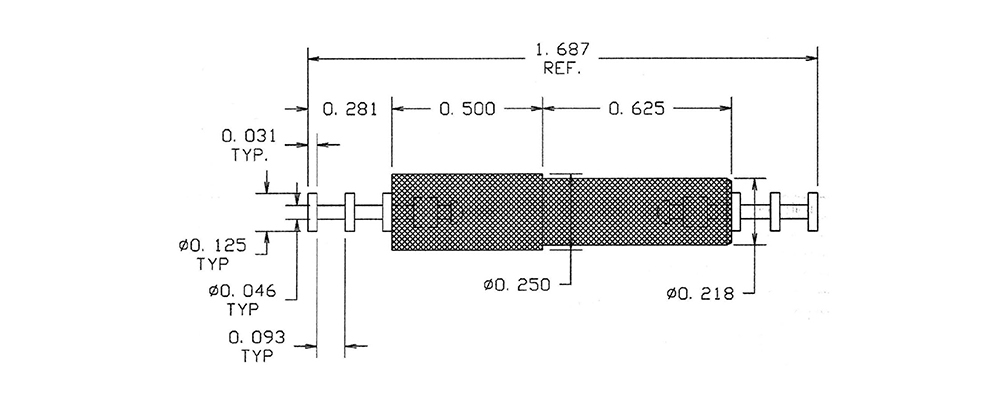

1108-01-04414
1108-01-04414
1108-01-04414
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Bright Tin - - PTFE Yellow NO

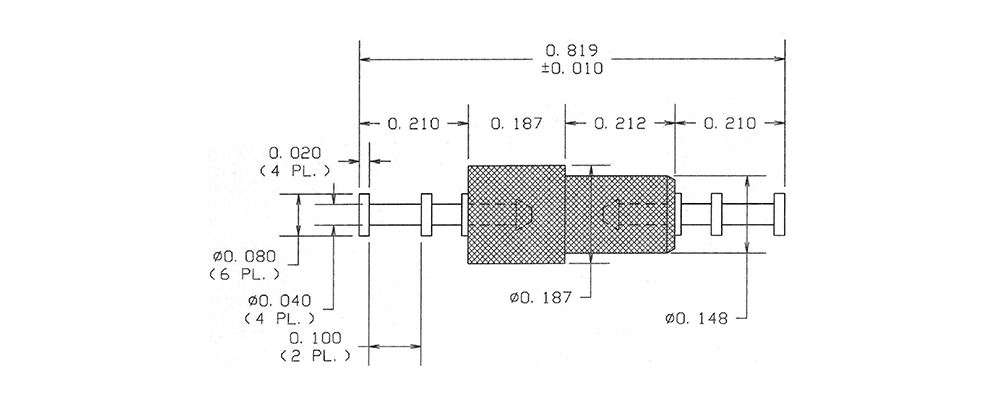

1108-05-08810
1108-05-08810
1108-05-08810
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1110-02-0116
1110-02-0116
1110-02-0116
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Blue YES
