Commercial
Insulated
Pin Terminals

Filter
1103R-08-0518
1103R-08-0518
1103R-08-0518
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Gray NO
1104-51-0114
1104-51-0114
1104-51-0114
0.255" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Yellow NO

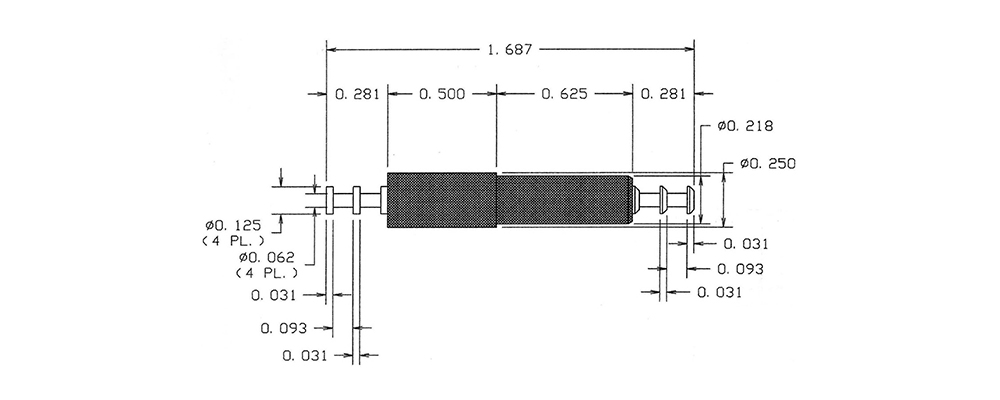

1105-02-0410
1105-02-0410
1105-02-0410
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Electro-Tin - - PTFE Black YES

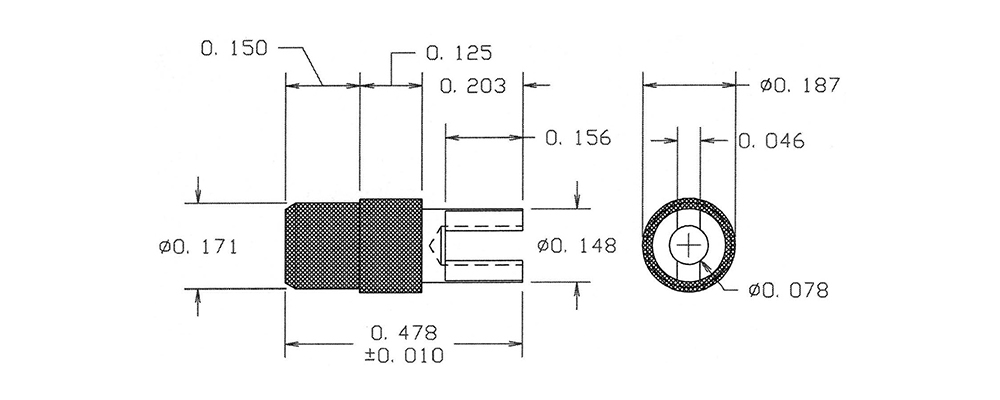

1106-03-04416
1106-03-04416
1106-03-04416
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Blue YES

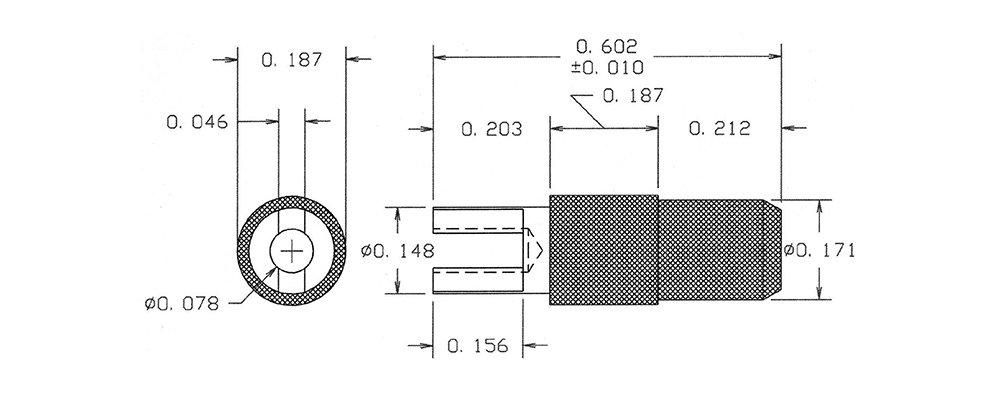

1106-07-08812
1106-07-08812
1106-07-08812
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Red NO
1106-12-0118
1106-12-0118
1106-12-0118
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Gray NO
1106-16-0414
1106-16-0414
1106-16-0414
0.890" - - Press Fit 5/32 0.205 Brass Electro-Tin - - PTFE Yellow NO
1106-22-0510
1106-22-0510
1106-22-0510
0.375" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Black NO
1106-52-08816
1106-52-08816
1106-52-08816
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1106R-24-0312
1106R-24-0312
1106R-24-0312
0.890" - - Press Fit 5/32 0.158 Brass Gold - - PTFE Red NO
1106R-51-0418
1106R-51-0418
1106R-51-0418
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Gray NO

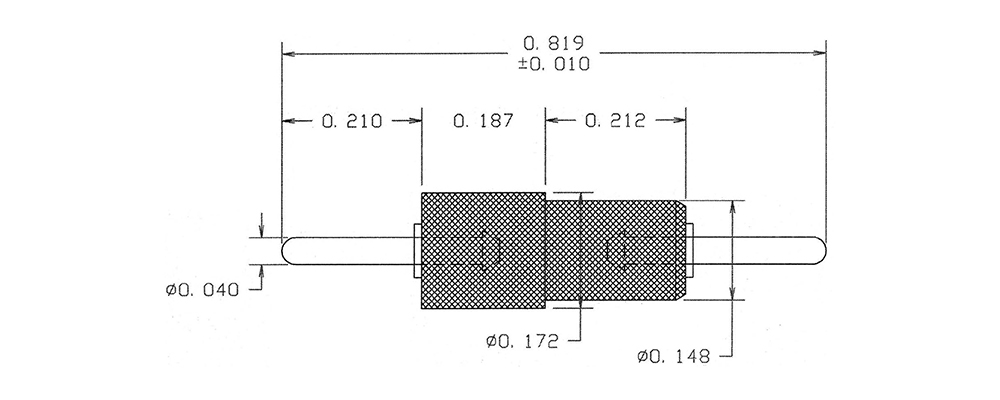

1107-03-0514
1107-03-0514
1107-03-0514
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1107-09-0110
1107-09-0110
1107-09-0110
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Black YES
1108-02-0316
1108-02-0316
1108-02-0316
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Gold - - PTFE Blue YES
1108-06-04412
1108-06-04412
1108-06-04412
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Bright Tin - - PTFE Red NO

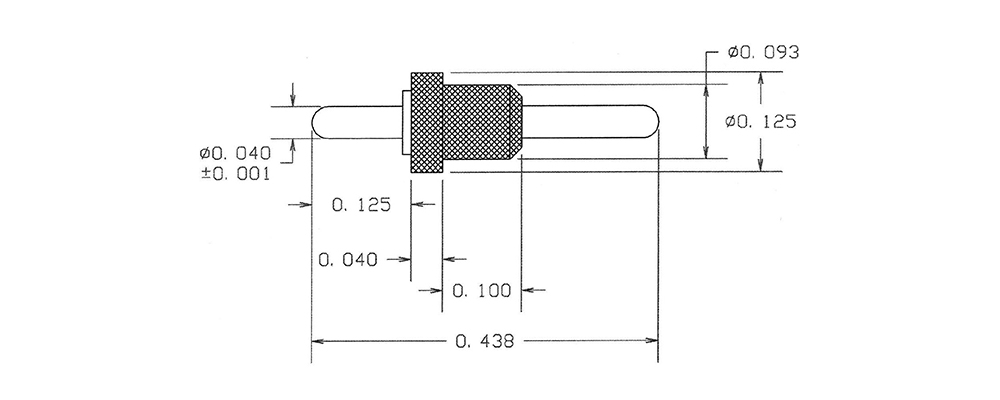

1110-02-0518
1110-02-0518
1110-02-0518
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Gray NO

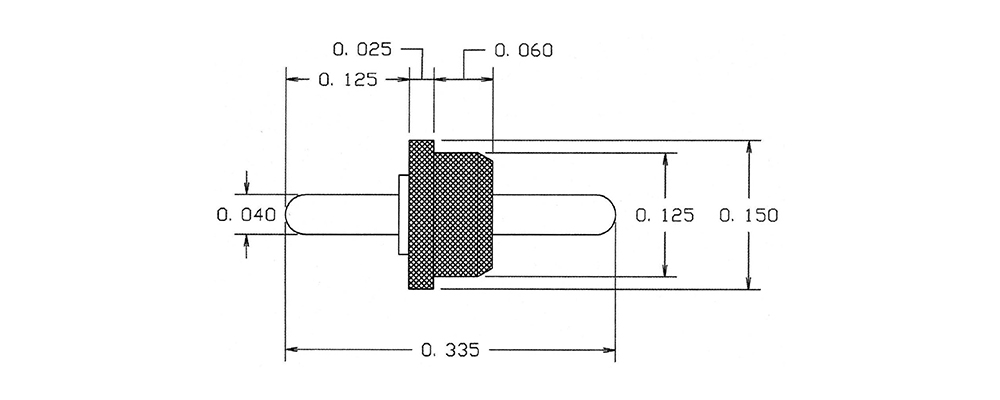

1110-07-0114
1110-07-0114
1110-07-0114
0.355" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Silver - - PTFE Yellow NO

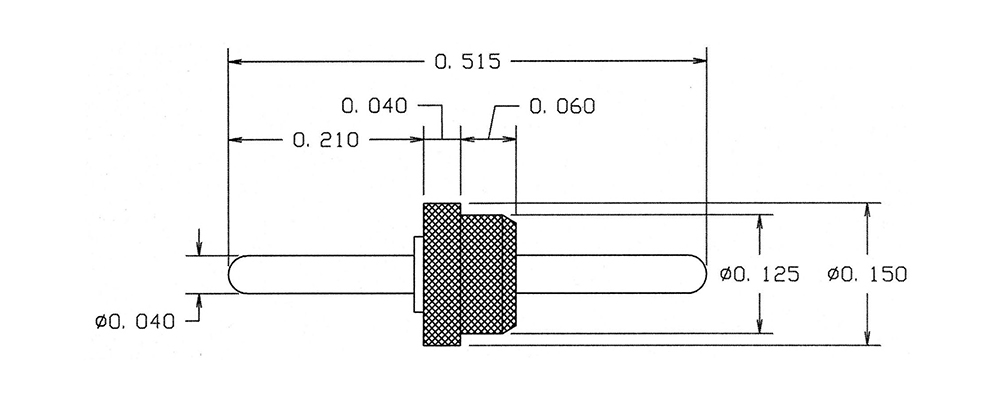

1110-11-0410
1110-11-0410
1110-11-0410
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Black YES
1110-16-04416
1110-16-04416
1110-16-04416
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1110-20-08812
1110-20-08812
1110-20-08812
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
