Non-Insulated
PC Jacks

Filter
09-6010-2-088
09-6010-2-088
09-6010-2-088
0.015 - 0.025 0.140 " 0.563" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-9677-1-04
09-9677-1-04
09-9677-1-04
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9610-1-06
09-9610-1-06
09-9610-1-06
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Electro-Tin Vertical
09-9172-1-035
09-9172-1-035
09-9172-1-035
0.014 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 3/32 - 3/16 0.055 Brass Gold Vertical
09-9248-1-04
09-9248-1-04
09-9248-1-04
0.040 0.185 " 0.220" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9257-1-088
09-9257-1-088
09-9257-1-088
0.040 0.225 " 0.372" - Press Fit/Solder - 1/16 - 1/4 0.092 Brass Bright Tin-Lead Vertical

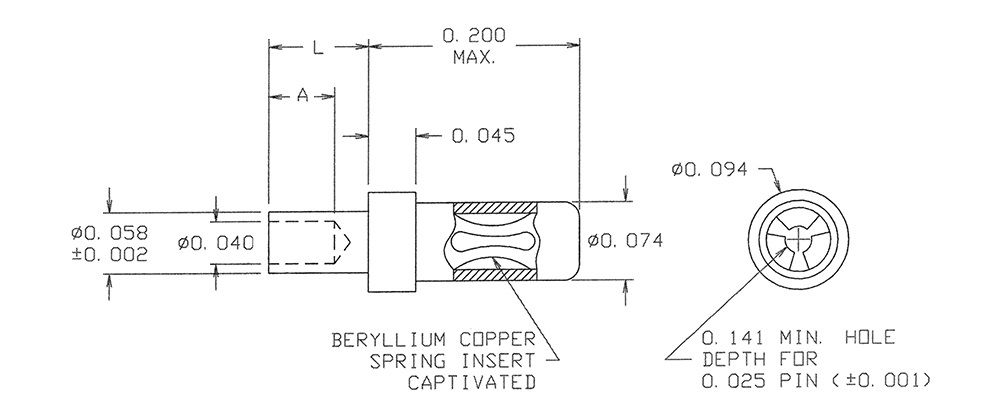

09-9020-4-035
09-9020-4-035
09-9020-4-035
0.025 0.141 " 0.356" - Swage Mount 0.156" 1/8 0.062 Brass Gold Vertical
09-9657-1-03
09-9657-1-03
09-9657-1-03
0.065 - 0.082 0.195 " 0.223" - Press Fit/Solder - 1/16 - 5/32 0.142 Brass Gold Vertical
09-9655-1-088
09-9655-1-088
09-9655-1-088
0.065 - 0.082 0.220 " 0.505" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical
09-9655-1-063
09-9655-1-063
09-9655-1-063
0.065 - 0.082 0.220 " 0.505" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical
09-9287-1-088
09-9287-1-088
09-9287-1-088
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.145 Brass Bright Tin-Lead Vertical
09-9287-1-035
09-9287-1-035
09-9287-1-035
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.145 Brass Gold Vertical
09-9067-6-088
09-9067-6-088
09-9067-6-088
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9067-6-04
09-9067-6-04
09-9067-6-04
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9067-6-035
09-9067-6-035
09-9067-6-035
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9067-6-03
09-9067-6-03
09-9067-6-03
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9608-1-06
09-9608-1-06
09-9608-1-06
0.032 - 0.046 0.220 " 0.317" - Solder - 1/32 - 3/32 0.089 Brass Electro-Tin Vertical
09-9067-4-088
09-9067-4-088
09-9067-4-088
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9067-4-06
09-9067-4-06
09-9067-4-06
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9067-4-04
09-9067-4-04
09-9067-4-04
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
