Commercial
Insulated
Pin Terminals

Filter

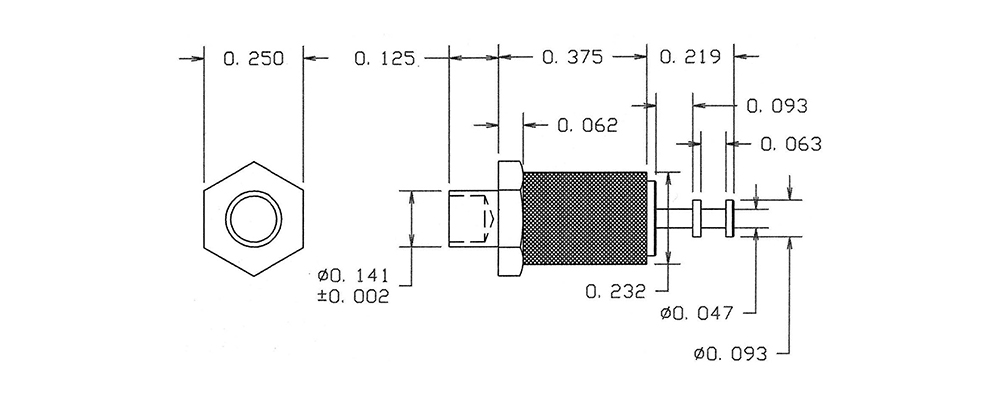

1127-35-0315
1127-35-0315
1127-35-0315
0.719" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES

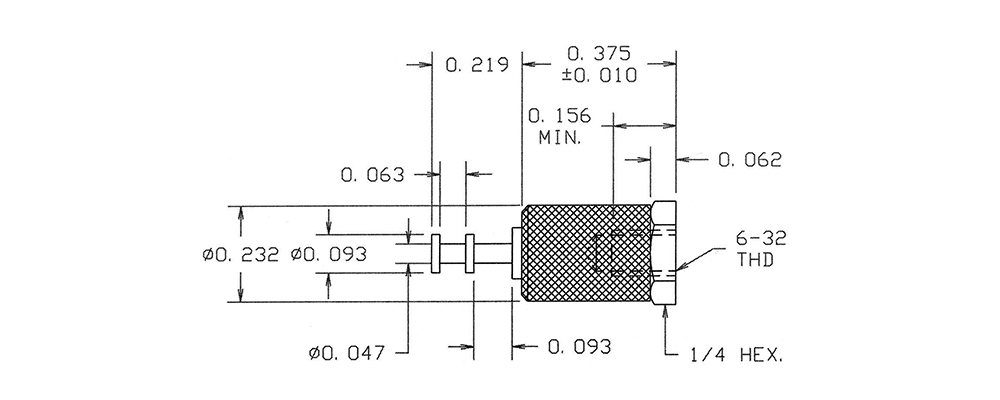

1127-39-04411
1127-39-04411
1127-39-04411
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES

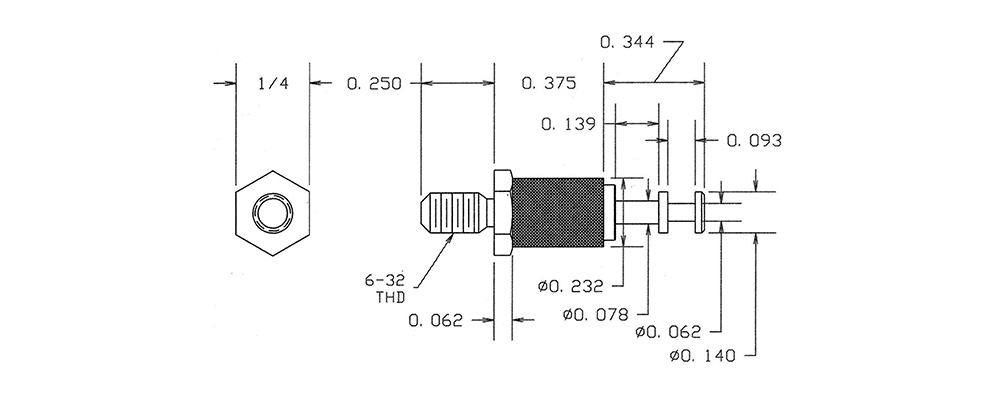

1127-43-0517
1127-43-0517
1127-43-0517
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO
1127-48-0113
1127-48-0113
1127-48-0113
0.875" - - Swage Mount 1/8 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES
1127-52-0319
1127-52-0319
1127-52-0319
0.875" - - Swage Mount 1/8 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE White YES

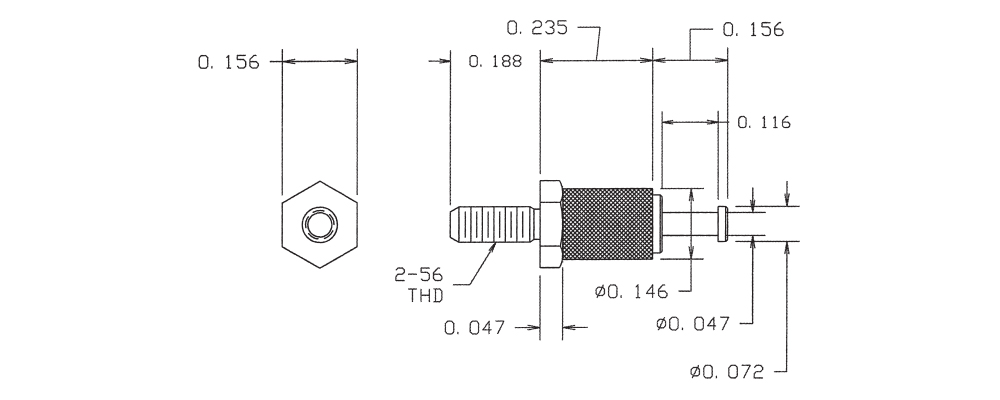

1127-57-04415
1127-57-04415
1127-57-04415
0.579" - - 2-56 Nut 1/16 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES

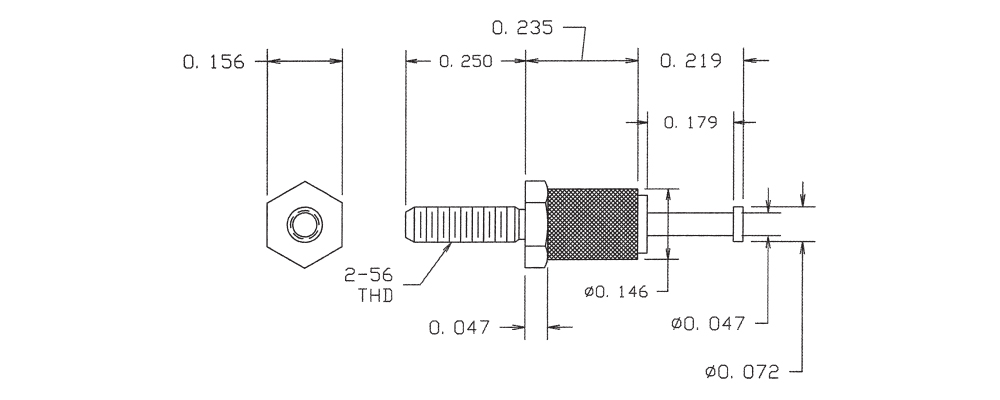

1127-61-08811
1127-61-08811
1127-61-08811
0.704" - - 2-56 Nut 1/8 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO

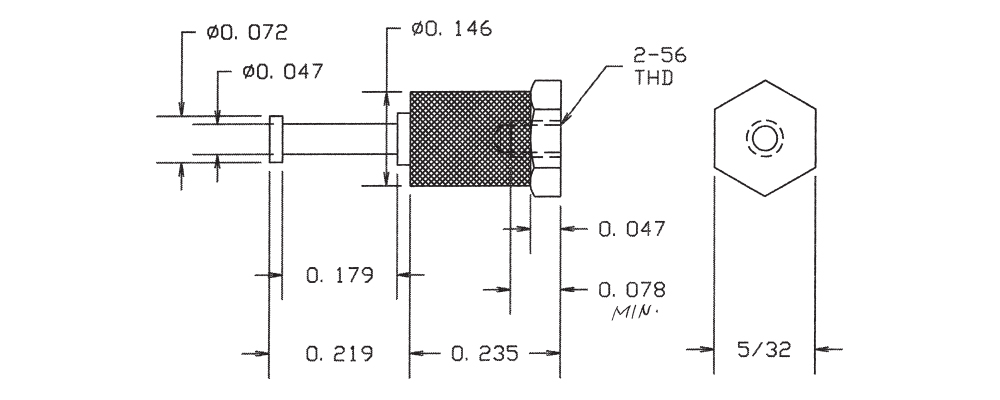

1127-66-0117
1127-66-0117
1127-66-0117
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-70-0413
1127-70-0413
1127-70-0413
0.844" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-74-04419
1127-74-04419
1127-74-04419
1.000" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-78-08815
1127-78-08815
1127-78-08815
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO

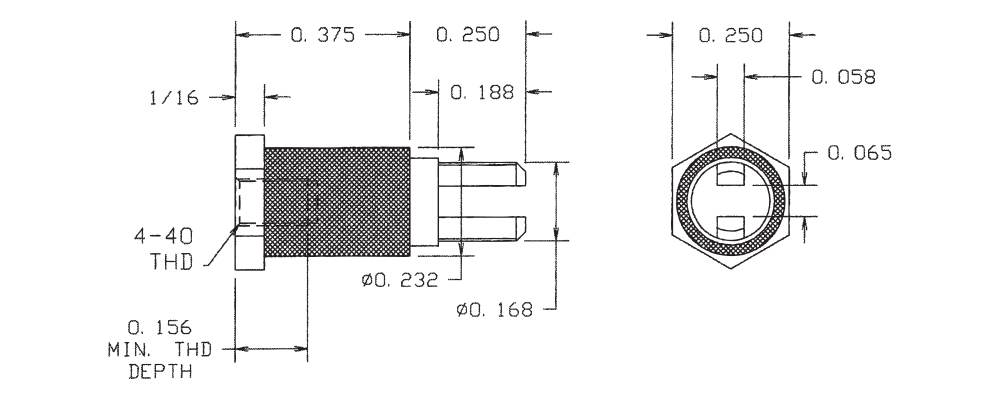

1127-83-0311
1127-83-0311
1127-83-0311
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1127-87-0417
1127-87-0417
1127-87-0417
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-91-0513
1127-91-0513
1127-91-0513
0.674" - - Swage Mount 3/32 0.082 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO
1127-95-08819
1127-95-08819
1127-95-08819
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO

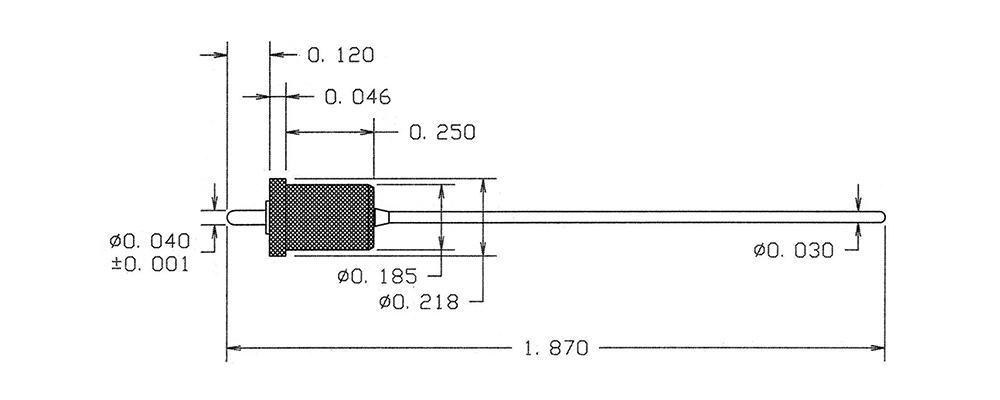

1130-02-0315
1130-02-0315
1130-02-0315
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Gold - - PTFE Green YES
1130-07-04411
1130-07-04411
1130-07-04411
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Brown NO
1130R-05-0517
1130R-05-0517
1130R-05-0517
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Violet NO
1131-03-0113
1131-03-0113
1131-03-0113
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Silver - - PTFE Orange NO
1131-07-0319
1131-07-0319
1131-07-0319
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Gold - - PTFE White YES
