Commercial
Insulated
Pin Terminals

Filter
1106R-20-04414
1106R-20-04414
1106R-20-04414
0.478" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Yellow NO
1106-53-04414
1106-53-04414
1106-53-04414
0.641" - - Press Fit Up to 1/4 0.205 Brass Bright Tin - - PTFE Yellow NO
1157-05-08810
1157-05-08810
1157-05-08810
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1113-05-08810
1113-05-08810
1113-05-08810
0.460" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1125-38-04416
1125-38-04416
1125-38-04416
0.788" - - 4-40 Nut 1/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Blue YES
1100-08-04412
1100-08-04412
1100-08-04412
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin - - PTFE Red NO
1106-24-04413
1106-24-04413
1106-24-04413
0.890" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Orange NO
1121-52-04414
1121-52-04414
1121-52-04414
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1106-16-04416
1106-16-04416
1106-16-04416
0.890" - - Press Fit 5/32 0.205 Brass Bright Tin - - PTFE Blue YES
1106-13-04414
1106-13-04414
1106-13-04414
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Yellow NO
1157-01-04419
1157-01-04419
1157-01-04419
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1110-11-04410
1110-11-04410
1110-11-04410
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Black YES
1106-08-04413
1106-08-04413
1106-08-04413
0.603" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Orange NO
1125-87-08810
1125-87-08810
1125-87-08810
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Bright Tin-Lead ZINC Brass PTFE Black NO
1106-07-04410
1106-07-04410
1106-07-04410
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Black YES
1110-13-04419
1110-13-04419
1110-13-04419
0.325" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1106-07-04412
1106-07-04412
1106-07-04412
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Red NO
1127-61-08810
1127-61-08810
1127-61-08810
0.704" - - 2-56 Nut 1/8 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO
1106-07-04419
1106-07-04419
1106-07-04419
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE White YES

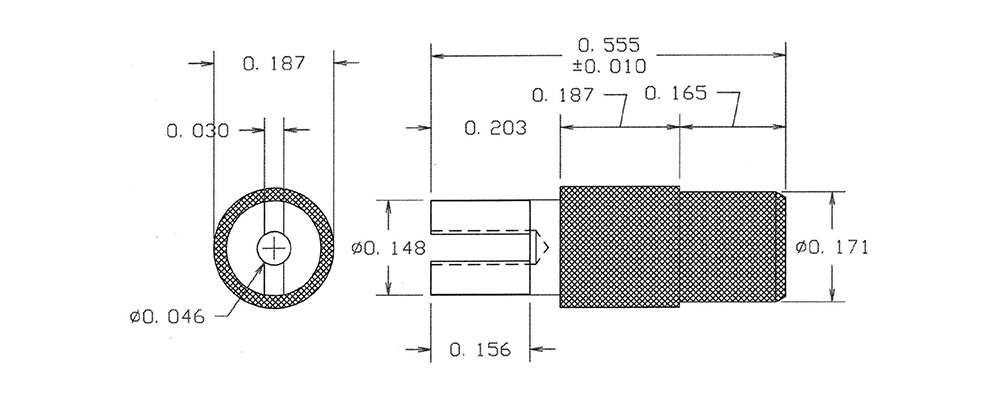

1106-06-04416
1106-06-04416
1106-06-04416
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Blue YES
