Commercial
Insulated
Pin Terminals

Filter
1100-04-0116
1100-04-0116
1100-04-0116
0.250" 0.040 - Press Fit 3/64 0.086 Brass Silver - - PTFE Blue YES
1114-24-0112
1114-24-0112
1114-24-0112
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1100-08-0412
1100-08-0412
1100-08-0412
0.250" 0.040 - Press Fit 3/64 0.091 Brass Electro-Tin - - PTFE Red NO
1114-27-0318
1114-27-0318
1114-27-0318
0.367" 0.085 - Press Fit 1/16 0.158 Brass Gold - - PTFE Gray NO
1100-13-04418
1100-13-04418
1100-13-04418
0.265" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO

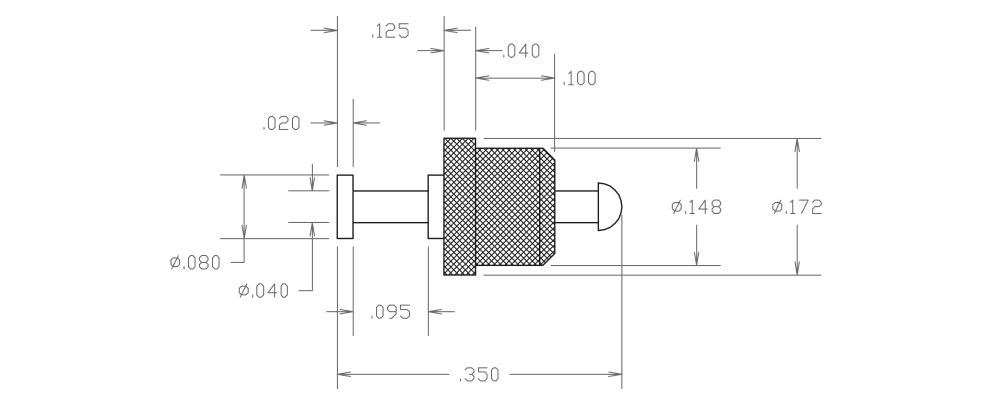

1121-08-04414
1121-08-04414
1121-08-04414
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1100-17-08814
1100-17-08814
1100-17-08814
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

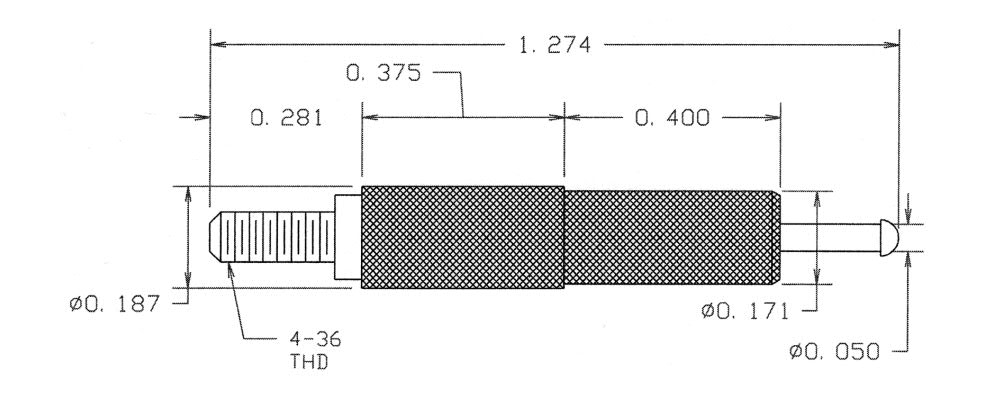

1124-03-08810
1124-03-08810
1124-03-08810
1.274" 0.050 THREAD/TIP Press Fit Up to 3/8 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1100-22-0310
1100-22-0310
1100-22-0310
0.310" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Black YES
1125-80-0116
1125-80-0116
1125-80-0116
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Blue YES
1100-32-0416
1100-32-0416
1100-32-0416
0.370" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES

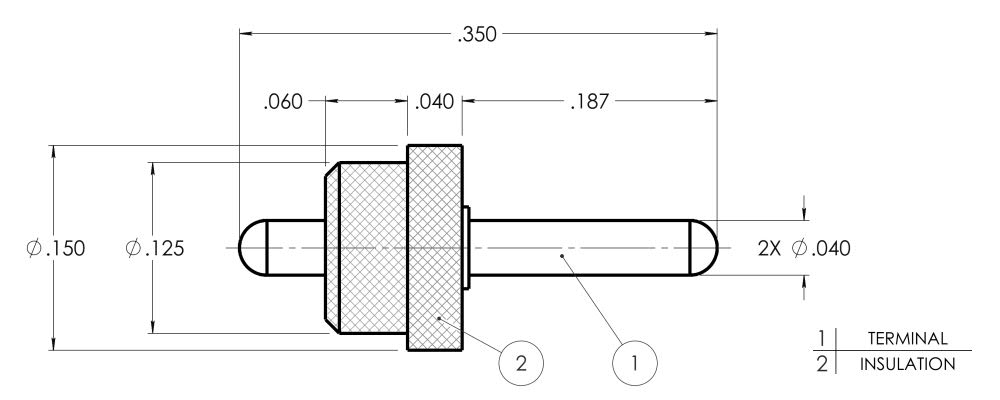

1110-54-0412
1110-54-0412
1110-54-0412
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Red NO
1100-42-0512
1100-42-0512
1100-42-0512
0.750" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Red NO
1100-46-08818
1100-46-08818
1100-46-08818
0.350" 0.040 - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
1100-73-0314
1100-73-0314
1100-73-0314
0.580" 0.063 - Press Fit 1/16 0.158 Brass Gold - - PTFE Yellow NO
1100R-08-04410
1100R-08-04410
1100R-08-04410
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Black YES
1100R-14-0516
1100R-14-0516
1100R-14-0516
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Blue NO
1100R-28-0112
1100R-28-0112
1100R-28-0112
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1100R-63-0318
1100R-63-0318
1100R-63-0318
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Gold - - PTFE Gray NO
1101-04-04414
1101-04-04414
1101-04-04414
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO
