Commercial
Insulated
Pin Terminals

Filter
09-2039-1-04416
09-2039-1-04416
09-2039-1-04416
0.400" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1104R-53-04412
1104R-53-04412
1104R-53-04412
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Red NO
09-2090-1-08812
09-2090-1-08812
09-2090-1-08812
1.260" 0.040 (+0.001/-0.005) Pin/Pin Press Fit 1/32 0.076 Brass Bright Tin-Lead - - PTFE Red NO
1111-06-0518
1111-06-0518
1111-06-0518
0.438" 0.040 DOUBLE Turret/Tip Press Fit 3/64 0.136 Brass Electro Solder - - PTFE Gray NO
09-2101-1-0118
09-2101-1-0118
09-2101-1-0118
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Silver - - PTFE Gray NO
1112-05-0114
1112-05-0114
1112-05-0114
0.200" - - Press Fit 1/32 0.113 Brass Silver - - PTFE Yellow NO
09-2111-1-0414
09-2111-1-0414
09-2111-1-0414
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin Nickel Brass PTFE Yellow NO
1112-20-0410
1112-20-0410
1112-20-0410
0.333" - - Press Fit 1/8 0.250 Brass Electro-Tin - - PTFE Black YES
09-2119-1-0510
09-2119-1-0510
09-2119-1-0510
1.200" 0.045 Pin/Pin Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Black NO
1114-16-04416
1114-16-04416
1114-16-04416
0.296" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1100-03-08816
1100-03-08816
1100-03-08816
0.245" 0.040 - Press Fit 3/64 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1114-22-08812
1114-22-08812
1114-22-08812
0.332" 0.085 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1100-08-0312
1100-08-0312
1100-08-0312
0.250" 0.040 - Press Fit 3/64 0.091 Brass Gold - - PTFE Red NO
1114-27-0118
1114-27-0118
1114-27-0118
0.367" 0.085 - Press Fit 1/16 0.158 Brass Silver - - PTFE Gray NO
1100-13-0418
1100-13-0418
1100-13-0418
0.265" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO

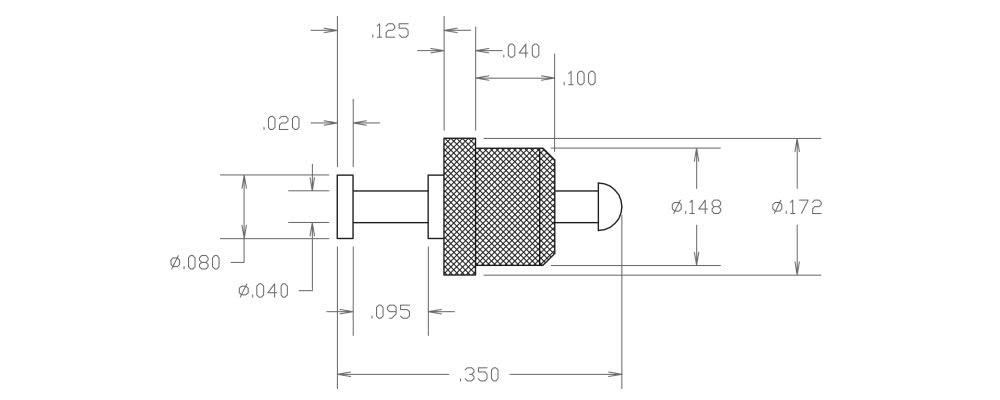

1121-08-0414
1121-08-0414
1121-08-0414
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Yellow NO
1100-17-0514
1100-17-0514
1100-17-0514
0.305" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO

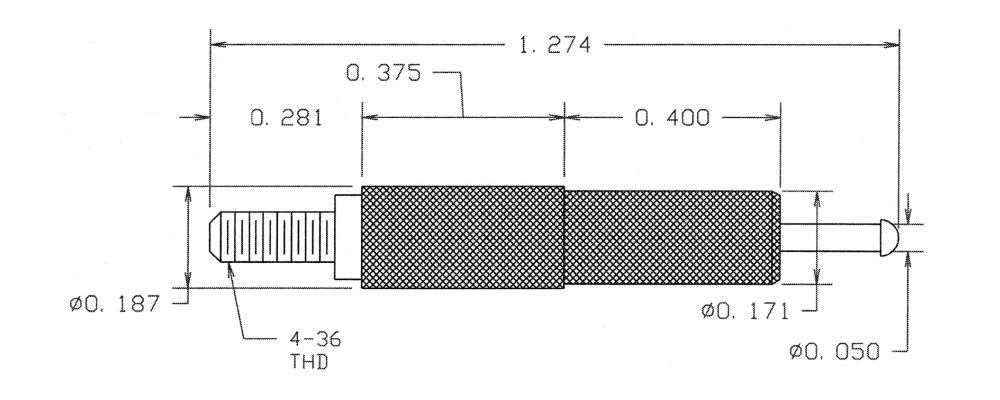

1124-03-0510
1124-03-0510
1124-03-0510
1.274" 0.050 THREAD/TIP Press Fit Up to 3/8 0.158 Brass Electro Solder - - PTFE Black NO
1100-22-0110
1100-22-0110
1100-22-0110
0.310" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Black YES
1125-36-08816
1125-36-08816
1125-36-08816
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Blue NO
