Commercial
Insulated
Pin Terminals

Filter
1110-44-04419
1110-44-04419
1110-44-04419
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE White YES
1110-48-08815
1110-48-08815
1110-48-08815
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1110-55-0311
1110-55-0311
1110-55-0311
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Gold - - PTFE Brown NO
1110-61-0417
1110-61-0417
1110-61-0417
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES
1110-66-0513
1110-66-0513
1110-66-0513
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1110-70-08819
1110-70-08819
1110-70-08819
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin-Lead - - PTFE White NO
1110-76-0315
1110-76-0315
1110-76-0315
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Gold - - PTFE Green YES
1110-93-04411
1110-93-04411
1110-93-04411
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Brown NO
1111-02-0517
1111-02-0517
1111-02-0517
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro Solder - - PTFE Violet NO

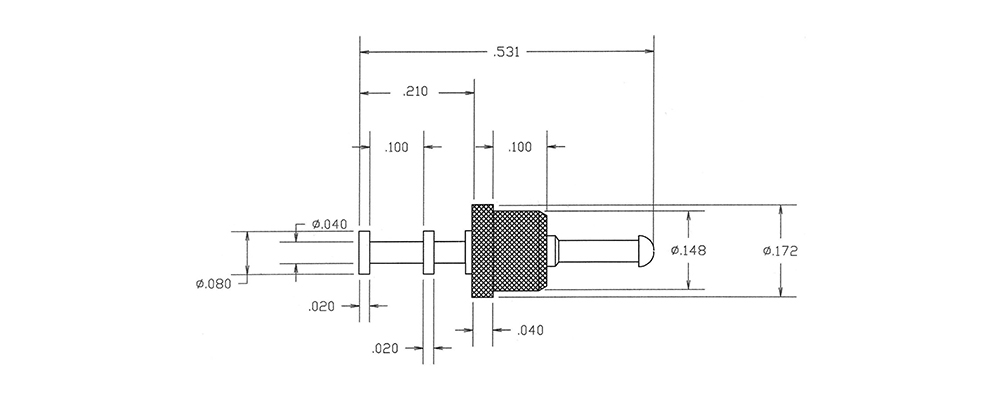

1111-11-0113
1111-11-0113
1111-11-0113
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1111-15-0319
1111-15-0319
1111-15-0319
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
1111-20-04415
1111-20-04415
1111-20-04415
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Green YES
1111-24-08811
1111-24-08811
1111-24-08811
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Bright Tin-Lead - - PTFE Brown NO
1111-34-0117
1111-34-0117
1111-34-0117
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.172 Brass Silver - - PTFE Violet YES
1111-38-0413
1111-38-0413
1111-38-0413
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Orange NO
1111-44-04419
1111-44-04419
1111-44-04419
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Bright Tin - - PTFE White YES
1111-50-08815
1111-50-08815
1111-50-08815
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1111-59-0311
1111-59-0311
1111-59-0311
0.750" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.086 Brass Gold - - PTFE Brown NO
1111R-09-0417
1111R-09-0417
1111R-09-0417
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1111R-14-0513
1111R-14-0513
1111R-14-0513
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Orange NO
