Commercial
Non-Insulated
Wire-Applied
Terminals

Part No	PIN MATERIAL	PIn Finish	Length	Pin Diameter	Hole Depth	AWG	RoHS
09-8085-1-05	Brass	Electro Solder	0.506"	0.080	0.169 "	22 AWG	NO

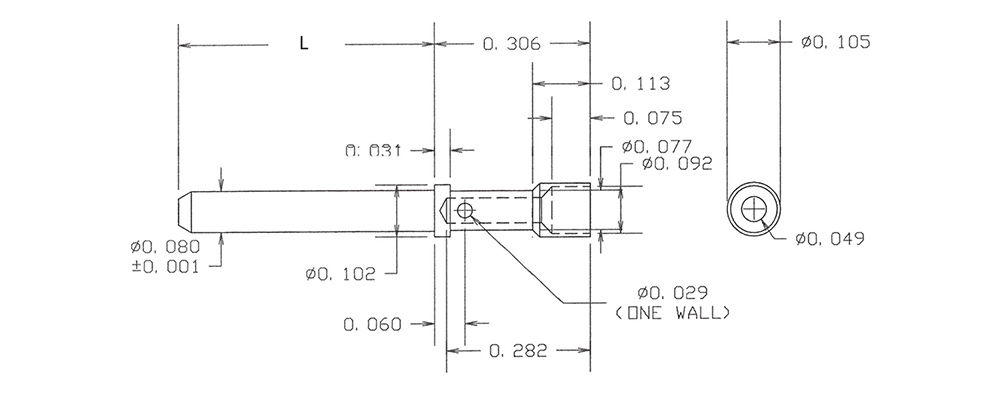

09-8085-3-044	Brass	Bright Tin	0.806"	0.080	0.169 "	22 AWG	YES

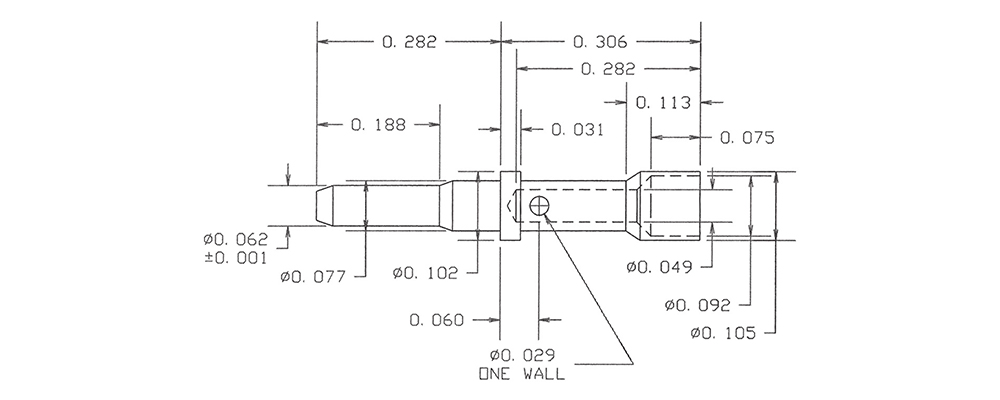

09-8086-1-044	Brass	Bright Tin	0.588"	0.062	0.169 "	22 AWG	YES

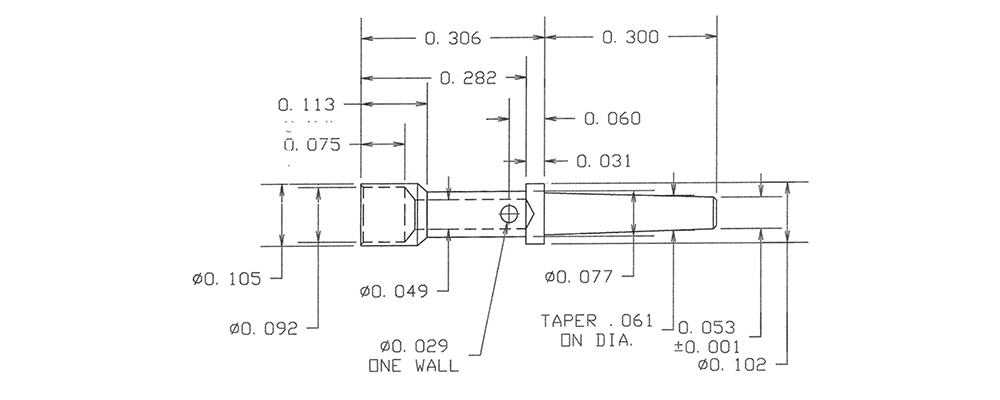

09-8087-1-03	Brass	Gold	0.606"	0.077	0.169 "	22 AWG	YES
09-0351-1-088	Brass	Bright Tin-Lead	0.590"	0.136	0.590 "	16 AWG	NO
09-0231-4-088	Brass	Bright Tin-Lead	0.380"	0.045 (+0.002/-0.001)	0.220 "	18 AWG	NO
09-0229-4-03	Brass	Gold	0.280"	0.045 (+0.002/-0.001)	0.120 "	22 AWG	YES
09-0248-5-088	Brass	Bright Tin-Lead	0.560"	0.045	0.165 "	22 AWG	NO
10-8501-2-088	Brass	Bright Tin-Lead	0.671"	0.080	0.267 "	20 AWG	NO

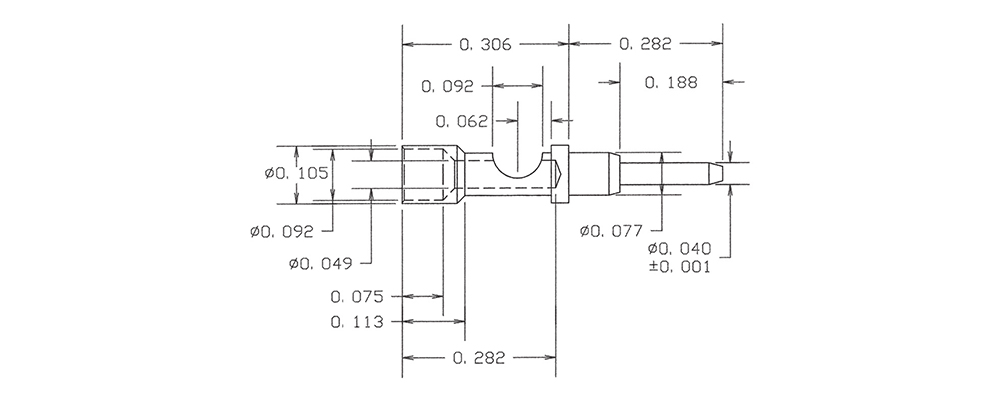

09-8534-1-035	Brass	Gold	0.588"	0.040	0.169 "	22 AWG	YES
10-8501-1-088	Brass	Bright Tin-Lead	0.496"	0.080	0.267 "	20 AWG	NO
09-0231-4-04	Brass	Electro-Tin	0.380"	0.045 (+0.002/-0.001)	0.220 "	18 AWG	YES
09-0248-5-044	Brass	Bright Tin	0.560"	0.045	0.165 "	22 AWG	YES

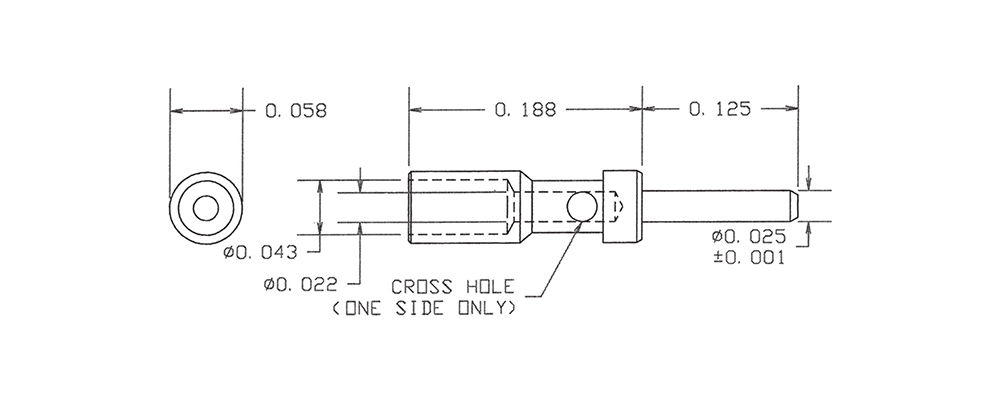

09-8106-1-044	Brass	Bright Tin	0.313"	0.025	0.075 "	28 AWG	YES
10-8501-3-035	Brass	Gold	0.796"	0.080	0.267 "	20 AWG	YES
09-8883-1-035	Brass	Gold	0.388"	0.025	0.075 "	28 AWG	YES
10-8501-2-035	Brass	Gold	0.671"	0.080	0.267 "	20 AWG	YES
09-8534-1-05	Brass	Electro Solder	0.588"	0.040	0.169 "	22 AWG	NO
09-0231-4-05	Brass	Electro Solder	0.380"	0.045 (+0.002/-0.001)	0.220 "	18 AWG	NO
09-8086-1-03	Brass	Gold	0.588"	0.062	0.169 "	22 AWG	YES
