Commercial
Non-Insulated
Wire-Applied
Terminals

Filter

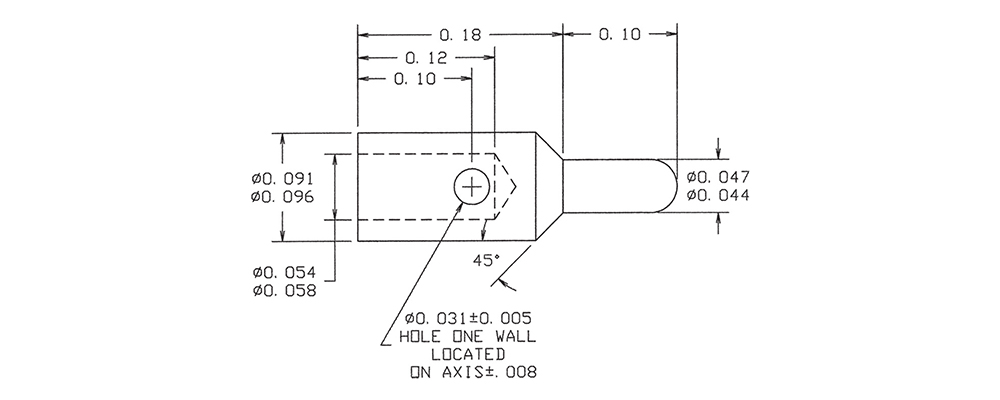

09-0229-4-04
09-0229-4-04
09-0229-4-04
Brass Electro-Tin 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG YES
09-0229-4-044
09-0229-4-044
09-0229-4-044
Brass Bright Tin 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG YES
09-0229-4-05
09-0229-4-05
09-0229-4-05
Brass Electro Solder 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG NO
09-0229-4-088
09-0229-4-088
09-0229-4-088
Brass Bright Tin-Lead 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG NO

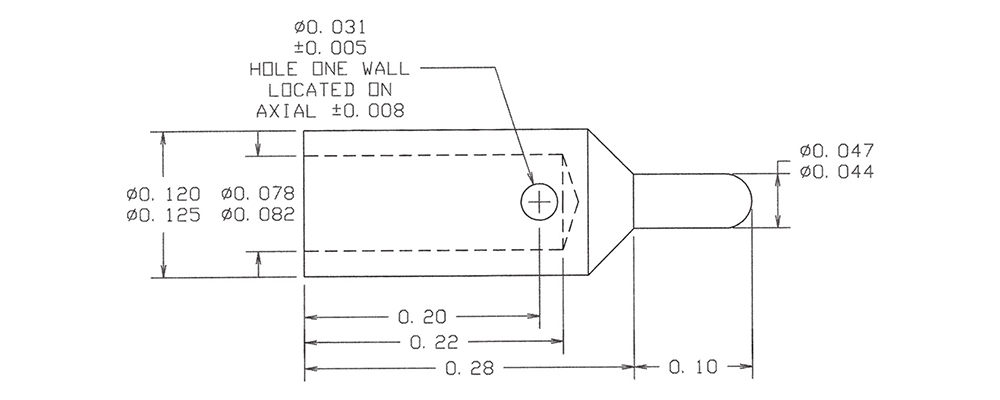

09-0231-4-03
09-0231-4-03
09-0231-4-03
Brass Gold 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG YES
09-0231-4-035
09-0231-4-035
09-0231-4-035
Brass Gold 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG YES
09-0231-4-04
09-0231-4-04
09-0231-4-04
Brass Electro-Tin 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG YES
09-0231-4-044
09-0231-4-044
09-0231-4-044
Brass Bright Tin 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG YES
09-0231-4-05
09-0231-4-05
09-0231-4-05
Brass Electro Solder 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG NO
09-0231-4-088
09-0231-4-088
09-0231-4-088
Brass Bright Tin-Lead 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG NO

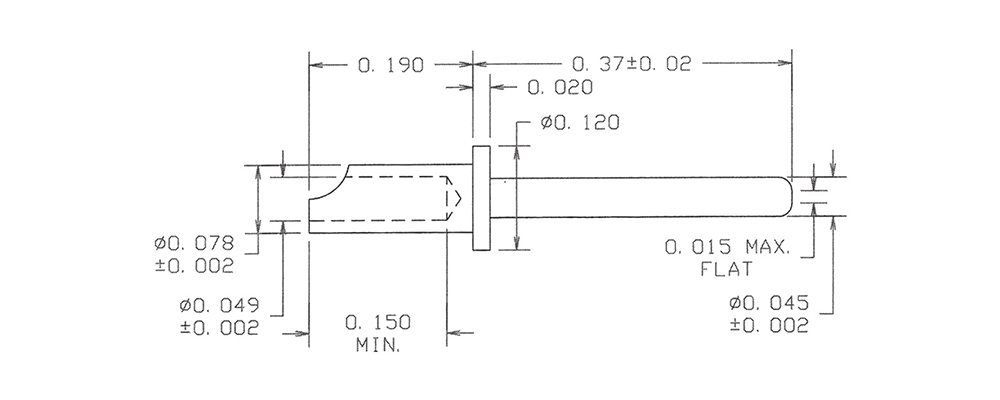

09-0248-5-03
09-0248-5-03
09-0248-5-03
Brass Gold 0.560" 0.045 0.165 " 22 AWG YES
09-0248-5-035
09-0248-5-035
09-0248-5-035
Brass Gold 0.560" 0.045 0.165 " 22 AWG YES
09-0248-5-04
09-0248-5-04
09-0248-5-04
Brass Electro-Tin 0.560" 0.045 0.165 " 22 AWG YES
09-0248-5-044
09-0248-5-044
09-0248-5-044
Brass Bright Tin 0.560" 0.045 0.165 " 22 AWG YES
09-0248-5-05
09-0248-5-05
09-0248-5-05
Brass Electro Solder 0.560" 0.045 0.165 " 22 AWG NO
09-0248-5-088
09-0248-5-088
09-0248-5-088
Brass Bright Tin-Lead 0.560" 0.045 0.165 " 22 AWG NO

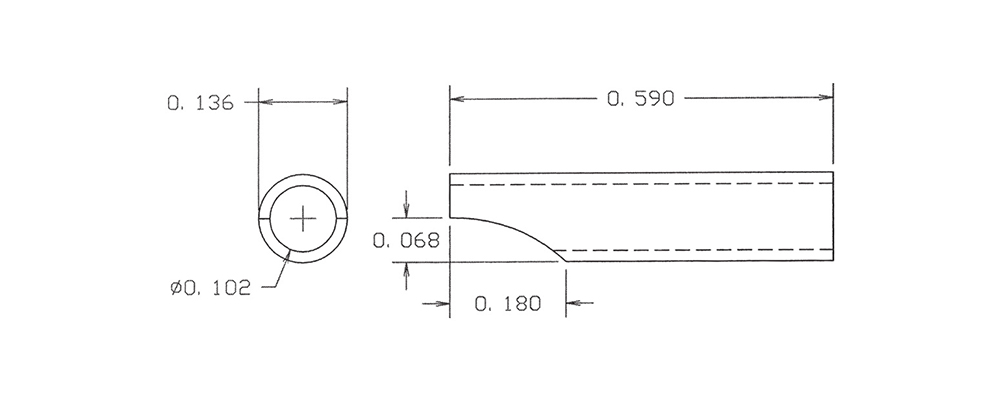

09-0351-1-03
09-0351-1-03
09-0351-1-03
Brass Gold 0.590" 0.136 0.590 " 16 AWG YES
09-0351-1-035
09-0351-1-035
09-0351-1-035
Brass Gold 0.590" 0.136 0.590 " 16 AWG YES
09-0351-1-04
09-0351-1-04
09-0351-1-04
Brass Electro-Tin 0.590" 0.136 0.590 " 16 AWG YES
09-0351-1-044
09-0351-1-044
09-0351-1-044
Brass Bright Tin 0.590" 0.136 0.590 " 16 AWG YES
