Commercial
Non-Insulated
Wire-Applied
Terminals

Filter

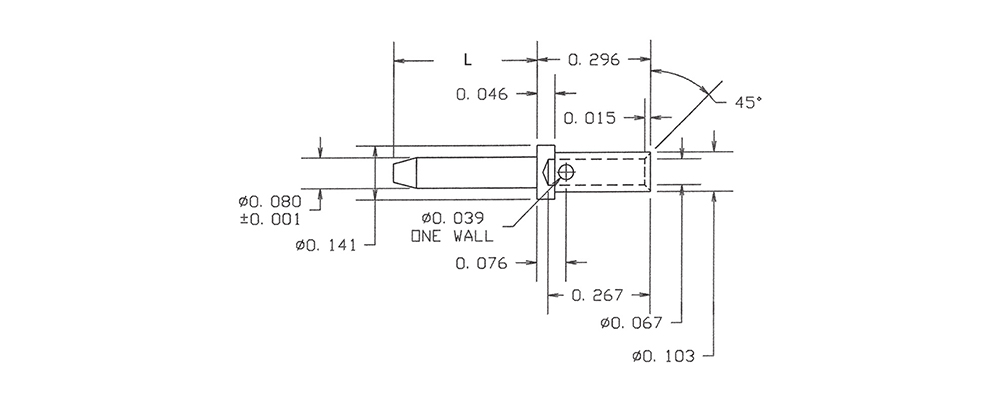

10-8501-3-088
10-8501-3-088
10-8501-3-088
Brass Bright Tin-Lead 0.796" 0.080 0.267 " 20 AWG NO
09-8026-1-088
09-8026-1-088
09-8026-1-088
Brass Bright Tin-Lead 0.588" 0.040 0.169 " 22 AWG NO
09-8862-1-05
09-8862-1-05
09-8862-1-05
Phosphor Bronze Electro Solder 0.560" 0.040 0.110 " 24 AWG NO
09-8862-1-03
09-8862-1-03
09-8862-1-03
Phosphor Bronze Gold 0.560" 0.040 0.110 " 24 AWG YES
09-8862-1-035
09-8862-1-035
09-8862-1-035
Phosphor Bronze Gold 0.560" 0.040 0.110 " 24 AWG YES
09-8639-1-044
09-8639-1-044
09-8639-1-044
Brass Bright Tin 0.235" 0.040 0.045 " 28 AWG YES

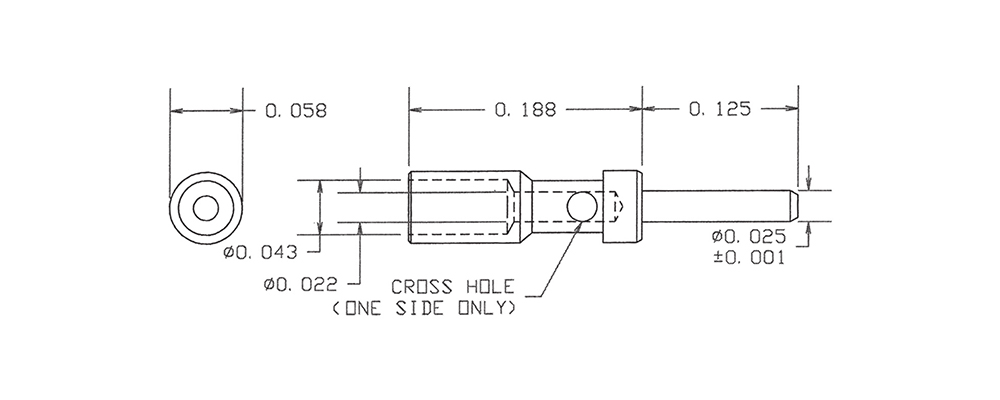

09-8106-1-05
09-8106-1-05
09-8106-1-05
Brass Electro Solder 0.313" 0.025 0.075 " 28 AWG NO
09-8087-1-04
09-8087-1-04
09-8087-1-04
Brass Electro-Tin 0.606" 0.077 0.169 " 22 AWG YES
09-8834-1-05
09-8834-1-05
09-8834-1-05
Brass Electro Solder 0.806" 0.080 0.169 " 22 AWG NO
09-0220-4-035
09-0220-4-035
09-0220-4-035
Brass Gold 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG YES

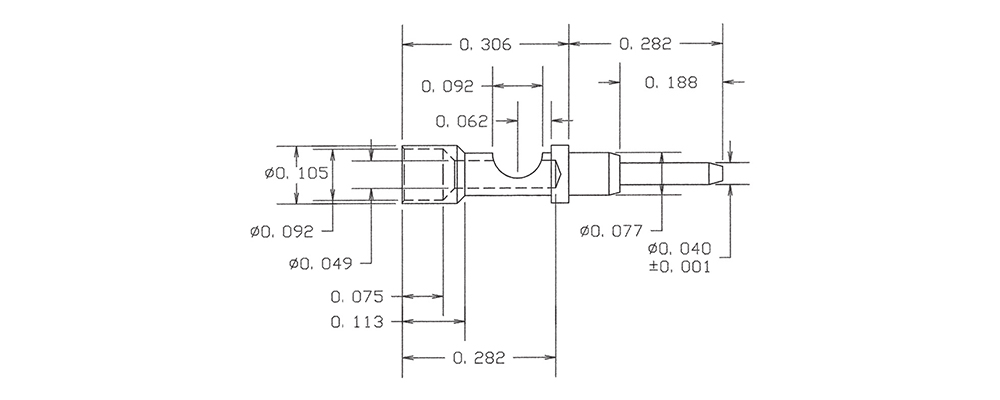

09-8534-1-03
09-8534-1-03
09-8534-1-03
Brass Gold 0.588" 0.040 0.169 " 22 AWG YES
09-0229-4-04
09-0229-4-04
09-0229-4-04
Brass Electro-Tin 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG YES
