Commercial
Non-Insulated
Terminals

Filter
10-530-2-095
10-530-2-095
10-530-2-095
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.159 Brass Hot Solder Dip NO
10-532-4-03
10-532-4-03
10-532-4-03
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Gold YES
10-349-3-044
10-349-3-044
10-349-3-044
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin YES
10-405-1-044
10-405-1-044
10-405-1-044
0.395" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
10-417-6-01
10-417-6-01
10-417-6-01
0.625" - - Swage Mount 0.234" 3/16 0.116 Brass Silver YES
10-511-3-01
10-511-3-01
10-511-3-01
0.807" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.116 Brass Silver YES
10-511-3-095
10-511-3-095
10-511-3-095
0.807" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.116 Brass Hot Solder Dip NO
10-541-4-044
10-541-4-044
10-541-4-044
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-434-4-044
10-434-4-044
10-434-4-044
0.433" - - Swage Mount 0.165" 1/8 0.189 Brass Bright Tin YES
10-434-4-01
10-434-4-01
10-434-4-01
0.433" - - Swage Mount 0.165" 1/8 0.189 Brass Silver YES

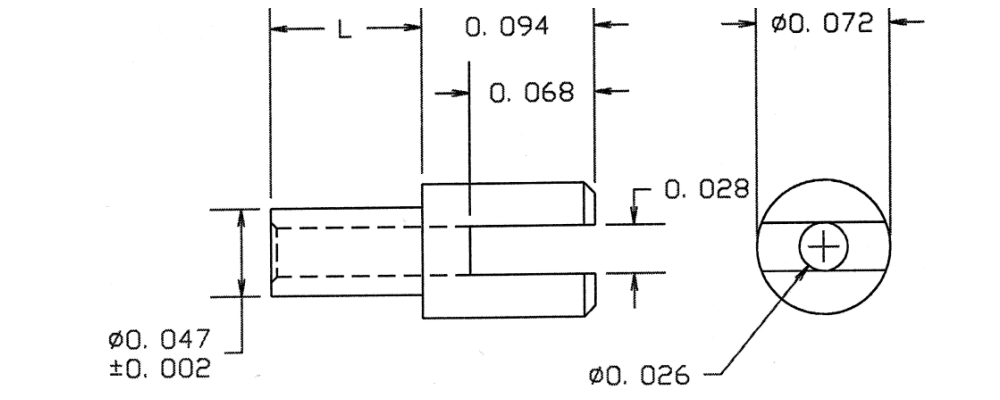

10-453-4-05
10-453-4-05
10-453-4-05
0.239" - - Swage Mount 0.145" 1/8 0.052 Brass Electro Solder NO
09-0209-2-088
09-0209-2-088
09-0209-2-088
0.264" - - Swage Mount 0.084" 1/16 0.041 Brass Bright Tin-Lead NO
10-240-5-095
10-240-5-095
10-240-5-095
0.555" - - Swage Mount 0.195" 5/32 0.116 Brass Hot Solder Dip NO
10-419-4-095
10-419-4-095
10-419-4-095
0.556" - SLOTTED/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Hot Solder Dip NO
09-0310-1-095
09-0310-1-095
09-0310-1-095
0.210" - - Swage Mount 0.054" 1/32 0.043 Brass Hot Solder Dip NO
09-0227-1-05
09-0227-1-05
09-0227-1-05
0.148" - - Swage Mount 0.053" 1/32 0.067 Brass Electro Solder NO
10-450-1-04
10-450-1-04
10-450-1-04
0.263" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-921-1-04
10-921-1-04
10-921-1-04
0.270" 0.045 - Swage Mount 0.062" 1/32 0.064 Brass Electro-Tin YES
10-712-1-03
10-712-1-03
10-712-1-03
0.719" - - 4-40 Screw - - CLEARANCE FOR #4 Screw Brass Gold YES
09-8563-1-088
09-8563-1-088
09-8563-1-088
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Bright Tin-Lead NO
