Commercial
Non-Insulated
Terminals

Filter
10-710-3-04
10-710-3-04
10-710-3-04
0.562" - DOUBLE TURRET/THREAD Swage Mount 0.125" 3/32 0.144 Brass Electro-Tin YES
10-8013-1-044
10-8013-1-044
10-8013-1-044
0.297" 0.040 - - - - - Brass Bright Tin YES
10-8024-1-03
10-8024-1-03
10-8024-1-03
0.448" 0.080 - Swage Mount 0.051" 1/32 0.094 Brass Gold YES
10-807-4-05
10-807-4-05
10-807-4-05
0.515" - - Swage Mount 0.172" 1/8 0.094 Brass Electro Solder NO
10-814-4-01
10-814-4-01
10-814-4-01
0.422" - - Swage Mount 0.172" 1/8 0.116 Brass Silver YES
10-824-2-04
10-824-2-04
10-824-2-04
0.634" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.094" 1/16 0.147 Brass Electro-Tin YES
10-834-2-035
10-834-2-035
10-834-2-035
0.469" 0.050 - Swage Mount 0.094" 1/16 0.064 Brass Gold YES
10-845-3-088
10-845-3-088
10-845-3-088
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
10-867-11-04
10-867-11-04
10-867-11-04
0.191" 0.030 - Swage Mount 0.037" 1/64 0.067 Brass Electro-Tin YES
10-890-3-03
10-890-3-03
10-890-3-03
0.395" 0.040 - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES
10-904-4-044
10-904-4-044
10-904-4-044
0.292" - - Swage Mount 0.156" 1/8 0.0635 Brass Bright Tin YES
10-919-2-088
10-919-2-088
10-919-2-088
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
10-935-4-035
10-935-4-035
10-935-4-035
0.378" 0.025 TURRET/PIN Swage Mount 0.145" 1/8 0.0625 Brass Gold YES
10-990-3-04
10-990-3-04
10-990-3-04
0.633" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
14-947-2-035
14-947-2-035
14-947-2-035
0.267" - - Swage Mount 0.094" 1/16 0.063 LEADED Red Brass Gold YES
10-403-3-01
10-403-3-01
10-403-3-01
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES

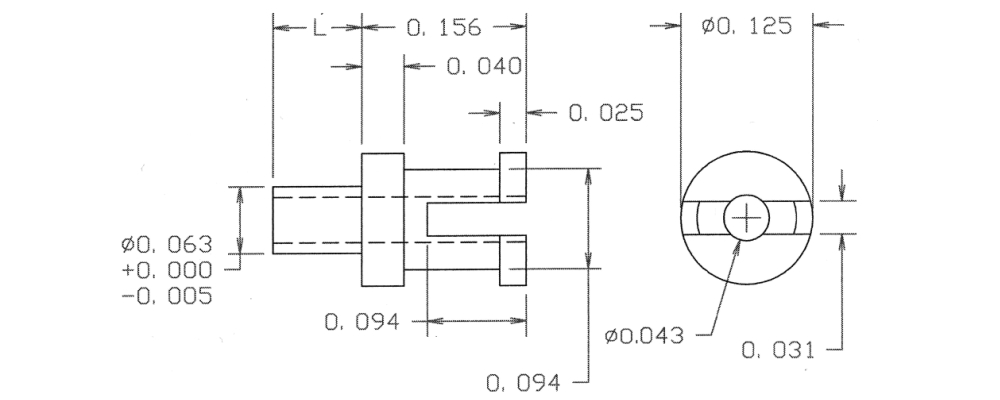

10-430-11-044
10-430-11-044
10-430-11-044
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Bright Tin YES
10-453-2-03
10-453-2-03
10-453-2-03
0.176" - - Swage Mount 0.082" 1/16 0.052 Brass Gold YES

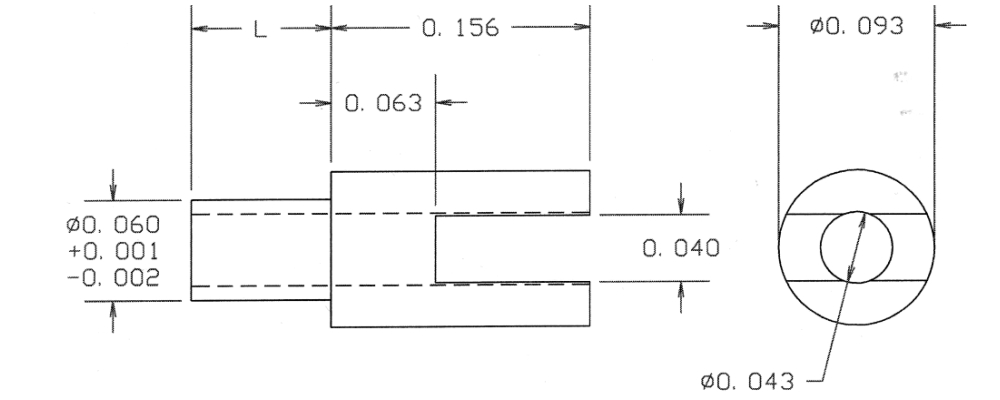

10-477-11-05
10-477-11-05
10-477-11-05
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Electro Solder NO

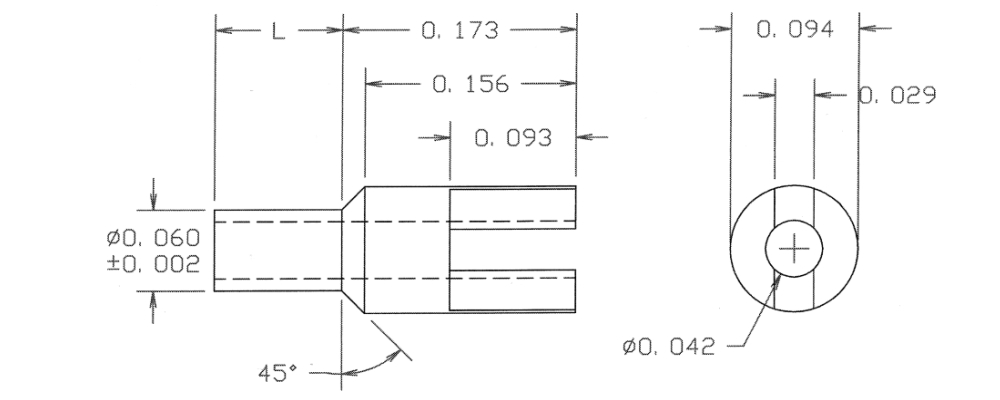

14-948-4-035
14-948-4-035
14-948-4-035
0.329" - - Swage Mount 0.156" 1/8 0.064 LEADED Red Brass Gold YES
