Non-Insulated
Banana Plugs

Part No	Mates With	Board Thickness	Mounting	Shank Length	Hole Size	Body Finish	Spring Finish
01-2258-2-03	Mini Jack	1/16	Swage Mount	0.094"	0.096	Gold	Gold
01-2258-2-01	Mini Jack	1/16	Swage Mount	0.094"	0.096	Silver	Silver
01-2251-4-044	Mini Jack	1/8	Swage Mount	0.165"	0.161	Bright Tin	Bright Tin
09-2122-1-02	Mini Jack	Up to 1/4	METRIC M2.5 x 0.45	0.276"	M2.5 x 0.45 METRIC THREAD	Nickel	Nickel
01-2251-4-03	Mini Jack	1/8	Swage Mount	0.165"	0.161	Gold	Gold
01-2258-4-02	Mini Jack	1/8	Swage Mount	0.156"	0.096	Nickel	Nickel
01-2379-1-03	Standard Jack	3/32	8-32	0.219"	8-32 THREAD	Gold	Gold
01-2379-1-044	Standard Jack	3/32	8-32	0.219"	8-32 THREAD	Bright Tin	Bright Tin
09-2122-1-044	Mini Jack	Up to 1/4	METRIC M2.5 x 0.45	0.276"	M2.5 x 0.45 METRIC THREAD	Bright Tin	Bright Tin

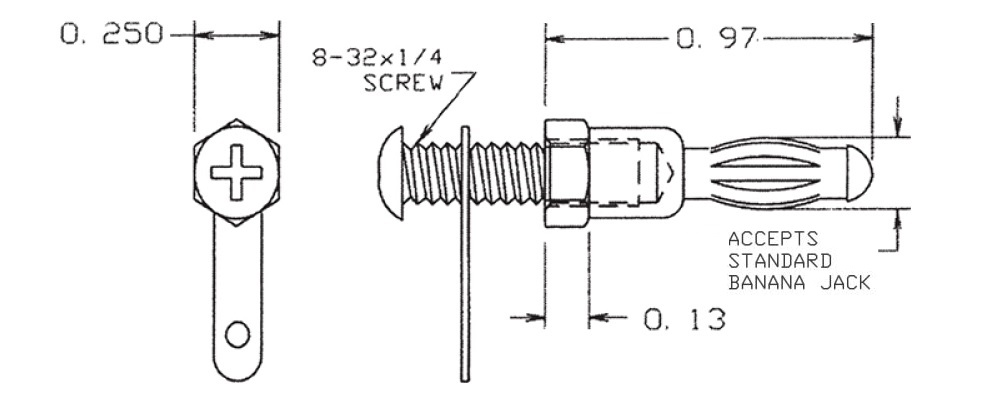

01-2532-1-02	Standard Jack	-	8-32 Screw	-	CLEARANCE FOR Screw #8	Nickel	Nickel
01-2312-1-03	Standard Jack	5/8	6-32 Nut	0.750"	0.154	Gold	Gold
01-2372-1-03	Standard Jack	Up to 1/4	6-32 Nut	0.375"	0.154	Gold	Gold
01-2302-1-03	Standard Jack	5/8	6-32 Nut	0.750"	0.154	Gold	Gold
01-2361-1-01	Standard Jack	Up to 3/8	6-32 Nut	0.500"	0.154	Silver	Silver
01-2382-1-02	Standard Jack	1/8	6-32 Nut	0.230"	0.154	Nickel	Nickel
01-2373-1-044	Standard Jack	Up to 3/8	6-32 Nut	0.500"	0.154	Bright Tin	Bright Tin
01-2380-1-02	Standard Jack	Up to 3/8	6-32 Nut	0.500"	0.154	Nickel	Nickel
01-2318-1-044	Standard Jack	Up to 3/8	6-32 Nut	0.500"	0.154	Bright Tin	Bright Tin
01-2311-1-044	Standard Jack	Up to 3/8	6-32 Nut	0.500"	0.154	Bright Tin	Bright Tin
01-2320-1-03	Standard Jack	-	-	-	-	Gold	Gold
